Nikon NPL-352 - Coordinate; Power Saving; Communications; Stakeout

5 Menu Key
138 Pulse Laser Station NPL-302 Series Instruction Manual

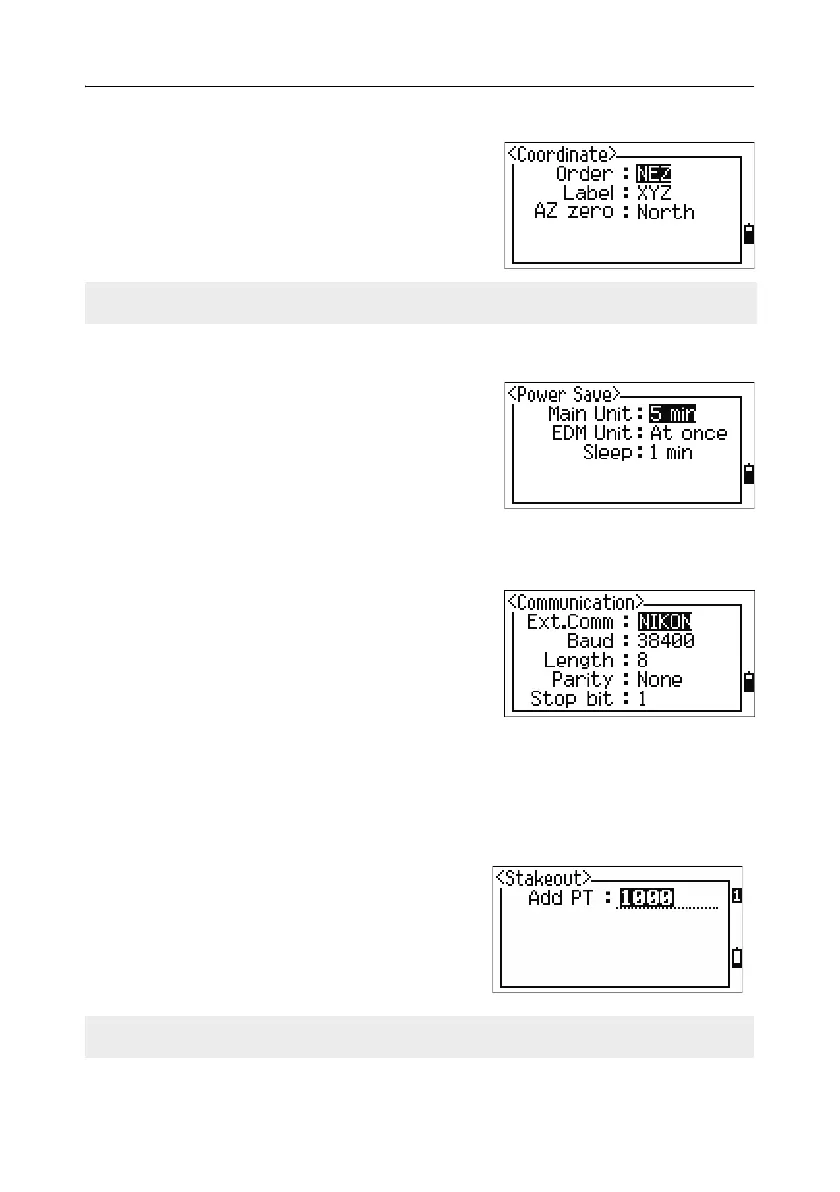

Coordinate 51.3
To open the Coordinate menu, press [3] or select
Coord. in the Settings menu.
Order NEZ/ENZ
Label XYZ/YXZ/NEZ(ENZ)
AZ North/South
Power saving 51.4
To open the Power Save menu, press [4] or select
PwrSave in the Settings menu.
Main Unit OFF/5min/10min/30min
EDM Unit OFF/At Once/0.1min/
0.5min/3min/10min
Sleep OFF/1min/3min/5min
Communications 51.5
To open the Communication menu, press [5] or
select
Comm. in the Settings menu.
Ext.Comm NIKON/SET
Baud 1200/2400/4800/9600/
19200/38400bps
Length 7/8
Parity EVEN/ODD/NONE
Stop bit 1/2
Stakeout 51.6
Press [6] or select Stakeout in the Settings
menu to open the Stakeout menu.
Add PT Integer between 1 and
999,999
The Order and AZ job settings cannot be changed once a job is created.
This field sets the default point number to record observed data in stakeout.
