4 Applications
114 Pulse Laser Station NPL-302 Series Instruction Manual
Extending the slope distance 40.1

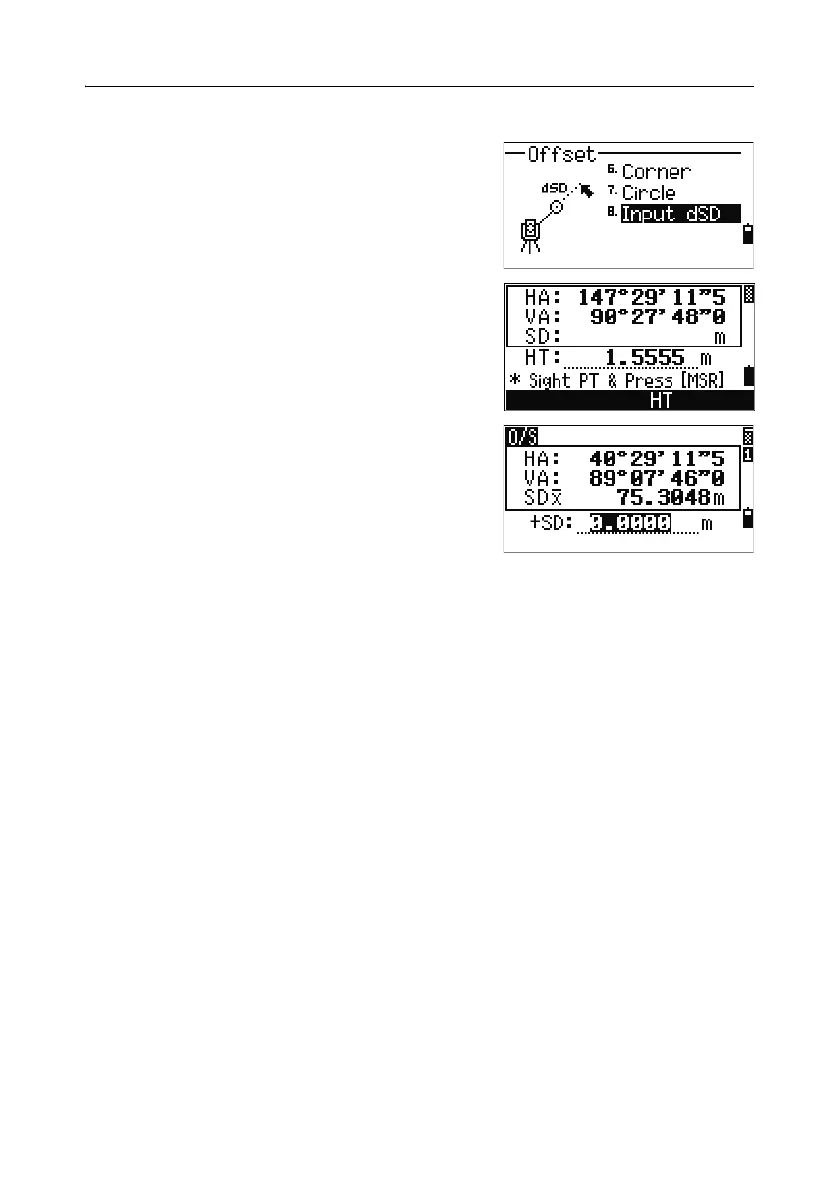

1. To enter the function for extending the slope
distance, press
[8] or select Input dSD in the
Offset menu.
If you have not taken a distance measurement
before entering this function, a temporary
measurement screen appears.
2. Enter the slope distance that you need to add
or subtract. You can enter any value from
–99.990 through +99.990 m (–328.000
through +328.000 ft).
3. To record the point, press [ENT].
Sample records
SS,83,1.5000,77.0518,62.08380,81.06510,11:51:48,
CO,O/S MSR:83 1.5555 76.5518 62.08380 81.06510
