Specifications 7
Pulse Laser Station NPL-302 Series Instruction Manual 183
External Device Connector 7.3
This connector can be used to connect to an external power source or to
communicate with an external device.
Before using the external device connector, make sure that the external device
meets the specifications below.
C
Caution – Except for the connection shown in Figure 8.1 on page 186, use of
this connector is at your own risk.
C
Caution – Use only the male connectors specified above. Using other
connectors will damage the instrument.

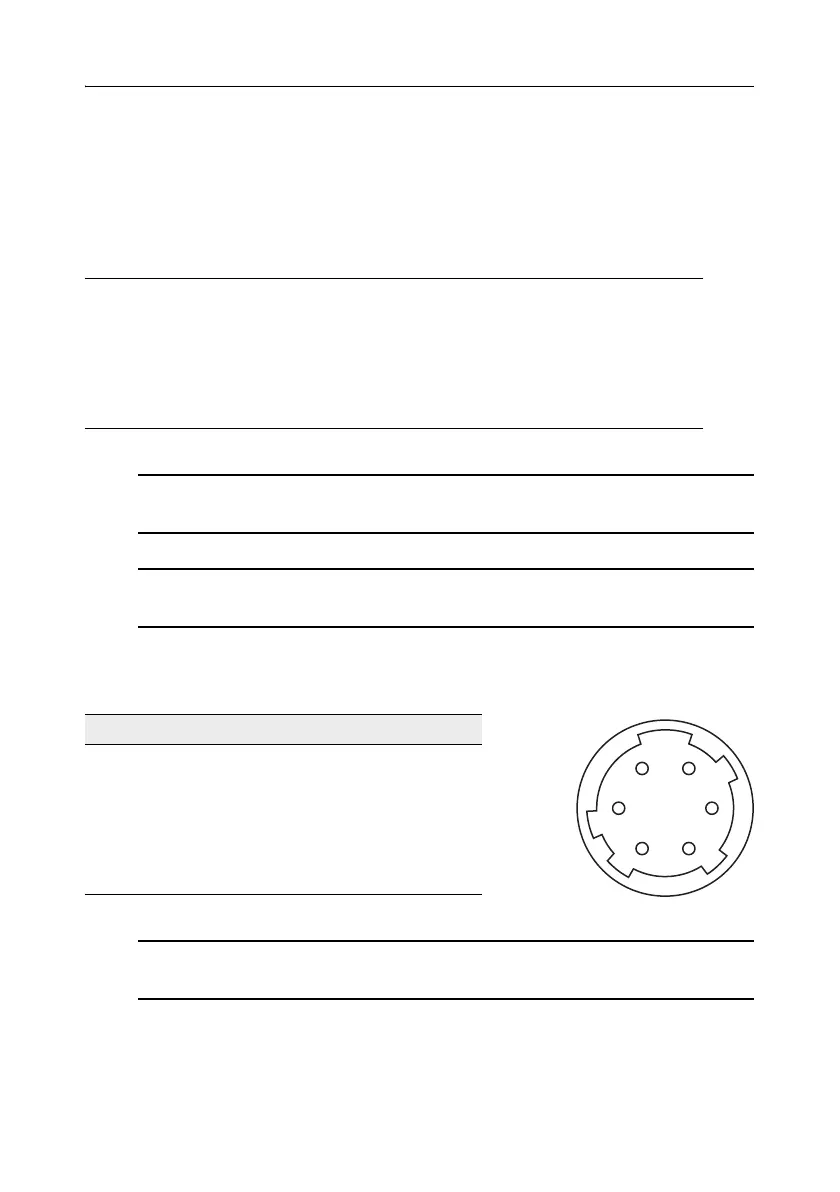

The external device connector is a Hirose HR 10A-7R-6S female connector. The
pinouts for connecting it to an external device connector are shown below:
C
Caution – Use only the pin connections shown above. Using other
connections will damage the instrument.
Input voltage 7.2 V to 11 V DC
System RS-232C
Signal level ±9 V standard
Maximum baud rate 38400 bps asynchronous
Compatible male connector Hirose HR10A-7P-6P or HR10-7P-6P
Pin Signal Description
1 RxD Receive data (Input)
2 TxD Send data (Output)
3+Power
5–Ground
4, 6 No connection
HRS
16
25
34
