4 Applications
88 Pulse Laser Station NPL-302 Series Instruction Manual

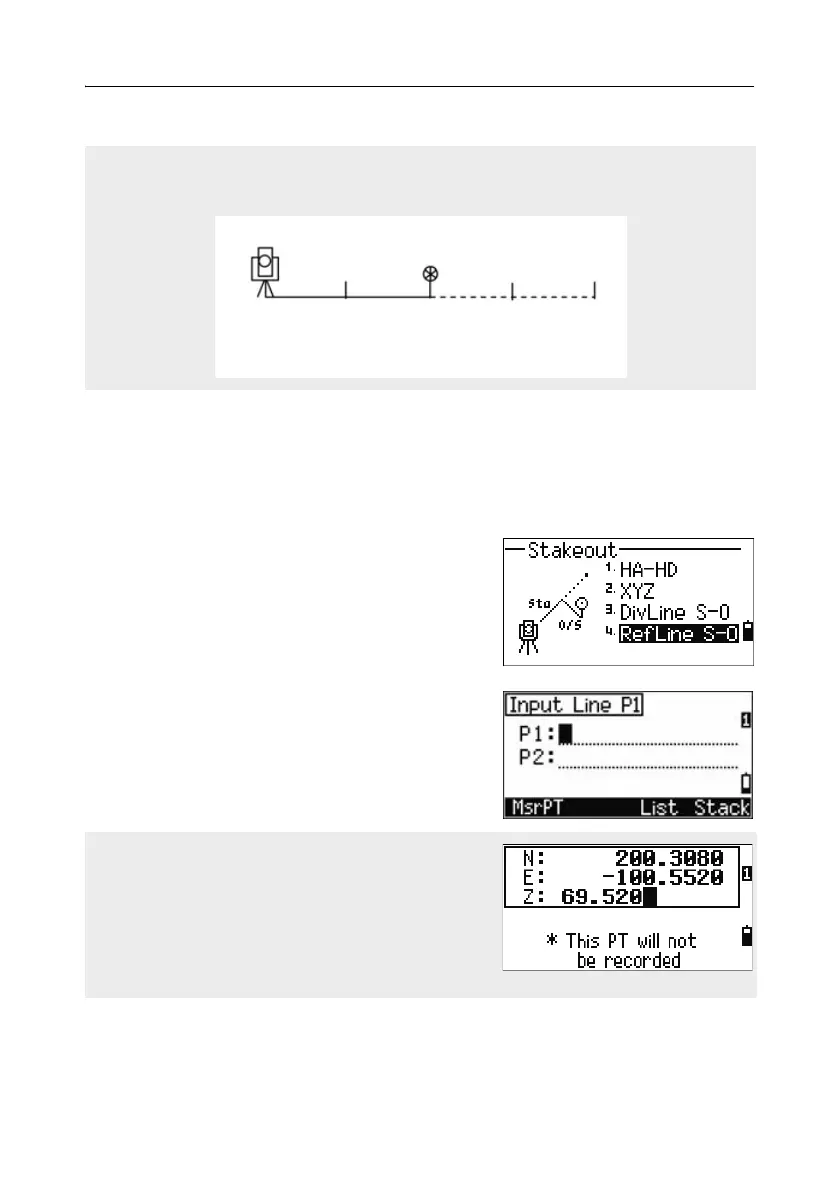

RefLine S-O 40.1
This function allows you to stake out a point based on the Sta, O/S, and dZ to a
specified line.
1. Press [4] or select
RefLine S-O in the Stakeout menu.
2. Enter the first point (P1) of the line.
For example, if you measure to the end point at 100 m from the instrument and set
the span total to 2, the following four points are calculated and can be staked:
If you press [ENT] without entering a PT name, you
can enter temporary coordinates which are not
recorded in the job.
Alternatively, press the MSR softkey to measure a
point.
<1/2>
HD
<2/2> <3/2> <4/2>
50 m 100 m 150 m 200 m
