Full Color Card Printer
6

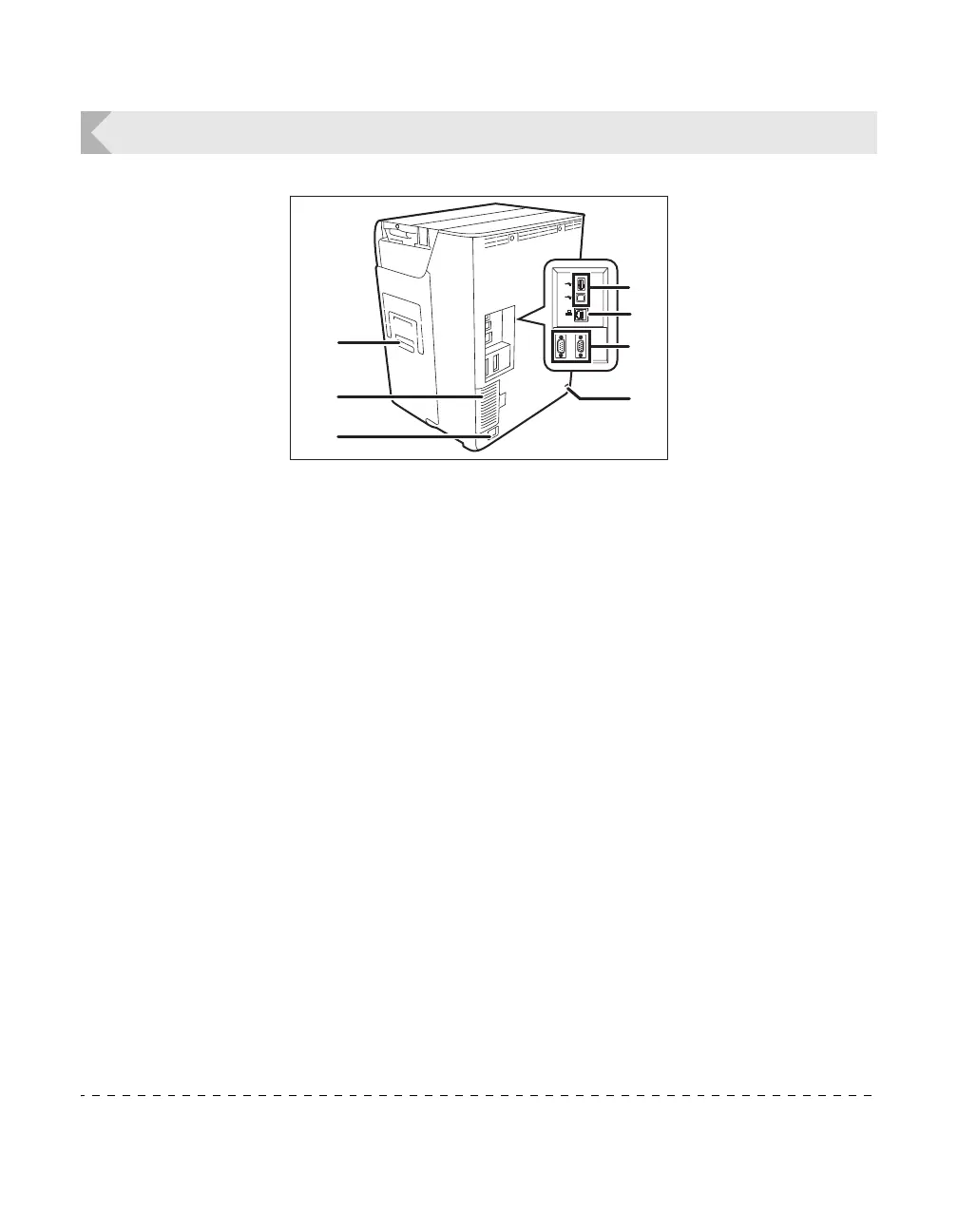

Rear Side of the Printer
*1 Do not connect other than the specified optional units. Connecting these units could damage them.
a Card Ejection Slot (Right)
Ejects correctly printed cards and cards with
errors.
Card Ejection Slot (Left) or (Right) can be
selected.
The factory default is set so cards with errors
are output from Card Ejection Slot (Right).
→See "Switching the Card Ejection Slot" on page 46
for information about switching the card ejection slot.
b USB Cable Port
USB (A terminal) ×1 and USB (B terminal) ×1.
Connect the B terminal and the computer using
the provided USB cable. Additionally, connect
the optional enhancement unit using the A
terminal.
→See the "Easy Setup Guide" for instructions on
connecting the cable.
c LAN Cable Port
Connect to the network using the LAN Cable.
→See the "Easy Setup Guide" for instructions on
connecting the cable.
d Port for Enhancing Function
Used for enhancing function
*1
e Security Cable Slot
Use the Security Cable Slot to prevent theft of
the printer.
→See "Preventing Theft and Unauthorized Usage" on
page 53 for instructions on using the Security Cable
Slot.
f Power Cable Port
Used to connect the Power Cable.
→See the "Easy Setup Guide" for instructions on
connecting the cable.
g Filter
Filters out airborne dirt and other foreign matter,
preventing this entering the printer. The filter
can be removed for cleaning.
→See "Filter Cleaning" on page 66 for filter cleaning
instructions.
a
b
c
e
g
f
d
(OPTION)
(PC)
(10/100)
RS-232C(PC) RS-232C(OPTION)
To Next Page
