Full Color Card Printer
4
Part Names and Descriptions

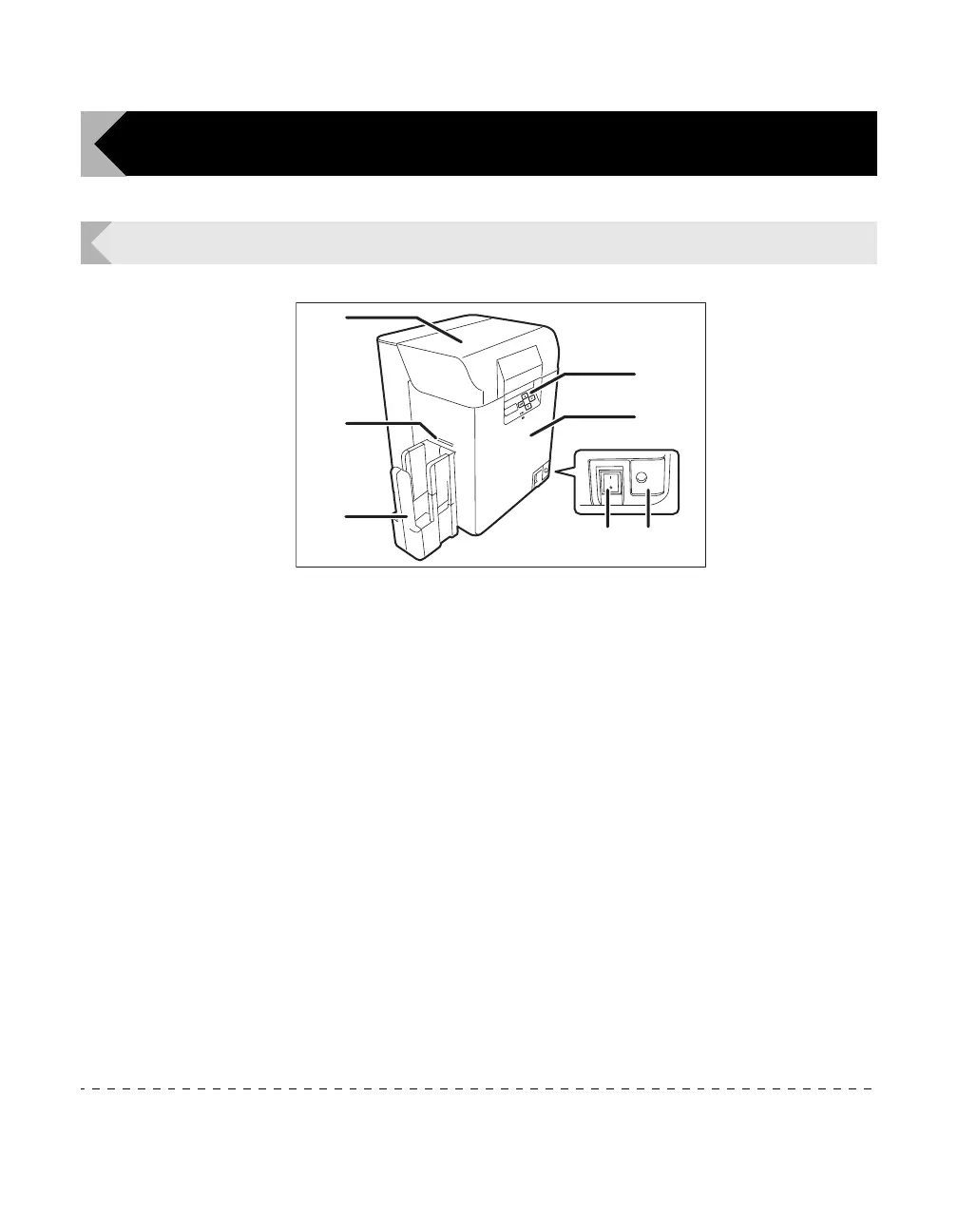

Front Side of the Printer
*1 When using CR-80 cards (size: 3.375" × 2.125" (86 mm × 54 mm), thickness: 0.03" (0.76 mm)).
a To p C over
Open when loading cards or cleaning the
feeding roller.
b Operation Panel
Includes the keys, the LCD Panel, and LED
indicator for operating the printer.
→See "Operation Panel" on page 8 for detailed
Operation Panel part names and descriptions.
c Front Cover
Open when changing ink ribbons and transfer
film, and when cleaning the Cleaning Roller.
→See "Front Cover" on page 7 for information about
the names of parts inside the cover and their
descriptions.
→See "Changing the Ink Ribbon and Transfer Film" on
page 16 for details about changing the Ink Ribbon
Cartridge.
→See "Cleaning" on page 54 for instructions on
cleaning the Cleaning Roller.
d Open Cover Switch
Front cover opening switch. Press to open the
Front Cover.
e Power Switch
Turns the power on and off.
→See "Turning On and Off the Printer" on page 9 for
instructions on turning the power on and off.
f Card Stacker
A maximum of 250 cards
*1
can be stacked by
attaching the Card Ejection Slot (Left). Without
good reason, there is no need to remove the
Card Stacker.
→See the "Easy Setup Guide" for instructions on
attaching.
g Card Ejection Slot (Left)
Ejects correctly printed cards and cards with
errors. You can select between Card Ejection
Slot (Left) and (Right) for card ejection.
The factory default is set so both correctly
printed cards are output from Card Ejection Slot
(Left).
→See "Switching the Card Ejection Slot" on page 46
for information about switching the card ejection slot.
a
g
f
b
de
c
