Part Names and Descriptions
5

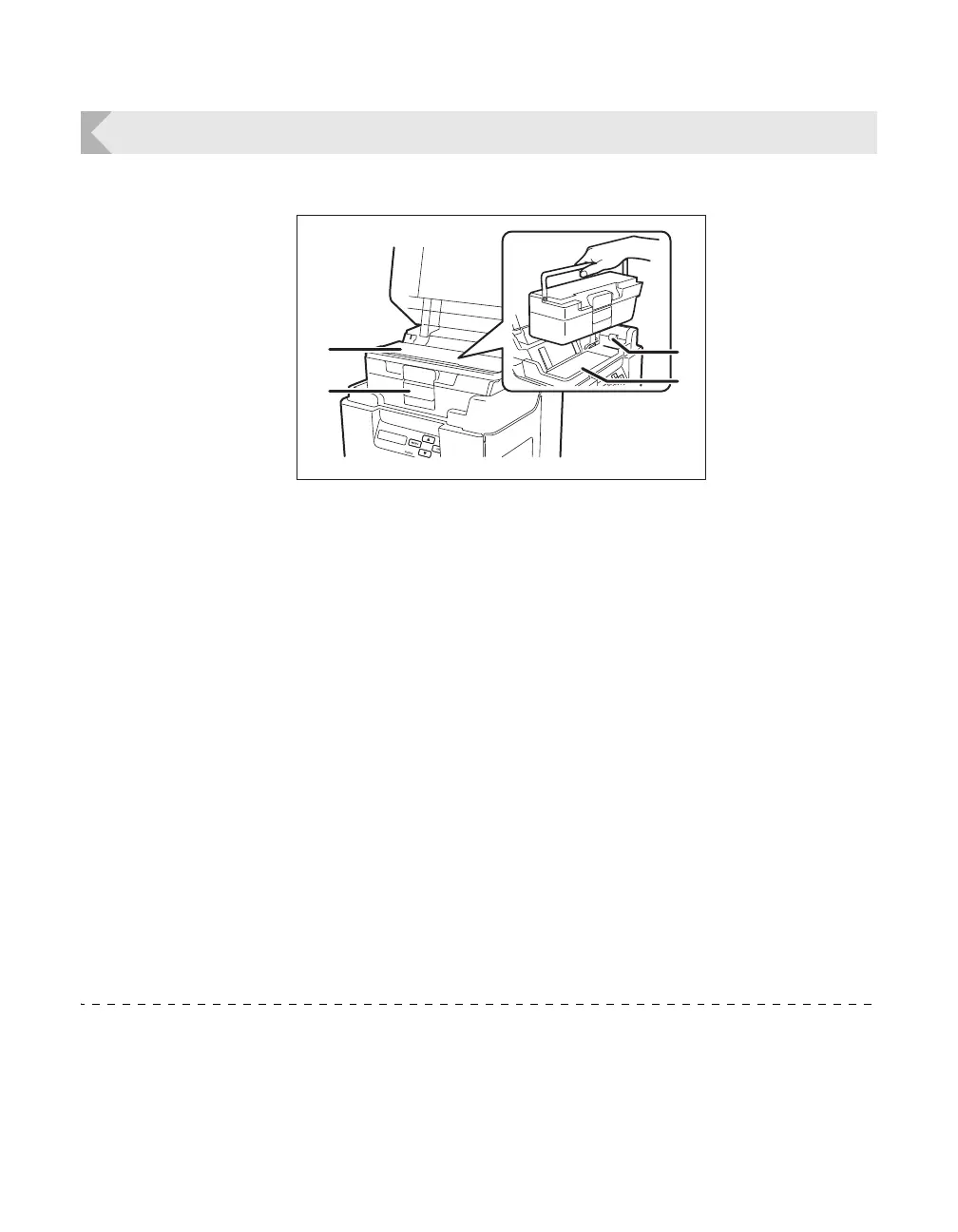

Inside the Top Cover
Interior of the Top Cover.
*1 When using CR-80 cards (size: 3.375" × 2.125" (86 mm × 54 mm), thickness: 0.03" (0.76 mm)).
a Card Case
Up to 250
*1
cards can be loaded at one time.
You can adjust the gate gap to match the
thickness of the fed cards. The factory default is
set so the gap corresponds to feeding of cards
of 0.76 mm in thickness.
→See "Loading Cards" on page 10 for instructions on
loading cards.
→See "Cards" on page 82 for details about which
cards you can use.
→See "Adjusting the Feed Gate Depending on Card
Thickness" on page 42 for instructions on adjusting
the gate gap.
b Feeding Roller
Pulls loaded cards into the printer.
→See "Cleaning the Feeding Roller" on page 59 for
feeding roller cleaning instructions.
c Top Cover
Open when cards are jammed or similar.
→See "When a Card is Jammed..." on page 73 for
instructions on how to eject jammed cards.
d Card Case Lock
When loading cards, pull the lock to open the
card case.
→See "Loading Cards" on page 10 for instructions on
loading cards.
a
d
b
c
To Next Page
