Part Names and Descriptions
7
Front Cover

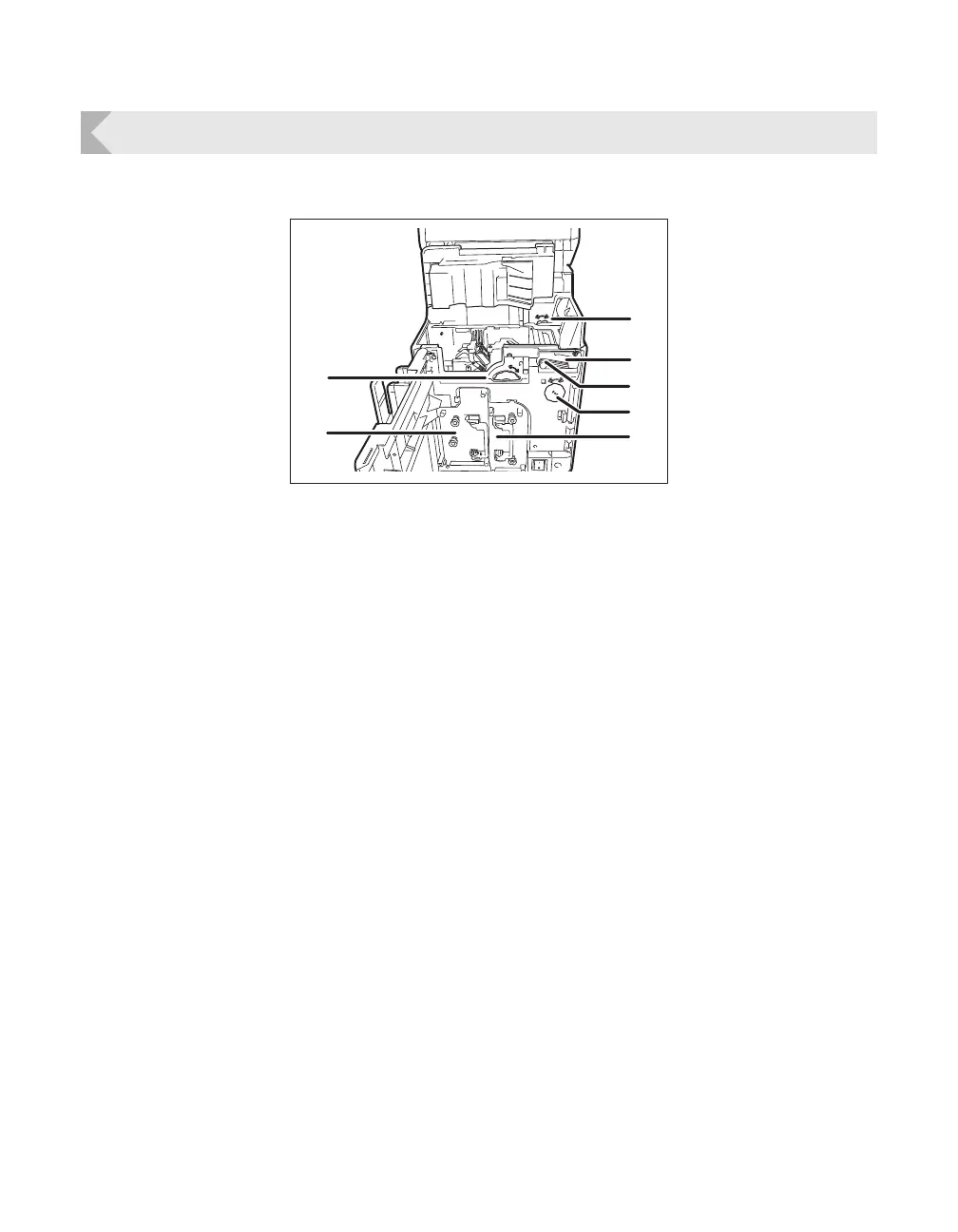

Interior of the Front Cover.
a Card Feeding Knob
Rotating the dial to the left or right ejects cards
jammed in the secondary transfer section from
the Card Ejection Slot (Left) or (Right).
→See "When a Card is Jammed..." on page 73 for
instructions on how to eject jammed cards.
b Reverse Feeding Knob
Rotating the dial to the left or right ejects cards
jammed in the card feed slot and reverse
section.
→See "When a Card is Jammed..." on page 73 for
instructions on how to eject jammed cards.
c Cleaning Roller
Removes dirt and other foreign matter stuck to
the cards.
→See "Cleaning the Cleaning Roller" on page 57 for
cleaning instructions.
d Cleaning Tape Cassette
Remove when replacing the Cleaning Tape.
→See "Cleaning Tape Replacement" on page 22 for
how to change the Cleaning Tape.
e Reverse Knob
Rotate the knob to the left to change the
direction of the cards in the reverse section.
→See "When a Card is Jammed..." on page 73 for
instructions on how to change the direction of cards in
the reverse section.
f Ink Ribbon Cassette
Ink Ribbon Cassette.
→See "Changing the Ink Ribbon and Transfer Film" on
page 16 for details about changing the Ink Ribbon.
→See "Ink Ribbon/Transfer Film" on page 81 for
details about which Ink Ribbon you can use.
g Transfer Film Cassette
Transfer Film Cassette.
→See "Changing the Ink Ribbon and Transfer Film" on
page 16 for details about changing the Transfer Film.
→See "Ink Ribbon/Transfer Film" on page 81 for
details about which Transfer Film you can use.
