6-2 Operation
6.4 Installing the Dispensing Valve
To install the dispensing valve, slide the dovetail bracket (included with the dispensing valve) into the
valve mounting bracket on the Z-axis face plate. Secure by turning the lever on the valve mounting
bracket to the upward position. Refer to the applicable dispensing valve manual for additional
information.
6.4.1 Valve Pneumatic and Electrical Connections
Valve pneumatic and electrical connections are shown in Figure 6-1 and Figure 6-2. Refer to the manual
for your particular dispensing valve for additional information.
Item Description Item Description
1 Fluid Air Pressure (Clear) 3 DV-Series Valve
2 Valve Electrical Connection

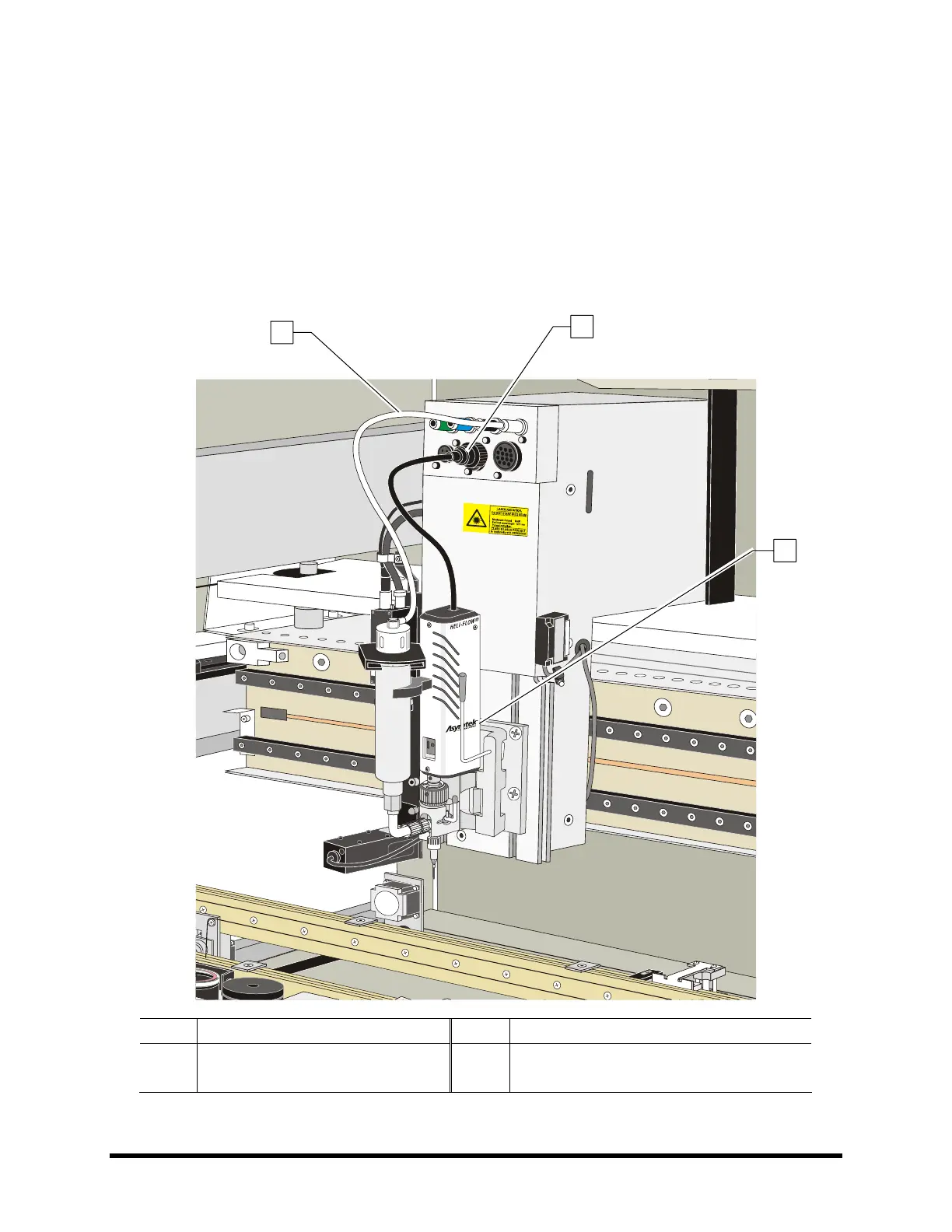

Figure 6-1 Valve Pneumatic and Electrical Connections (DV-8000 shown)
1
2
3
