9-8 Parts Replacement
9.8 Replacing the Camera Lens
CAUTION! Except for lens replacement and lighting adjustments, all other configuration and
adjustments should only be performed by a trained service technician.
To remove and replace the camera lens:
1. Remove the lens by turning the lens tube counterclockwise (
15HFigure 9-3).
2. Screw on the replacement lens by turning the lens tube clockwise.
Item Description
1 Camera
2 Lens Tube

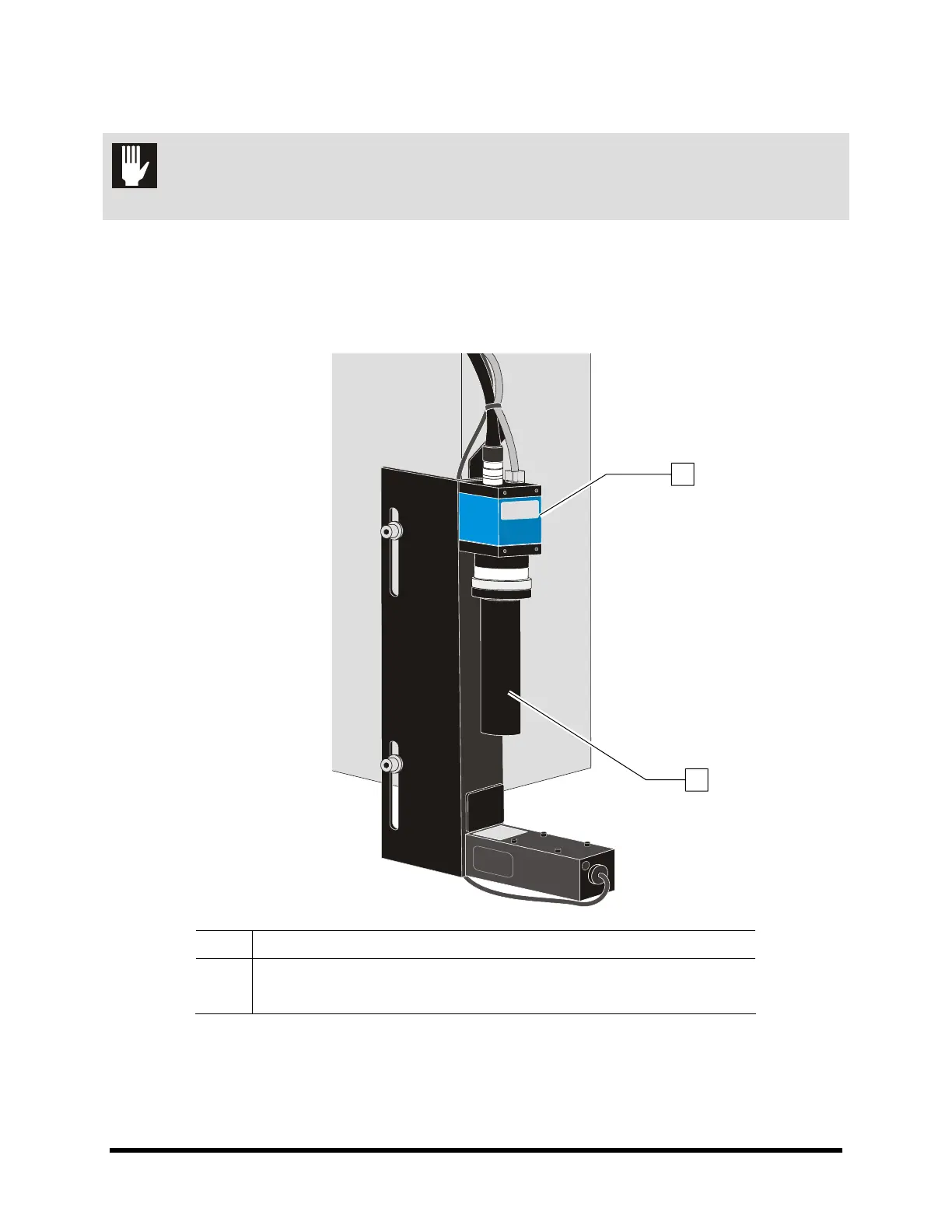

Figure 9-3 Camera Lens Replacement
2
1
