B-2 Appendix B - Block Diagrams
B.3 Power Manager Connections
Item Name Description
1 AC1 Unswitched
Supplies AC power to the computer
2 AC3 EMO Switched
Supplies AC power to the servo power supply
3 AC4 EMO Switched
Supplies AC power to the USB power supply
4 AC5 EMO Switched
(spare)
5 AC6 EMO Switched
(spare)
6
AC7 EMO Switched
Conveyor Power
Supplies power to the conveyor module CV1
7
AC8 EMO Switched
Conveyor Power
Supplies power to the optional conveyor module CV2
8 Conveyor Power Reset
Resets the circuit breaker to the AC outlet
9 Spare +24 VDC
(spare)
10 Power Controls
Connects to the Start, Stop, and EMO power controls
11 DC Power Status
Provides machine power status to the main PWA electronics
12 +24 VDC
Supplies DC power to the terminal block located on the lower e-pan
13 Rear EMO
Connect to the rear EMO switch
14 Vent Air Switch
Connects to the vent air switch (bypassed in default configuration)

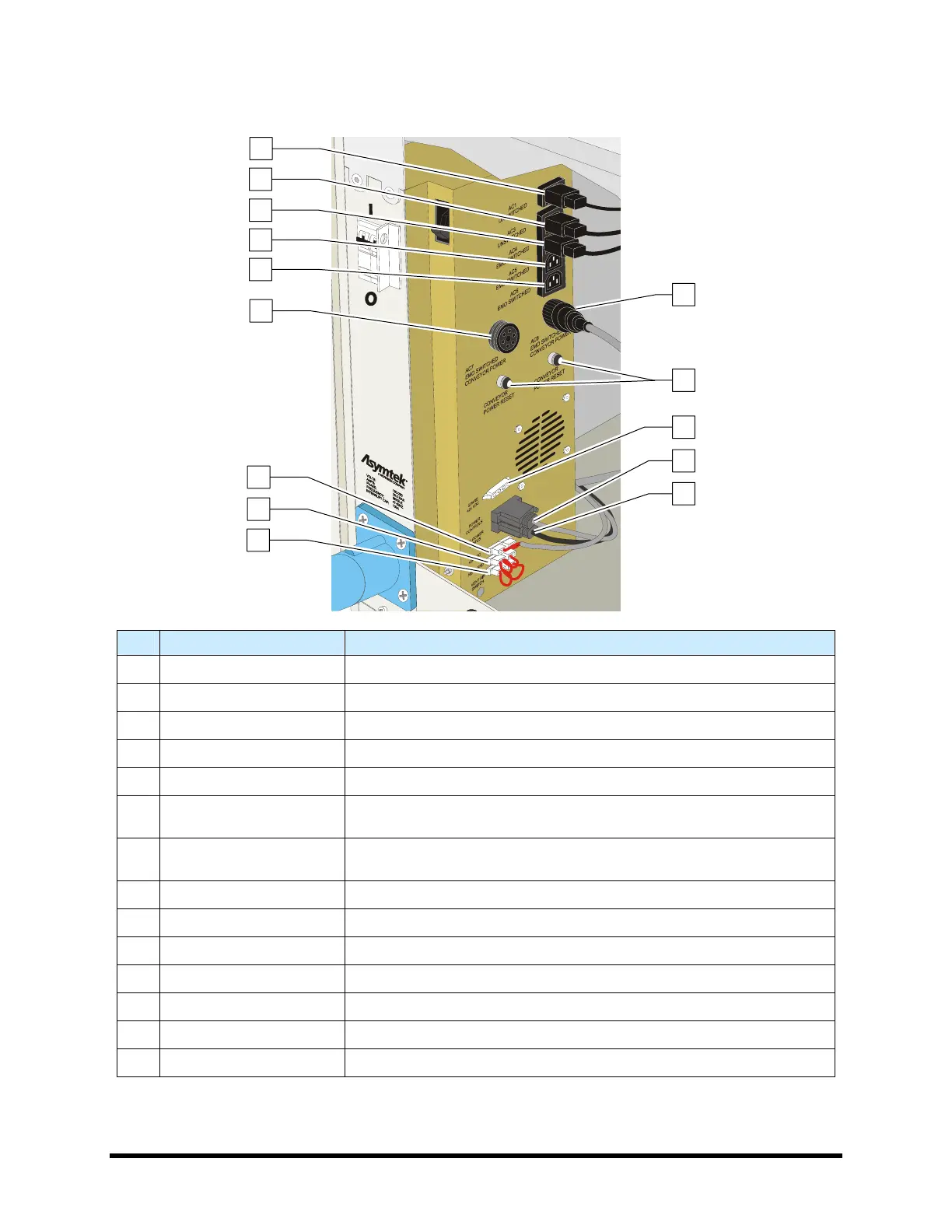

Figure B-1 Power Manager Connections
2
3
4
5
1
7
6
8
9
10
11
12
13
14
