3-12 Installation
3.10 Installing the Light Beacon
1. Remove the two screws holding the top panel in place.
2. Open the top panel.
3. Feed the electrical wiring of the light beacon through the top of the light beacon base.
4. Attach the light beacon to the base using the supplied set screws.
5. Insert the light beacon assembly in the top back right corner of the dispensing system.
6. Tighten the screws.
7. Make the beacon electrical connections.
8. Close the top panel, and reinstall and tighten the screws that hold the top panel in place.

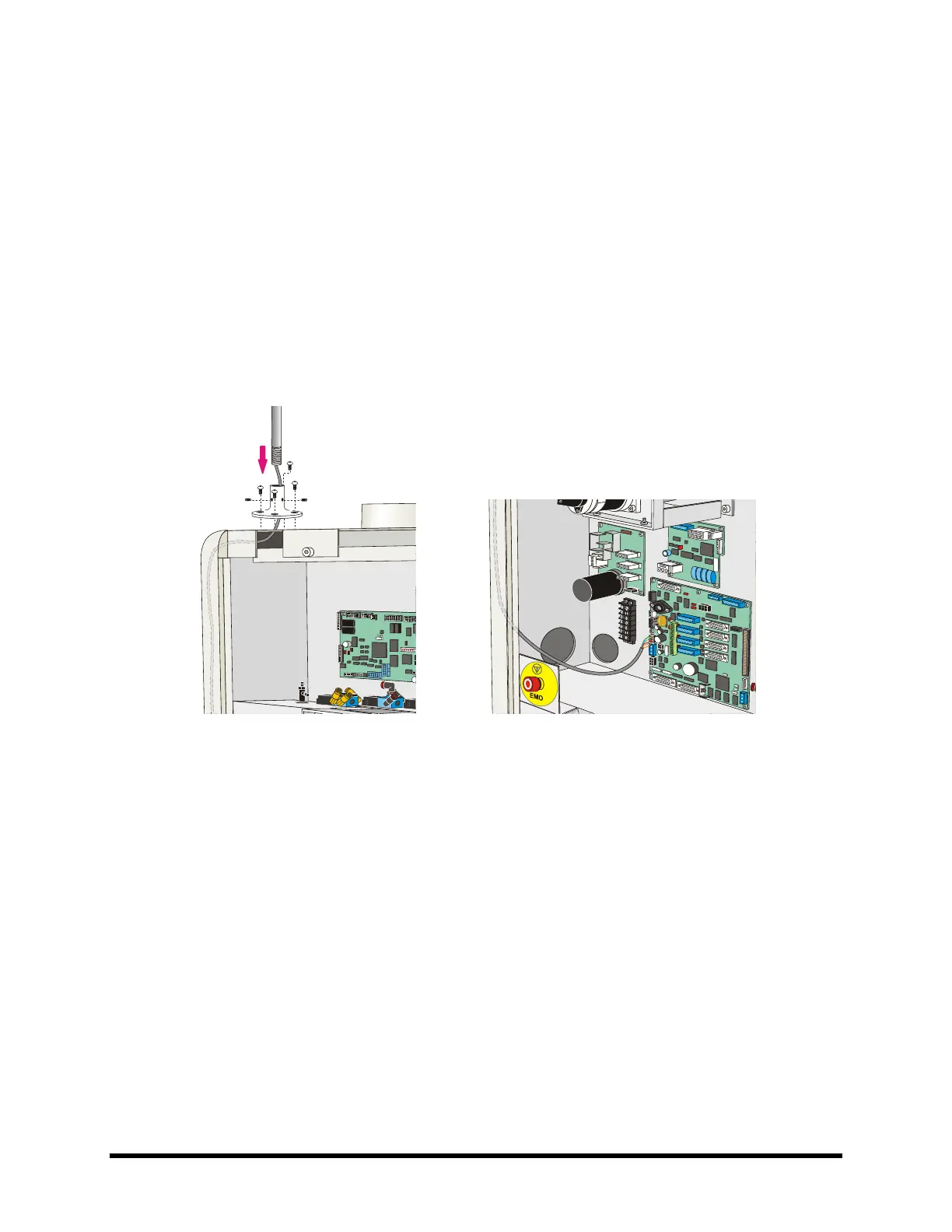

Figure 3-15 Installing the Light Beacon
3.11 Installing the Laptop Computer
1. Remove the laptop computer from its packaging.
2. Power on the laptop computer.
! The laptop computer is shipped from the factory fully charged.
3. Open Windows Explorer.
4. Follow the steps below to verify the serial number of the dispensing system and the laptop
computer are the same.
a. Locate C:\FMXP\SNXXXXX.ACL (
Figure 3-16).
b. Compare the serial number located in the name of the ACL file with the serial number on
the dispensing system (see
Figure 3-17).
! If the numbers are not the same, contact Asymtek Technical Support.
