6-8 Operation
3. In the Setup Valve Offsets dialog box, make sure Valve 1 is selected.
4. Click on
Run to End.
! A Teach Window opens.
5. Follow the on-screen prompts. Click on
Help if you have questions.
! The Teach Window content and appearance can vary depending on your system
configuration.
! When the task has been completed, a check mark appears next to the task.
6. Repeat Steps
4 and 5 for the other tasks listed in the dialog box (as desired).
"NOTE Any tasks not applicable to your system configuration will be skipped.
7. When setup tasks are complete, click
End in the Setup Valve Offsets dialog box.

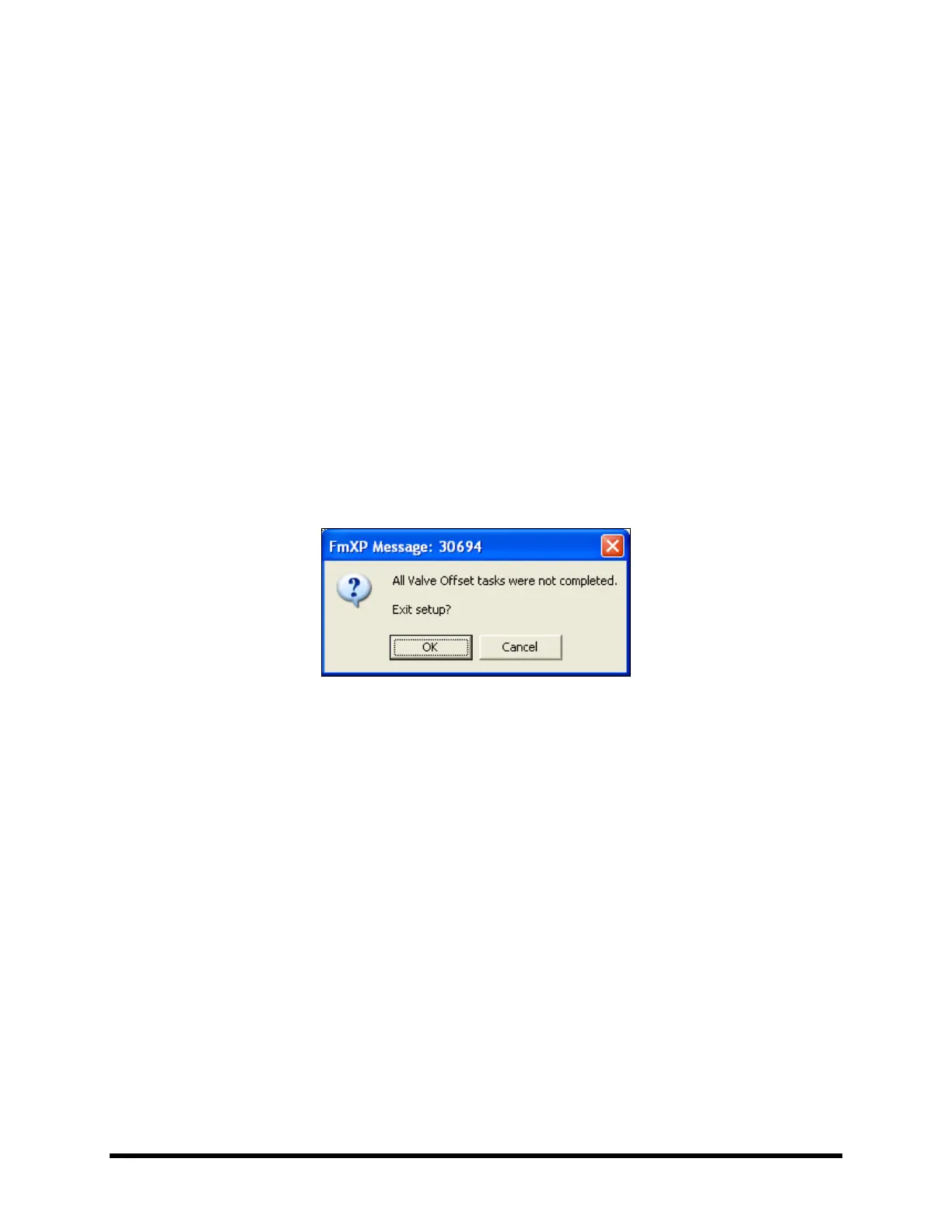

" NOTE If you end the routine prematurely, you will receive an error message similar to
the one shown in
Figure 6-7. Click on OK to exit the routine and save the
completed tasks or click on
Cancel to continue.
Figure 6-7 FmXP Error Message 30694
6.6.2 Safe Z-Height
Safe Z-Height is determined by choosing a height that ensures the needle, height sensor, or any part of the
dispensing head does not collide with any obstacles while traveling around the dispensing area. Safe
Z-Height is the height below which the tip of dispensing head cannot go when moving from one set of
coordinates to another during operation. This value is taught within the Valve Offsets procedure, but can
be taught independently if needed as follows:
To set the Safe Z-Height:
1. In the FmXP Main Window, click on
Run a Program.
! The Production Window opens.
2. In the Production Window, click on the
Setup button.
