4-14 Power-Up and Testing
4.10.4 Light Beacon
Perform the following procedures to check function of the Light Beacon.
To test the Light Beacon:
1. Close the dispensing system hood, make sure the EMO is deactivated, and press the green
ON (l) button on the front panel.
! The green beacon light should be ON.
2. Open the hood.
! The yellow beacon light should come ON and the green beacon light should go OFF.
3. Close the dispensing system hood.
! The green beacon light should come ON and the yellow beacon light should go OFF.
4. In the FmXP Main Window, click on
Tools.
5. In the Tools Window, click on
I/O Test.
6. Click on
Dispenser.
! The I/O Test Dialog screen opens.
7. Locate the tab (
Figure 4-10) with the beacon color outputs (BEACON_YELLOW, etc.).
8. Make sure the
SOFTWARE_ACTIVE bit is ON (l). If not, the beacon lights will not toggle.

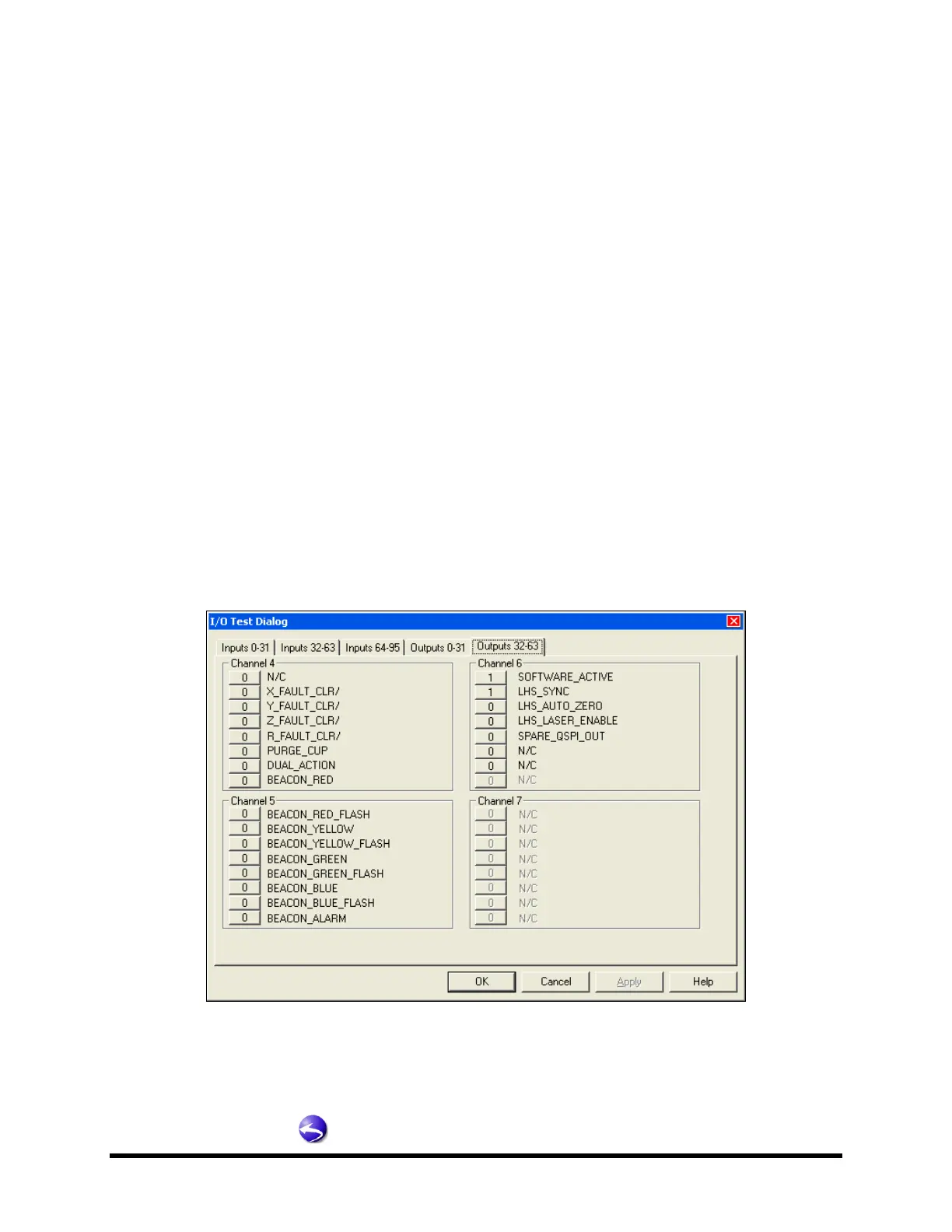

Figure 4-10 Dispenser I/O (Outputs 32-63)
9. Toggle the button next to the desired output ON (l) and OFF (0) to test the beacon signal.
10. Click on
OK to return to the Tools Window.
11. Click on
Main to return to the Main Window.
