3.9 Setting Up the Service Station
The Service Station consists of both the weigh station and purge station.
1. Place the scale lid, cup, pedestal and breeze shield on the weigh station (
Figure 3-13).

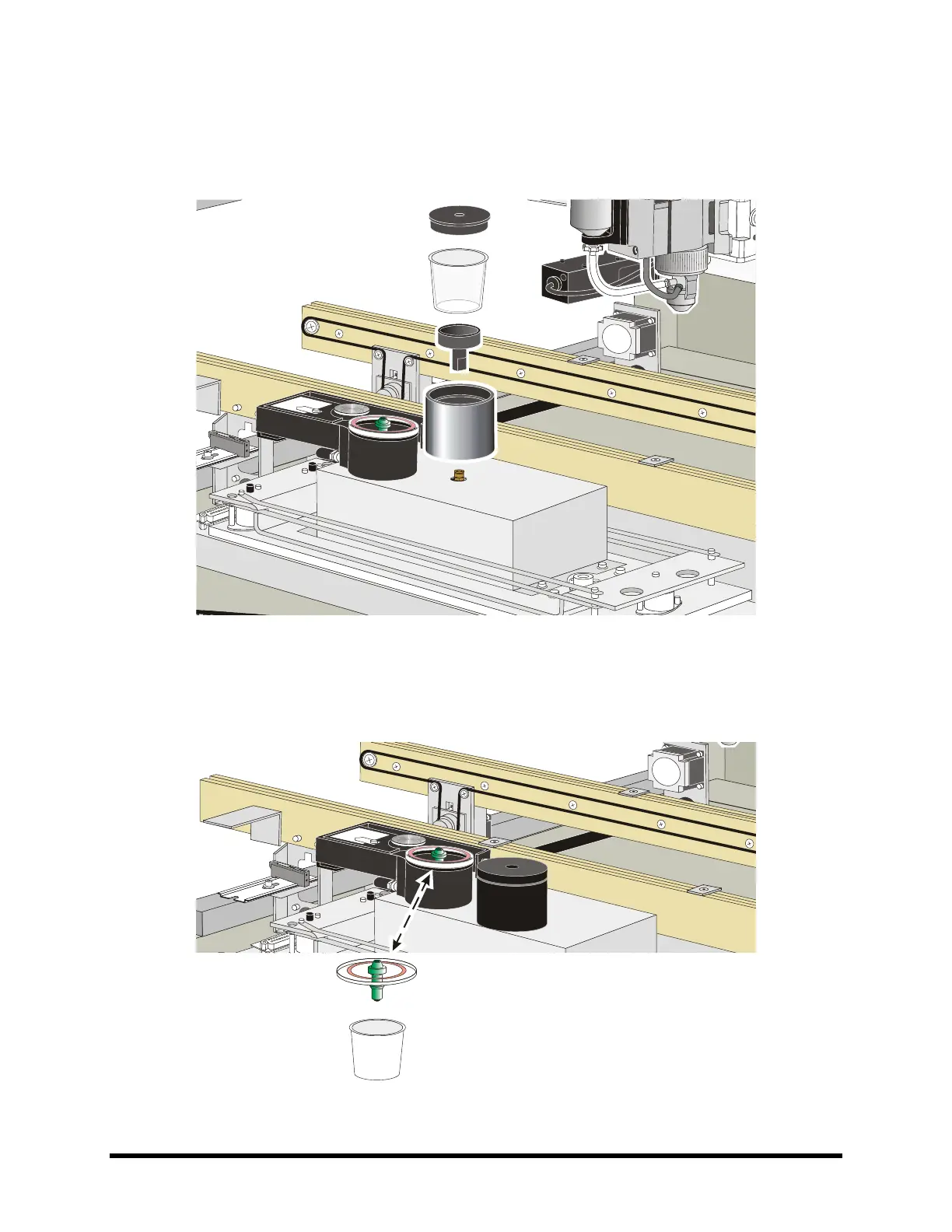

Figure 3-13 Setting up the Weigh Station
2. Place the purge cup inside of the purge station (Figure 3-14).
3. Replace the purge station lid.
Figure 3-14 Purge Station
