3-8 Installation
3.7 Leveling the Dispensing System
WARNING! CAUTION!
This procedure should only be performed by a trained service technician. The
system should be shutdown for service before performing this procedure. Refer
to 2.11 Service Shutdown.
1. Place the box level on the conveyor rail along the X-axis (Figure 3-8).
2. Observe the position of the bubble within the level’s window.
! The bubble should be centered, indicating the dispensing system is level from
side-to-side.

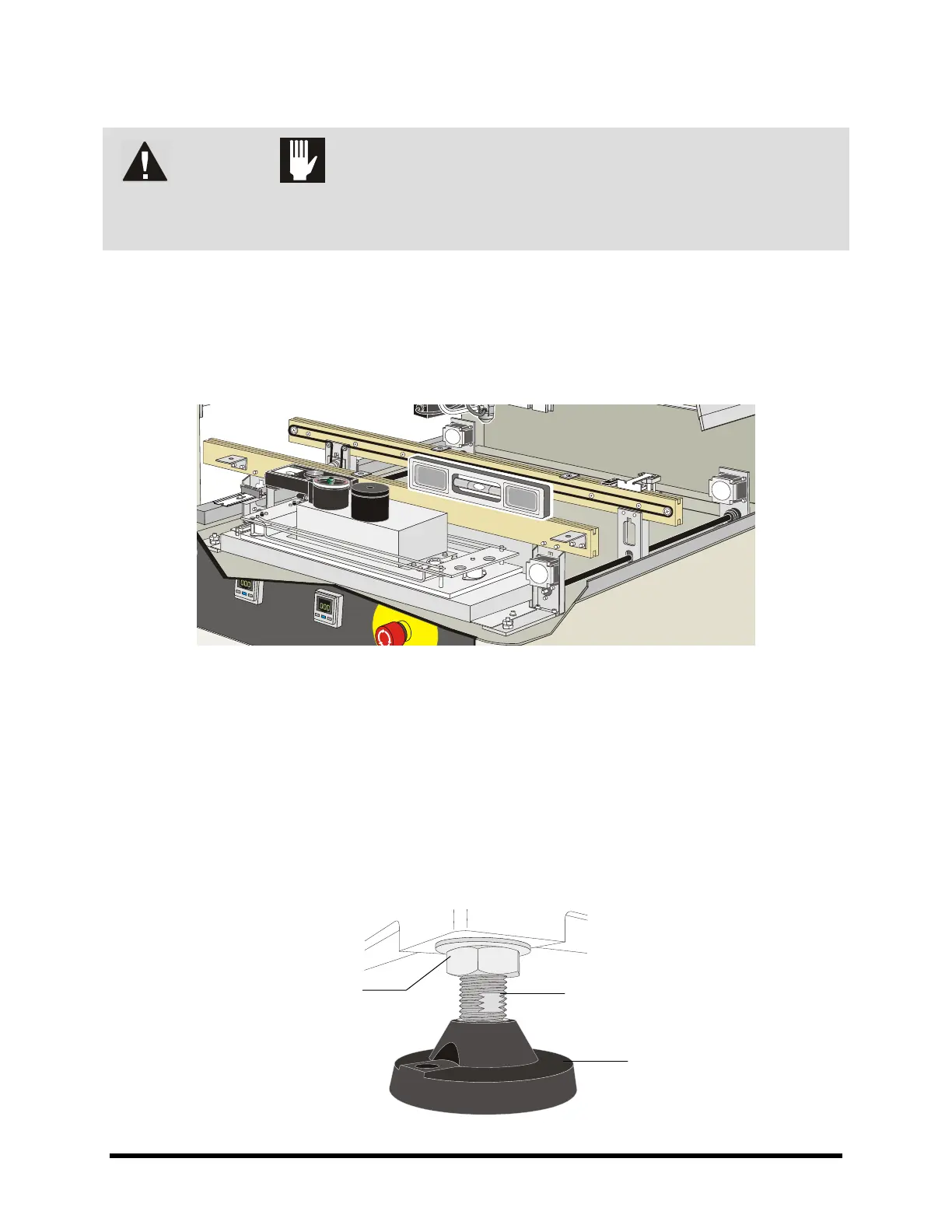

Figure 3-8 Leveling the Dispensing System – X-Axis
3. If necessary, adjust the levelers (Figure 3-9) of the dispensing system as follows:
a. Loosen the 1 1/2-inch lock nut on the leveler.
b. Turn the 1 1/2-inch post nut in the desired direction until the level’s bubble is centered,
indicating that the system is level from side-to-side.
! Turning the post nut clockwise raises the dispensing system. Turning the post nut
counterclockwise lowers the dispensing system.
c. Tighten the 1 1/2-inch lock nut on the leveler.
Figure 3-9 Dispensing System Levelers (Feet)
Post Nut
Lock Nut
Leveler
To Next Page
