7-14 Maintenance
7.10 Tensioning the Conveyor Belts
To tension the conveyor belts:
1. Perform a service shutdown as specified in 2.11 Service Shutdown.
2. Loosen the belt tensioner screws (
Figure 7-10).
3. Move the Motor Mount Tensioner up and down until the desired tension is obtained.
4. Tighten the tensioner screws.
5. Repeat Steps 1-3 for the other belt.
Item Description Item Description
1 Motor Mount Tensioner - Rear Rail 4 Belt Tensioner Screws - Rear Rail (4)
2 Conveyor Belt 5 Motor Mount Tensioner - Front Rail
3 Belt Drive Pulley 6 Belt Tensioner Screws - Front Rail (4)

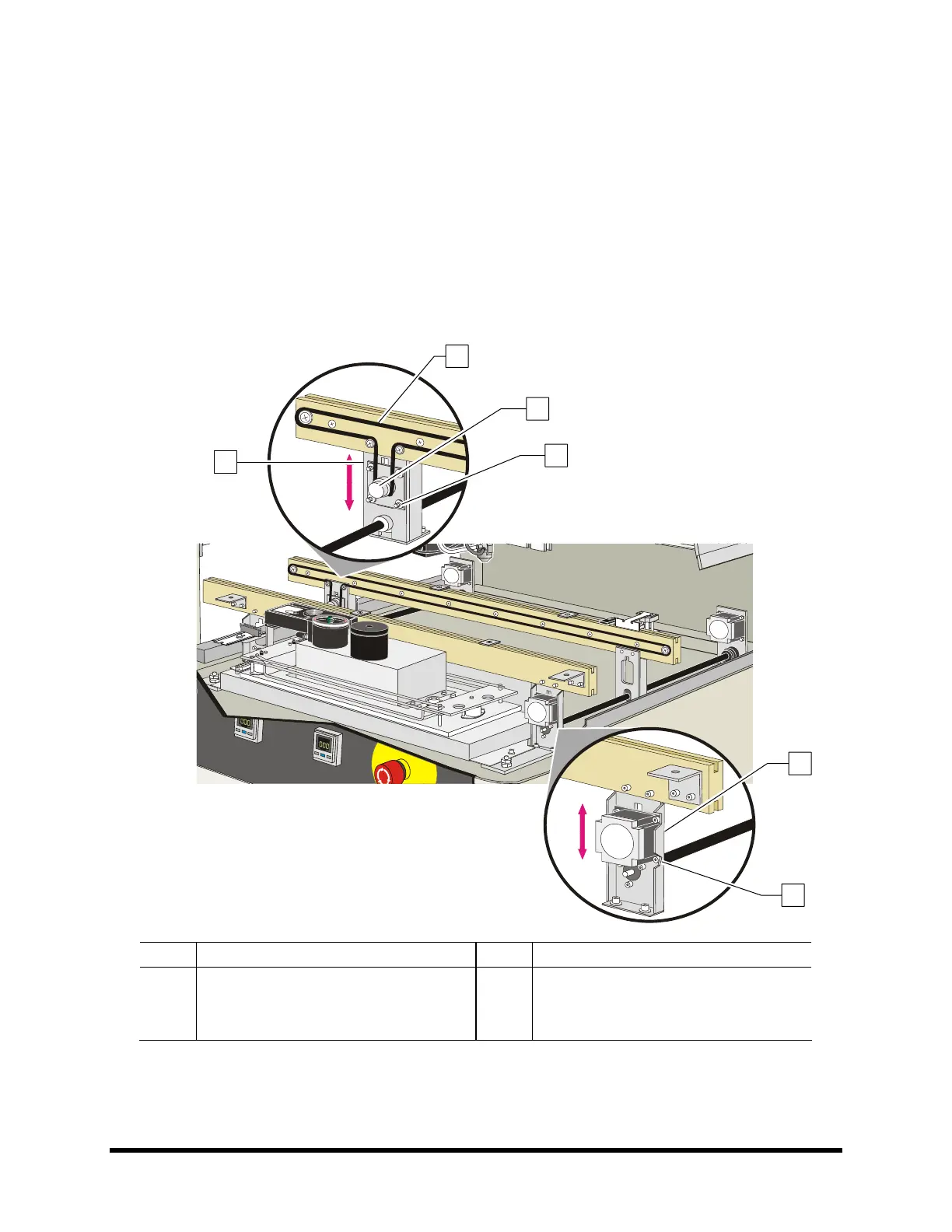

Figure 7-10 Tensioning the Conveyor Belts
" NOTE If the conveyor belts need to be replaced, refer to 9.7 Replacing the Conveyor Belts.
1
2
3
5
6
4
