Nordson Asymtek Spectrum Series - Figure 3-3 Dispensing Head Stopper Locations; Figure 3-4 Removing the Z-Head Bracket

Installation 3-5
Item Description Item Description
1 Y-Axis Stopper 3 X-Axis Stopper
2 Y-Rail (right side) 4 X-Beam

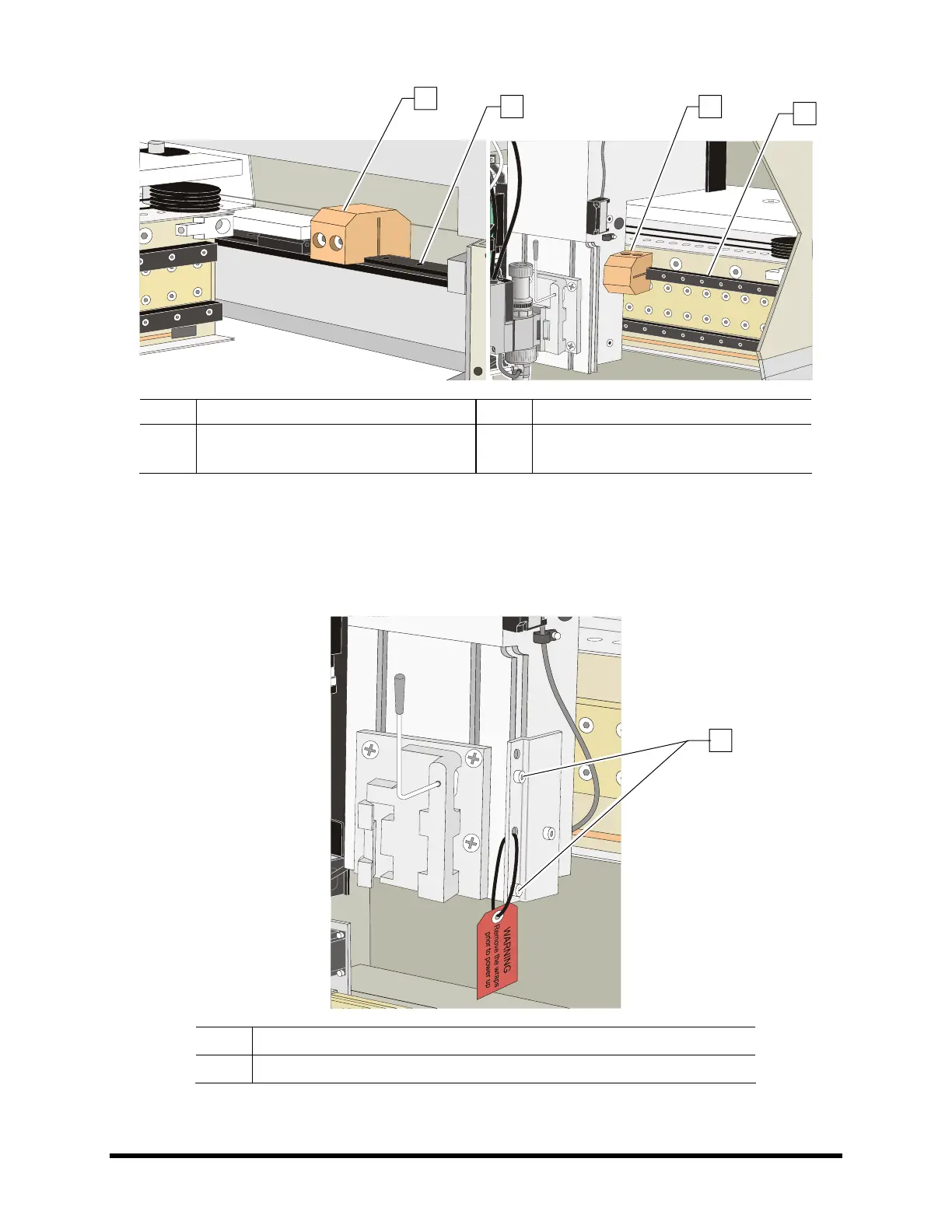

Figure 3-3 Dispensing Head Stopper Locations
4. Remove the shipping bracket and warning tag attached to the Z-Head by loosening the
screws. See
Figure 3-4.
! Retain bracket and hardware for future shipping purposes.
Item Description
1 Allen Head Screws
Figure 3-4 Removing the Z-Head Bracket
1
1
2 3
4
