3-14 Installation
8. Align the computer flush with the front of the tray.
9. Offset the left side of the computer 3/8-inch to the right of the two locking screws located on
the left side of the tray.
10. Gently press the laptop onto the base.
11. Attach the power cable to its port on the back of the computer.
12. Attach the locking cable to the laptop.

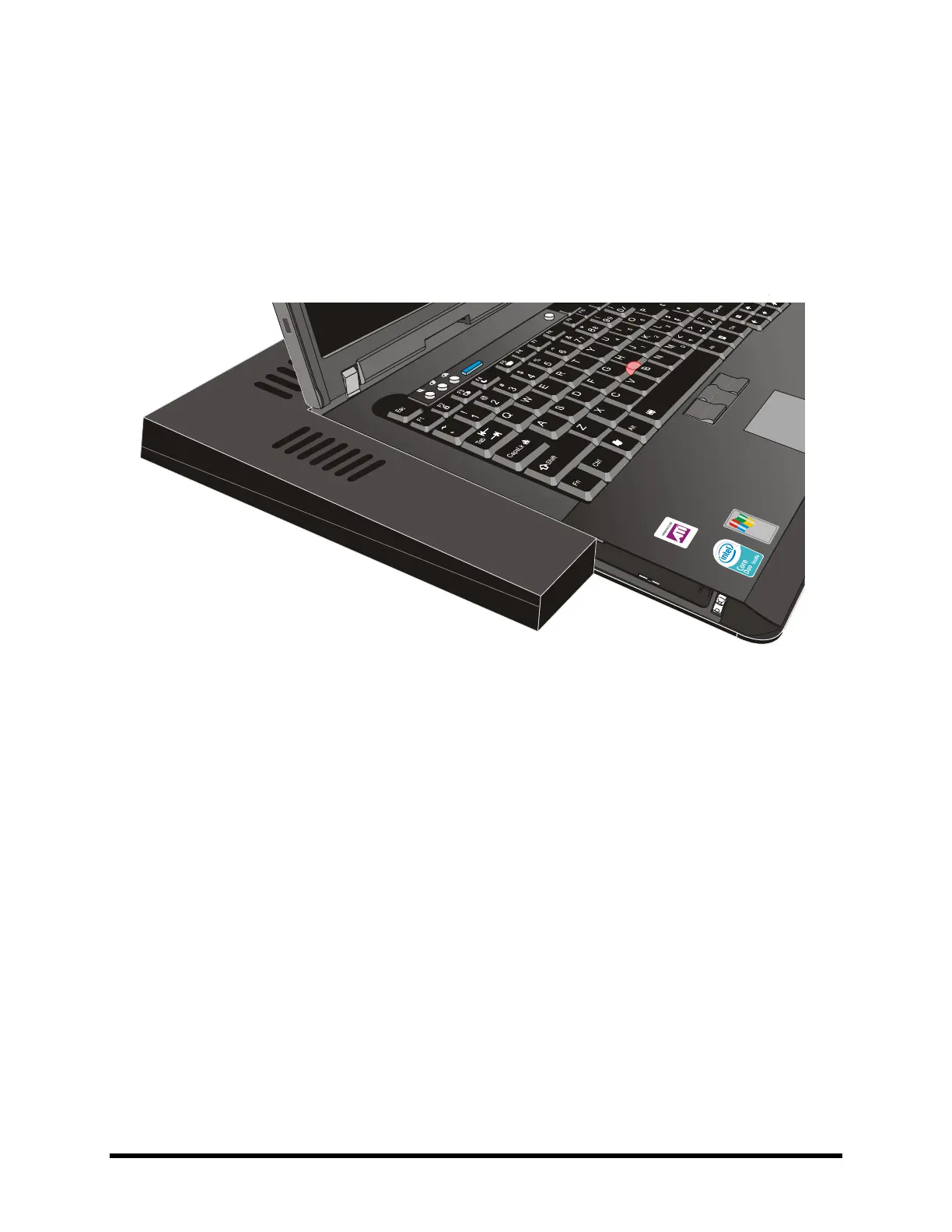

Figure 3-18 Aligning the Laptop Computer to the Tray
