Nordson Asymtek Spectrum Series User Manual

4-32 Power-Up and Testing
4.10.10 Purge Station
Perform the following procedure to check function of the purge station.
" NOTE The following procedure assumes the dispensing system is on and FmXP is running.
1. Locate the bit labeled
PURGE_CUP and toggle the bit until it reads ON (1) to turn the purge
vacuum ON (
Figure 4-21).

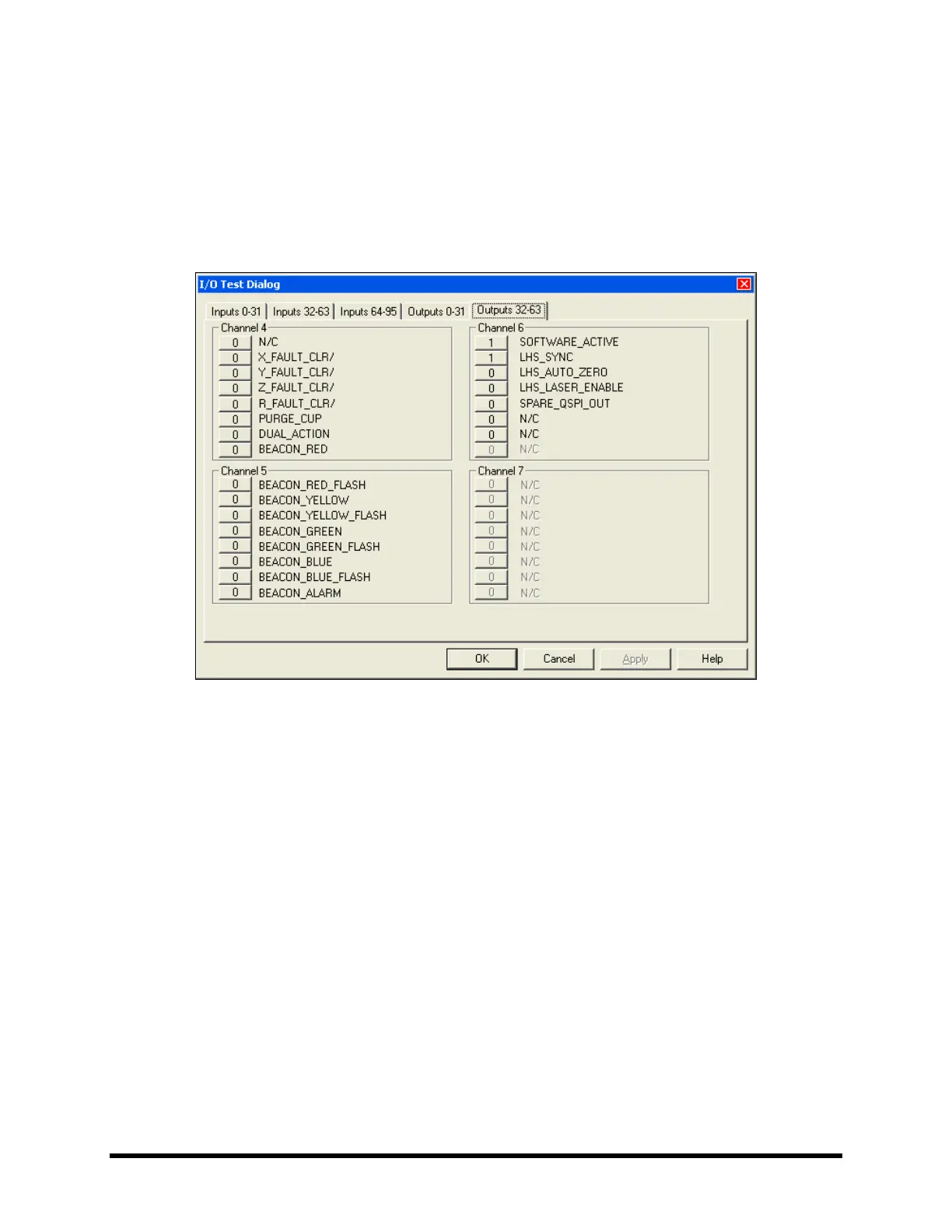

Figure 4-21 Dispenser I/O Test (Outputs 32-63)
2. Place your finger on the purge boot opening and try to lift the purge cup cover.
See
Figure 4-22.
3. If the purge station is working properly, it should be difficult to lift the purge cup cover.
4. Toggle the bit until it reads
OFF (0) to turn the purge vacuum OFF.
