Nordson Asymtek Spectrum Series User Manual

1-16 Introduction
1.10.6 Rear View Open
Item Name Description
1 Upper E-Pan
The Upper E-Pan houses the Dispense Head Controller, Z-Axis Servo
Amp, and Applicator Pneumatics.
2 Lower E-Pan
The Lower E-Pan houses the Mainboard, X-Y Axis Servo Amps, Main Air
Pneumatic Valves, and Conveyor Pneumatic Valves.
3 Rear Cabinet
The Rear Cabinet houses the Power Manager and the Conveyor/Heater
Module(s). See
1.10.7 Rear Cabinet.
4
Rear Panel
Connections
See 1.10.8 Rear Panel Connections.

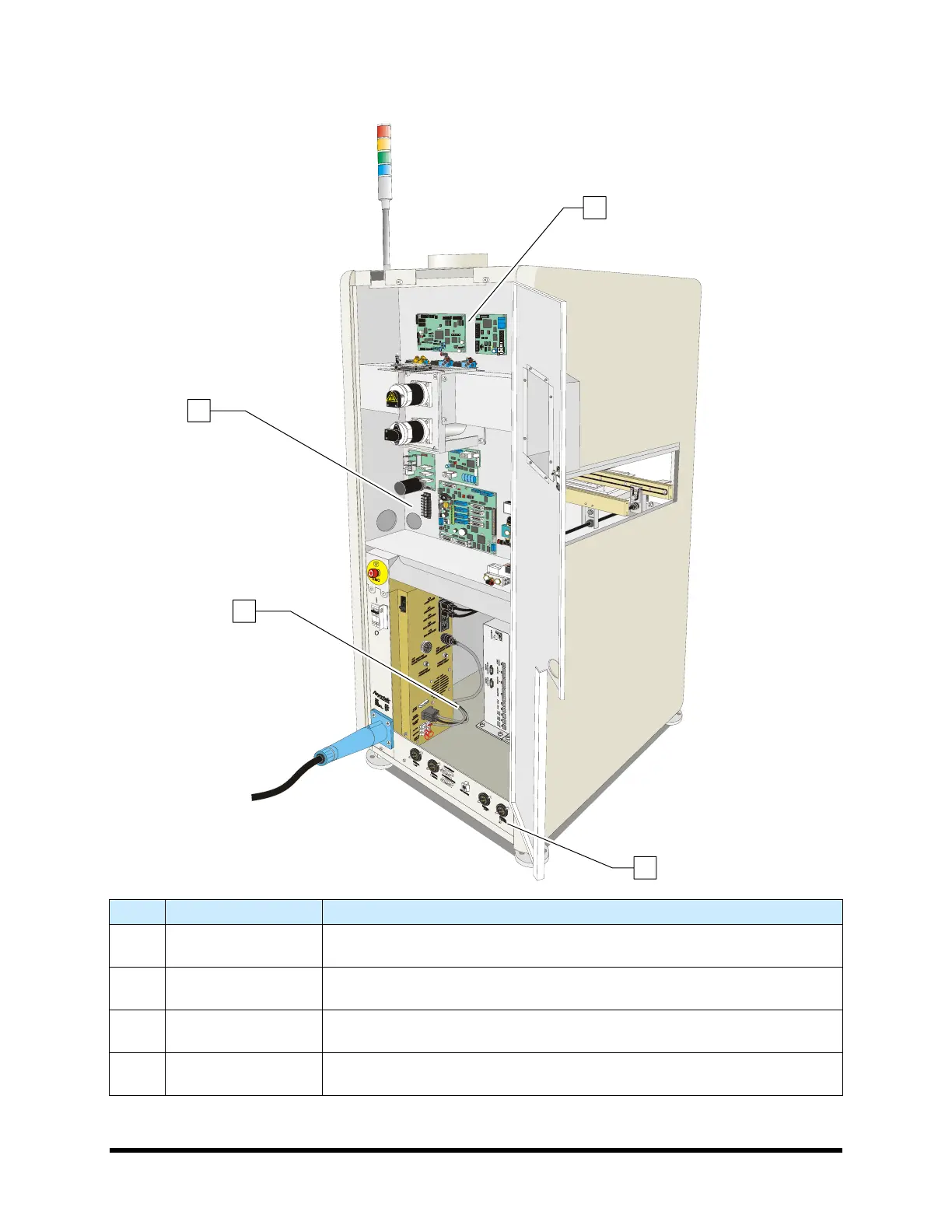

Figure 1-8 Rear View Open
1
2
3
4
