Nordson Asymtek Spectrum Series - Service Station; Figure 1-4 Service Station

Introduction 1-11
1.10.2 Service Station
Item Name Description
1 Dispense Tile
The Dispense Tile is a ceramic tile dispensed upon during system
offset routines.
2 Tactile Needle Sensor
The Tactile Needle Sensor measures needle/nozzle position in the
Z-axis.
3 Purge Station
The Purge Station consists of a small reservoir that contains a
disposable plastic cup and is attached to a vacuum generator. Air
flowing through the purge boot into the cup removes excess fluid on
the dispensing valve needle/nozzle.
4 Scale
The scale measures the weight of dispensed fluid and sends the
information to the Fluidmove software for mass flow calibration.

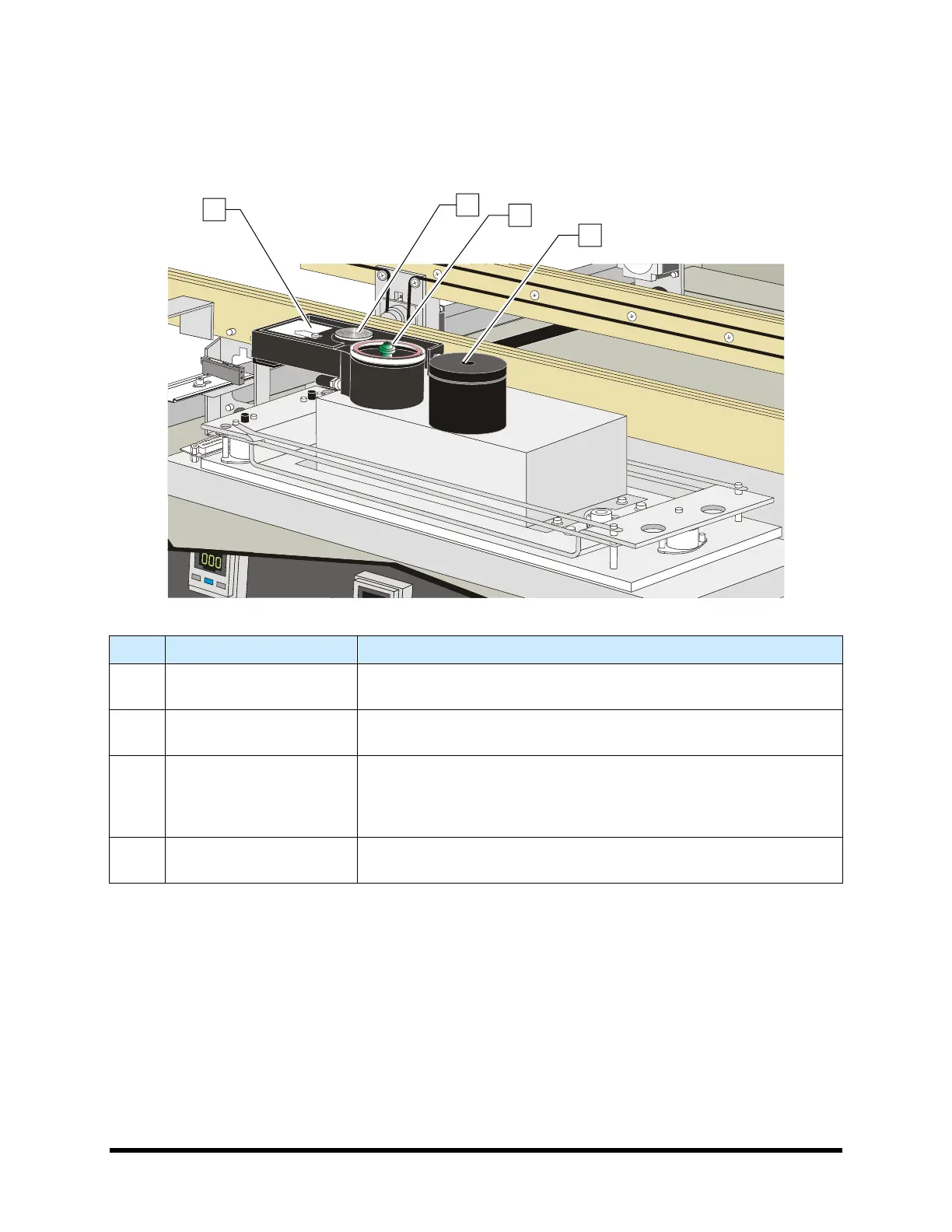

Figure 1-4 Service Station
1
2
3
4
