Nordson Asymtek Spectrum Series User Manual

1-12 Introduction
1.10.3 Front Panel
Item Name Description
1 Grounding Strap Jack
Grounding straps worn by the operator plug into this jack to prevent
electrostatic discharge (ESD) damage to workpieces during
dispensing operations.
2 ON/OFF Buttons
The green ON (l) button illuminates and switches ON power to the
dispensing system mechanics. The black OFF (0) button shuts down
the dispensing activity and vents the air pressure. The laptop
computer power remains ON.
3
Front EMO (Emergency
Machine Off)
The Front EMO is a built-in safety feature located on the front panel
of the dispensing system. Activating the EMO vents all pressure in
the pneumatic system, de-energizes the servo power, and cuts
power to all system components except the computer and monitor.
4 Computer Connection Connects the dispensing system to the laptop computer.
5 Fluid Pressure Gauge
The Fluid Pressure Gauge displays the air pressure supplied to the
fluid syringe.
6 Valve Pressure Gauge
The Valve Pressure Gauge displays the air pressure supplied to the
dispensing valve.
7
Cooling/Coaxial Air
Pressure Gauge
The Cooling/Coaxial Gauge displays the air pressure supplied to
either the valve cooling air port or the DJ-2200 coaxial air assist,
depending on machine configuration.

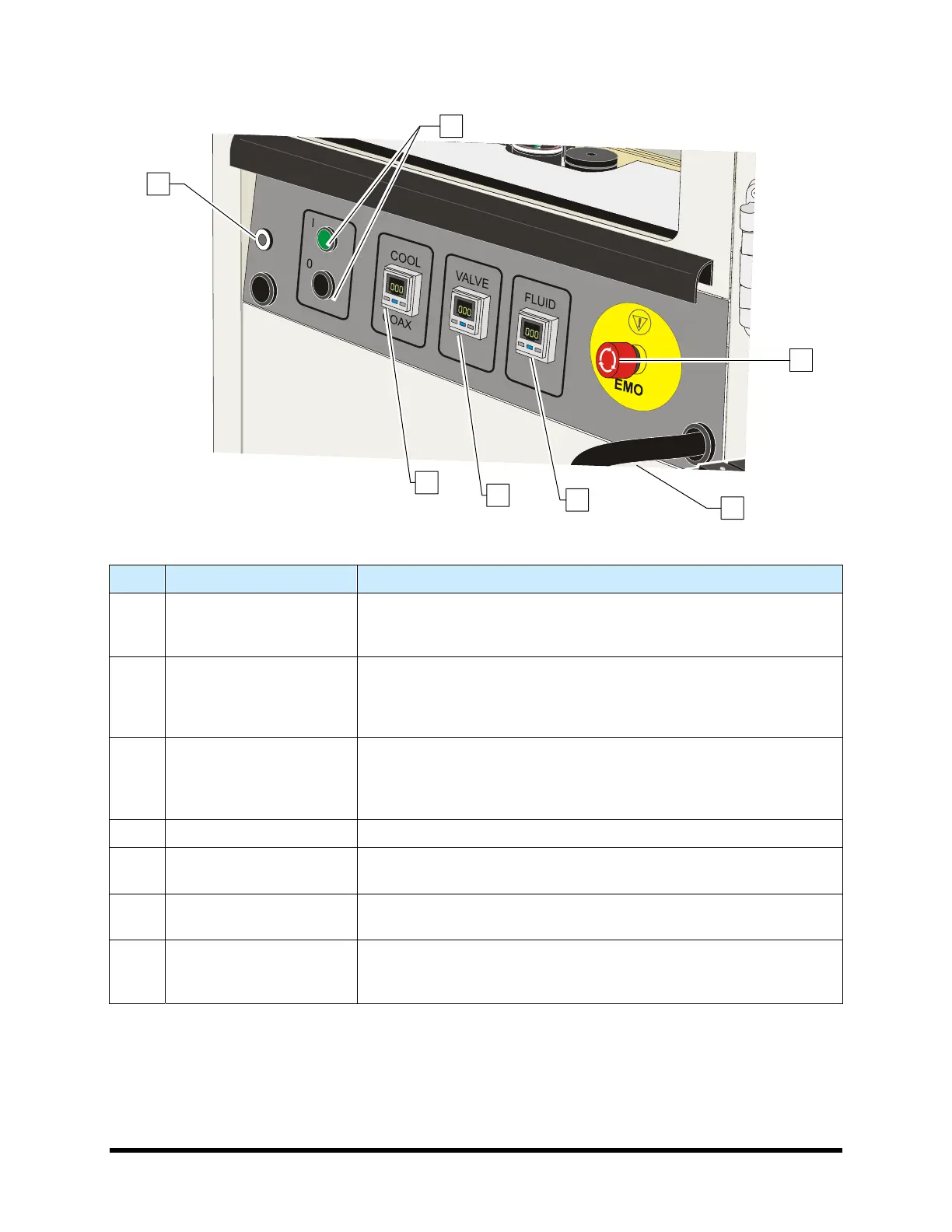

Figure 1-5 Front Panel
1
2
6
3
5
4
7
