6-24 Operation
2. Indicate the number of fiducials to be used in your program.
! If
No Fiducials is selected, you have the option of confirming the workpiece origin
when opening an existing program. To activate this feature, make sure there is a
checkmark in the textbox next to
Confirm Origin location …
• All dispensing locations on the workpiece are defined in reference to the
workpiece origin.
• The workpiece origin is defined as the point where the position counters are reset to
(x0, y0) or (0, 0).
3. Click
OK.
6.9.5 Opening a New Program Window
To create a new program:
1. Select
Teach a Program from the Main Menu.
! The Programming Window opens.
! The last saved program opens when you start FmXP.
2. To create a new program, select
File > New from the menu bar or click on the Program
Wizard
icon on the toolbar.
! This action clears the work area, loads the default fluid and heater files, and opens the
Create Workpiece Window (
Figure 6-19).
! You will be prompted to define the number of fiducials and skip marks.

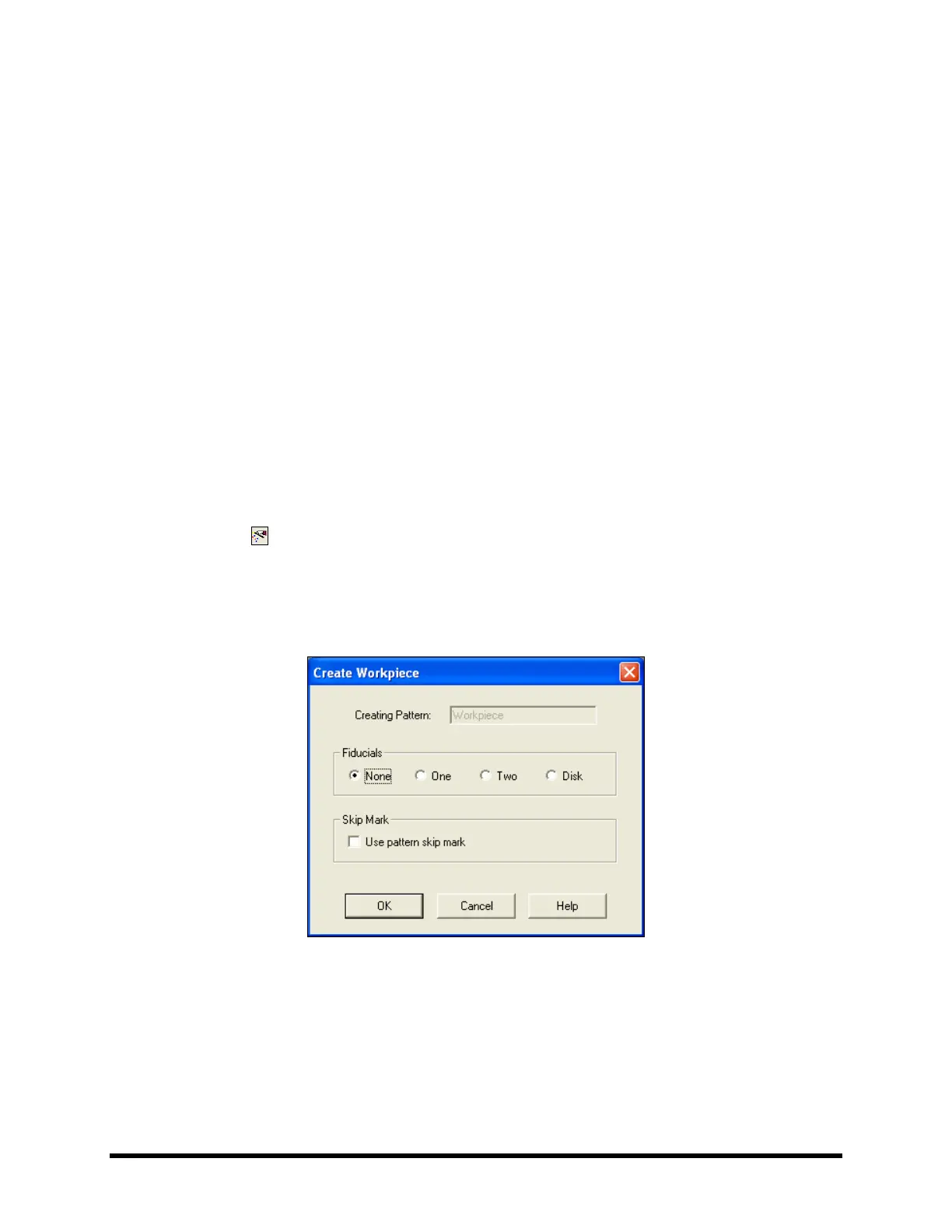

Figure 6-19 Create Workpiece
3. Enter the desired information and click OK.
! You will be prompted to teach the workpiece origin and fiducial locations, if applicable.
