Nordson Asymtek Spectrum Series - Dispensing Head and Accessories

Power-Up and Testing 4-23
4.10.6 Dispensing Head and Accessories
Perform the following procedures to check function of the dispensing head, its accessories, and the
Safety Interlock.
To check Dispensing Head clearance:
" NOTE The following procedures assume the dispensing system is on and FmXP is running.
1. Open the hood, place a production sample workpiece in the dispense station of the conveyor,
and then close the hood.
2. In the FmXP Main Window, click on
Configuration and then select Setup Conveyors
(
Figure 4-15).

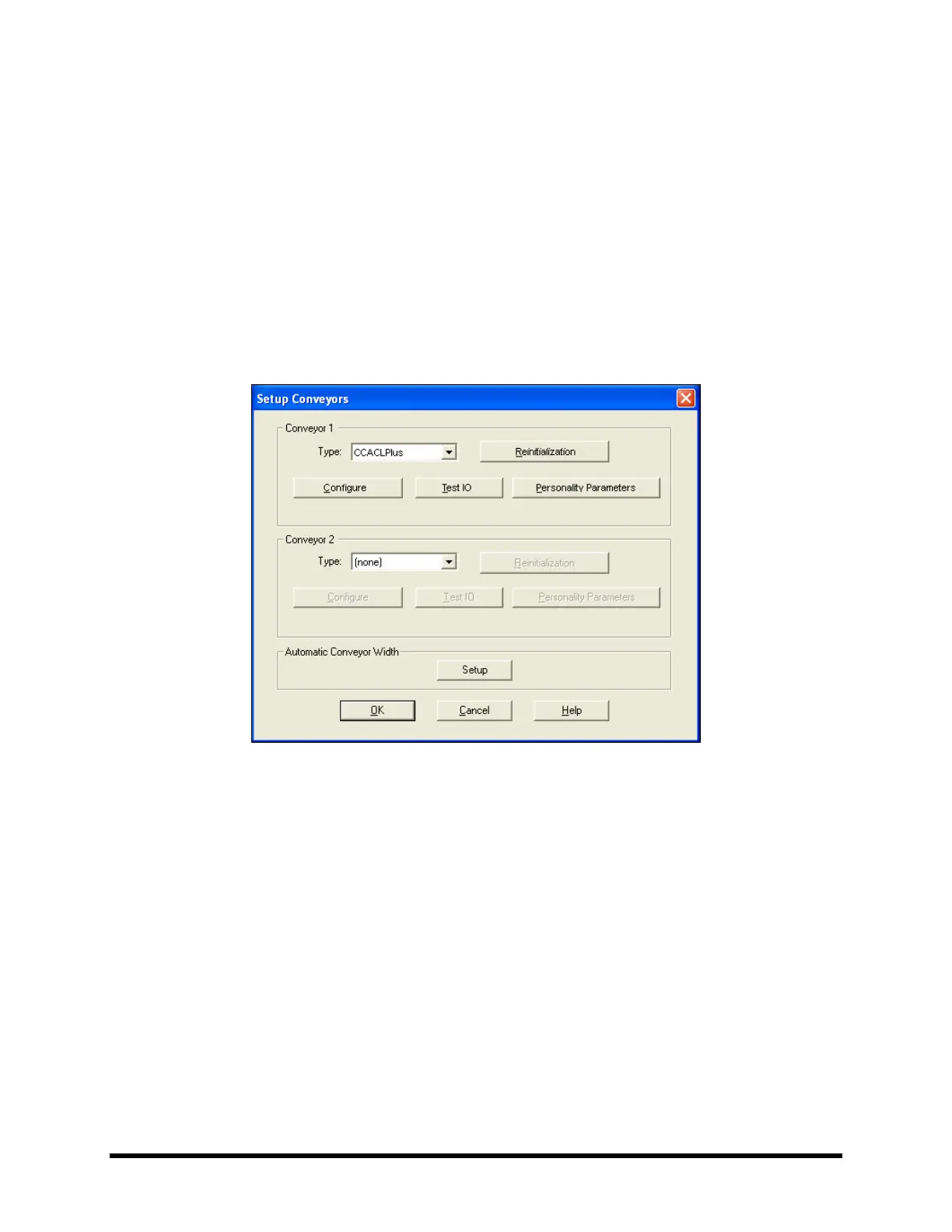

Figure 4-15 Setup Conveyors
3. In the Setup Conveyors dialog box, click on the Test I/O button.
4. Click on the Outputs 0-31 tab (
Figure 4-13).
5. In the Conveyor I/O Test dialog box, click on the dispense station lifter button (
Lift_Up_Left,
Lift_Up_Ctr
., etc.) to raise the lift table.
! This action clamps the workpiece in place at its actual dispense height.
6. Click on
OK twice to return to the Main Window.
7. If your system is equipped with a retractable height sensor, follow the steps below:
a. In the Tools Window, click on
I/O Test.
b. Click on
Dispenser.
! The I/O Test Dialog screen opens.
