4-24 Power-Up and Testing
c. Locate the tab (Figure 4-16) with the height sensor probe output
(
HS_PROBE_EXTEND).
d. Click the button next to
HS_PROBE_EXTEND to toggle the bit ON (1).
! The height sensor probe should be in the down position.

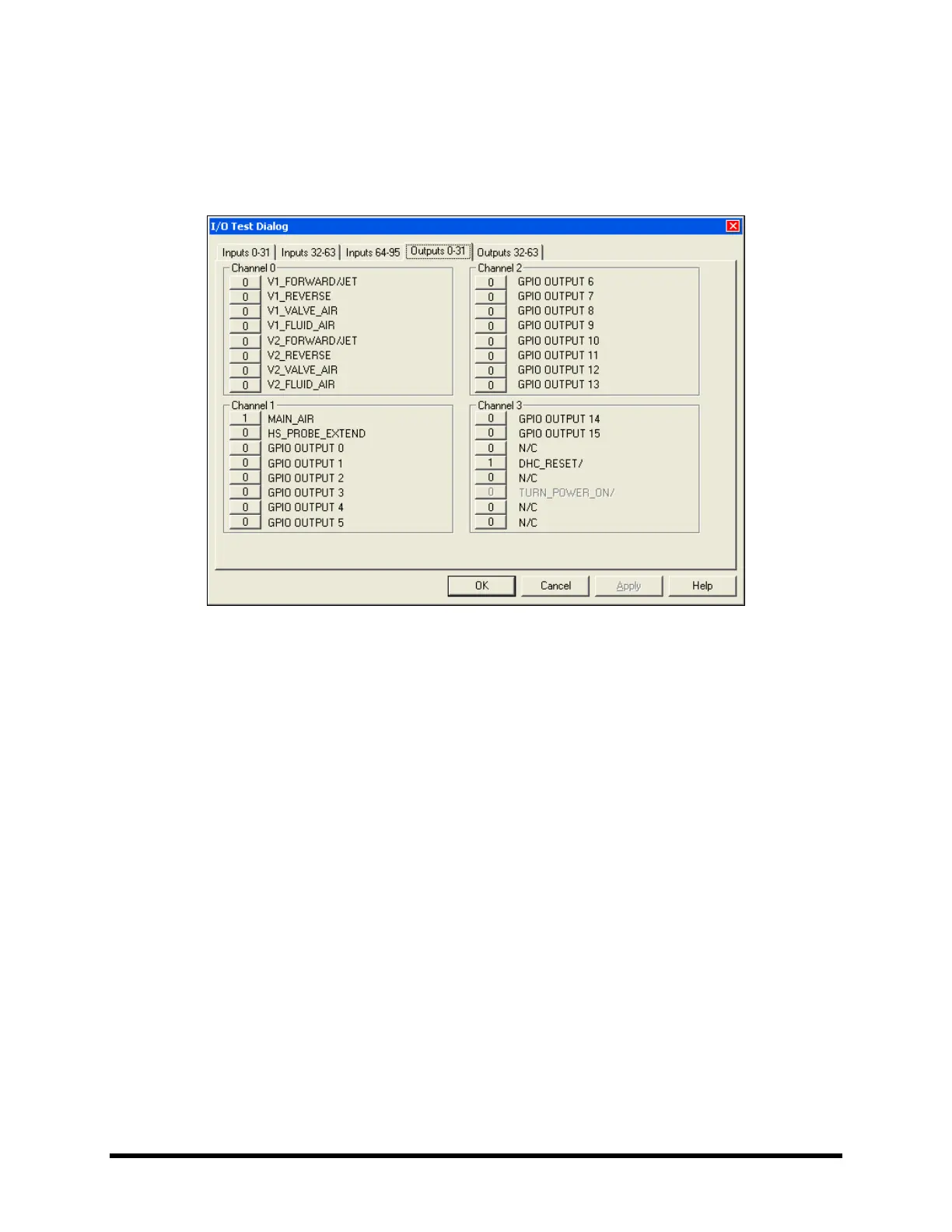

Figure 4-16 Dispenser I/O (Outputs 0-31)
