Power-Up and Testing 4-25
8. In the Main Window, click on the Jog icon
.
! The Jog Window (
Figure 4-17) opens.
Item Description Item Description
1 XYZ Position Indicator 4 X-Axis Controls
2 Z-Axis Controls 5 Y-Axis Controls
3 Home Button 6 Target Box

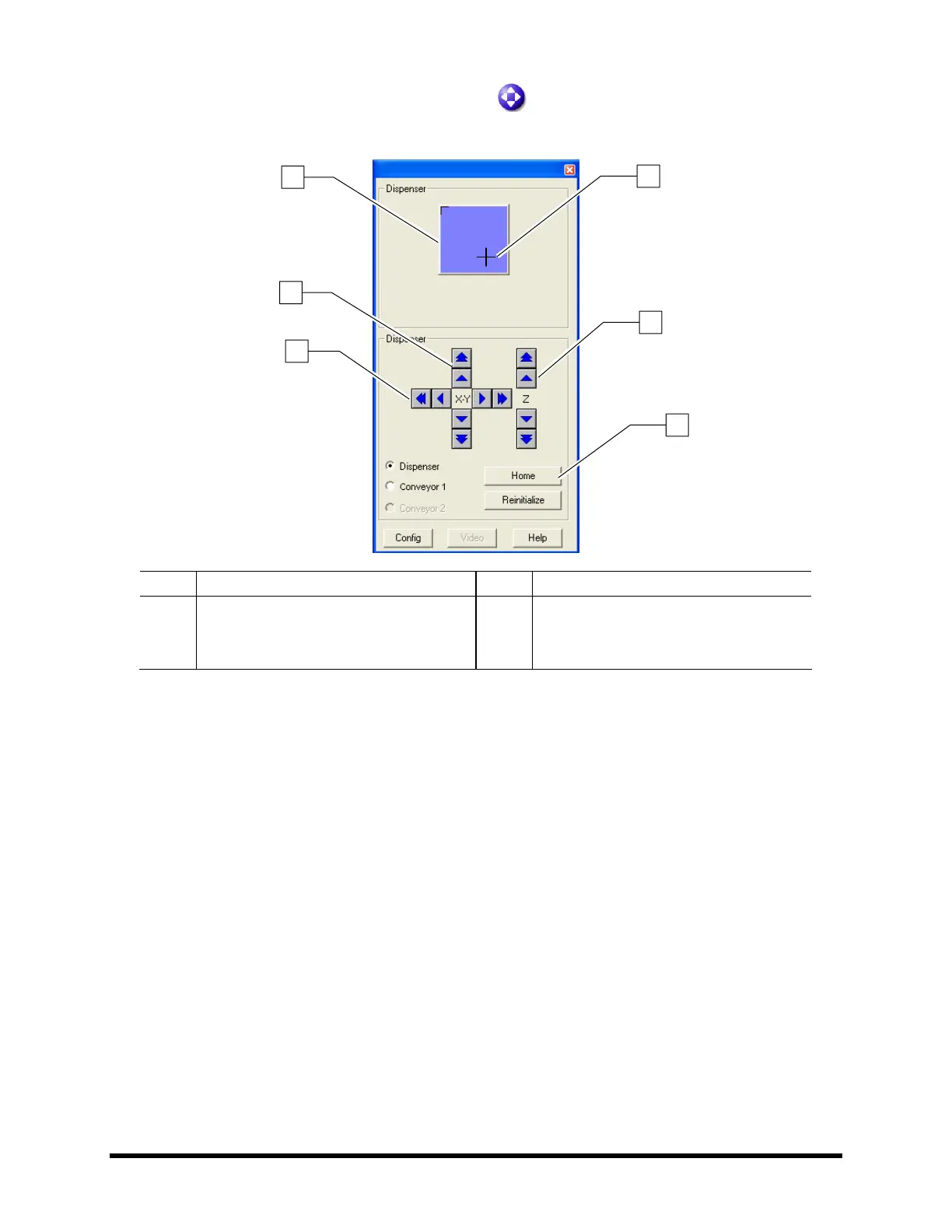

Figure 4-17 FmXP Jog Window
9. In the Jog Commands dialog box, click on Dispenser.
10. Using the position controls, move the height sensor probe just above the sample production
workpiece that is clamped in the dispense station.
11. Using the X- and Y-axis position controls only, move the dispensing head around the
dispensing chamber.
! The dispensing valve needle tip and height sensor probe should not contact any board
sensor, stop pin, electrical line, or pneumatic line in the dispensing chamber.
12. Close the Jog Commands dialog box.
13. To retract the height sensor, repeat Steps
7.a through 7.c above and then click the button next
to
HS_PROBE_EXTEND to toggle the bit OFF (0).
! The height sensor probe should be in the retracted position.
