Nordson Asymtek Spectrum Series User Manual

Operation 6-9

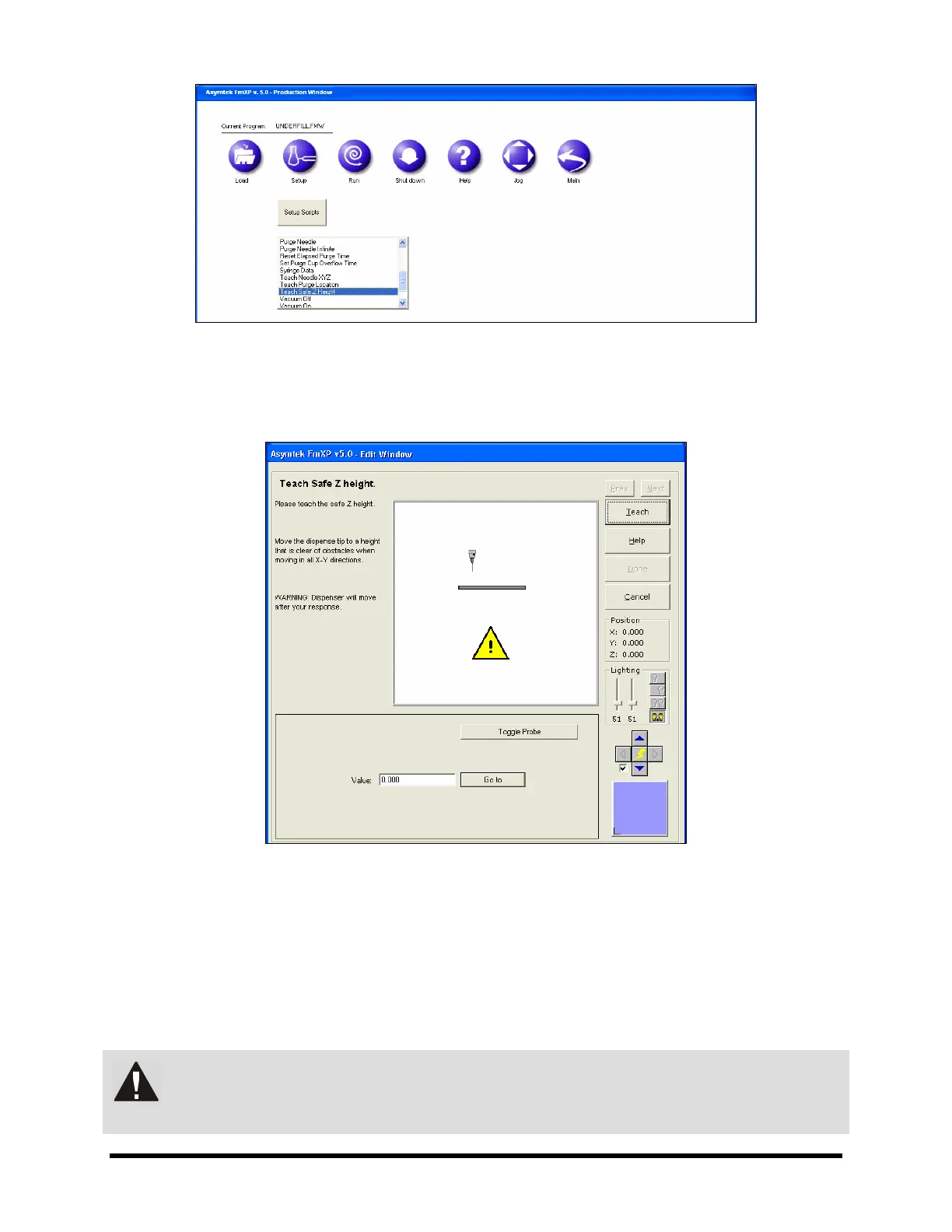

Figure 6-8 Production Window - Teaching Safe Z Height
3. Click on Teach Safe Z Height.
! The Teach Safe Z Height Window (
Figure 6-9) opens.
Figure 6-9 Teaching Safe Z Height
4. Move the dispensing head over a workpiece fiducial.
5. Raise or lower the dispensing head until it reaches a Safe Z-Height.
6. Click on
Teach.
! The Safe Z-Height value will be recorded in the value textbox.
7. Click on
Done.
WARNING! Safe Z-Height should never be taught lower than the tallest component on the
unit to be dispensed on.
