9-6 Parts Replacement
Item Description Item Description
1
Tensioner Screws
5
Motor Mount Tensioner
2
Pulley Tire
6
Rear Conveyor Rail
3
Conveyor Belt
7
Front Conveyor Rail
4
Belt Drive Pulley
8
Stop Pin

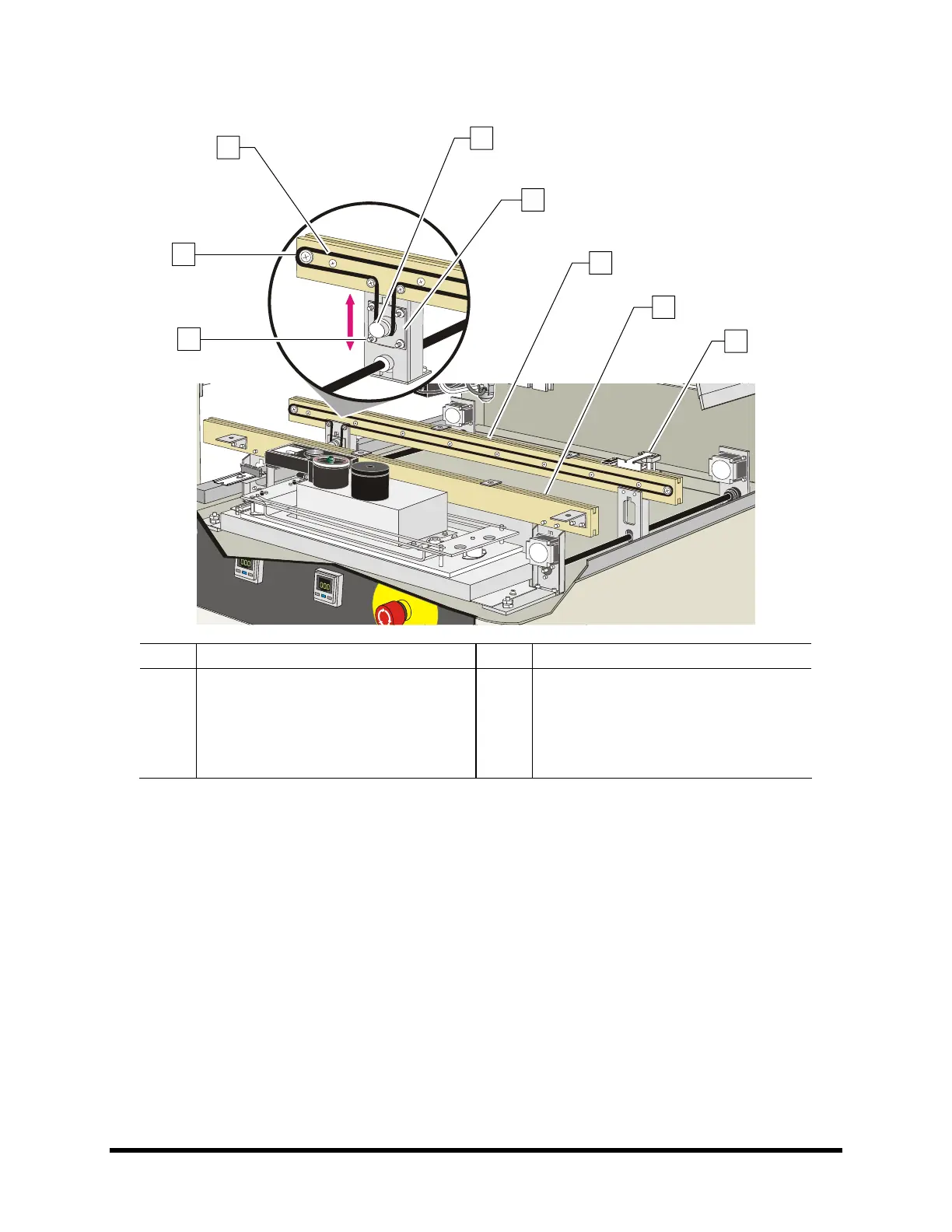

Figure 9-2 Conveyor Belt Removal/Installation
