138 Chapter 11 Replacing or adding voice processing boards

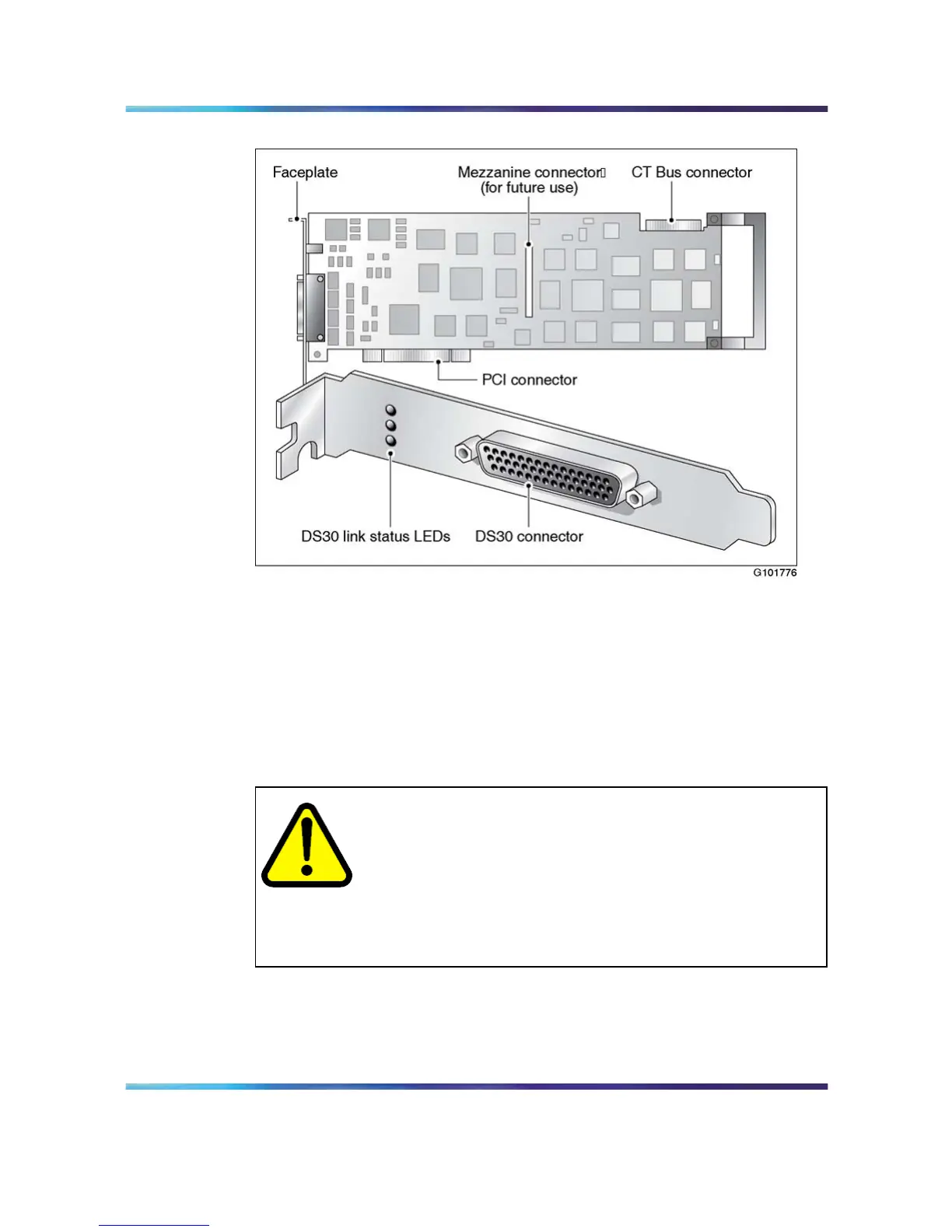

MPB96 board
Replacing MPB96 boards
This section describes how to replace an MPB96 board.
You will need to replace an MPB96 board:
•
if the board becomes faulty
•
when the PCI firmware needs to be updated, and the board must be
sent back to the factory
CAUTION
•
Wear an antistatic ESD wrist strap when handling cards
or boards, or when working inside the server.
• Do not touch the components or gold-edge connectors
of cards or boards.
•
Place the board on an antistatic surface until you are
ready to install it.
Requirements
•
MPB96 board (NTRH40AA)
•
DS30X cable (NTRH2014)
Nortel CallPilot
703t Server Maintenance and Diagnostics
NN44200-702 01.03 Standard
5.0 3 April 2007
Copyright © 2007, Nortel Networks Nortel Networks Confidential
.
