94 Chapter 8 Replacing basic chassis components

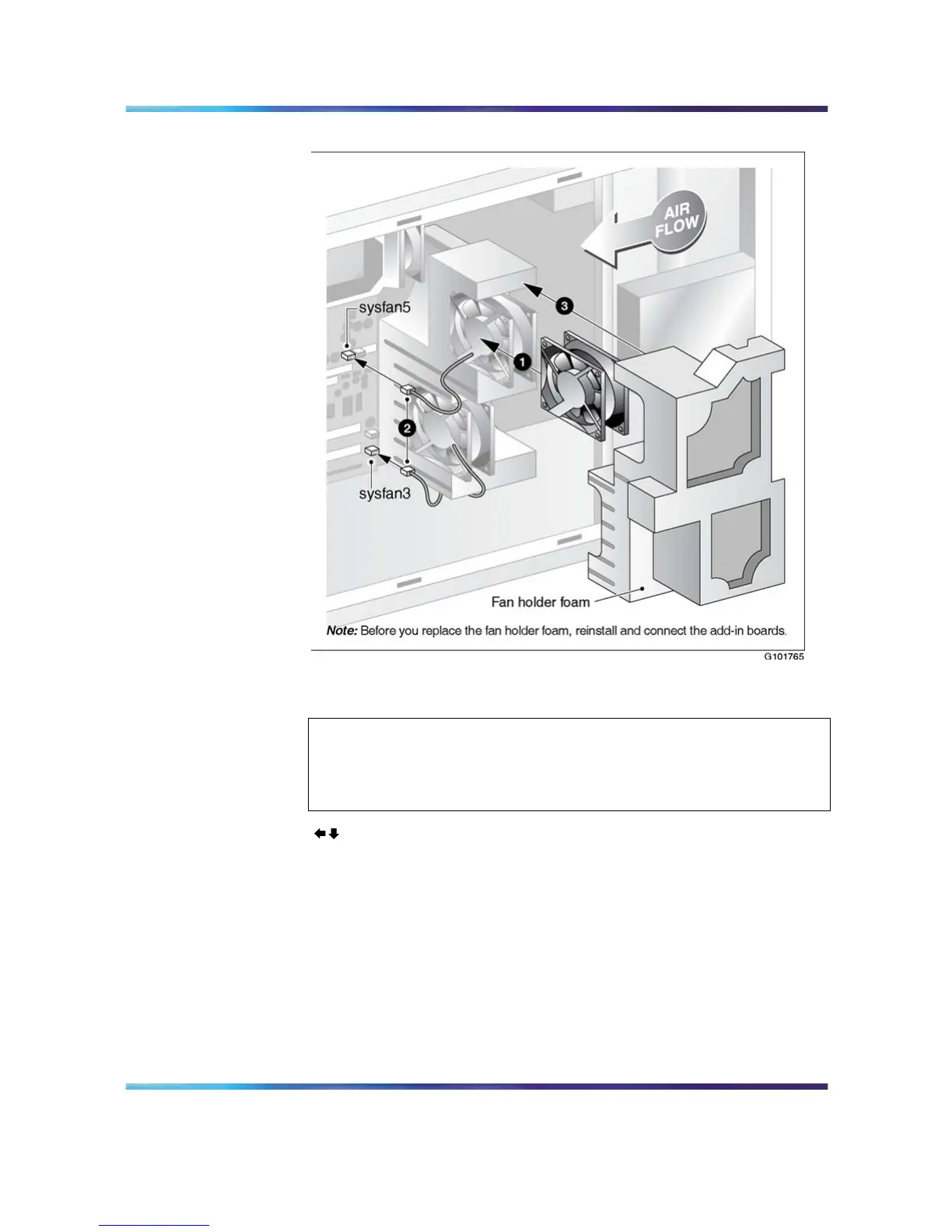

Install front system fan
6
Insert the fan into its slot in the bottom fan holder foam.
ATTENTION
To ensure proper cooling operation, ensure that the printed label of the
fan is facing the back of the server, and the arrows embossed on the
fan casing are facing as follows:.
7
Connect the fan’s power cable as follows:
a. Insert the power cable of the fan into its slot on the bottom fan
holder foam, and route the cable as shown in the preceding
diagram.
b. Connect the power cable of the fan to its connector on the
motherboard.
The connector is keyed so that it can be attached only one way.
Nortel CallPilot
703t Server Maintenance and Diagnostics
NN44200-702 01.03 Standard
5.0 3 April 2007
Copyright © 2007, Nortel Networks Nortel Networks Confidential
.
