5.6.2.2 Settings on the stacker
A29246-X20-X-4-7680 / fa505.fm 123

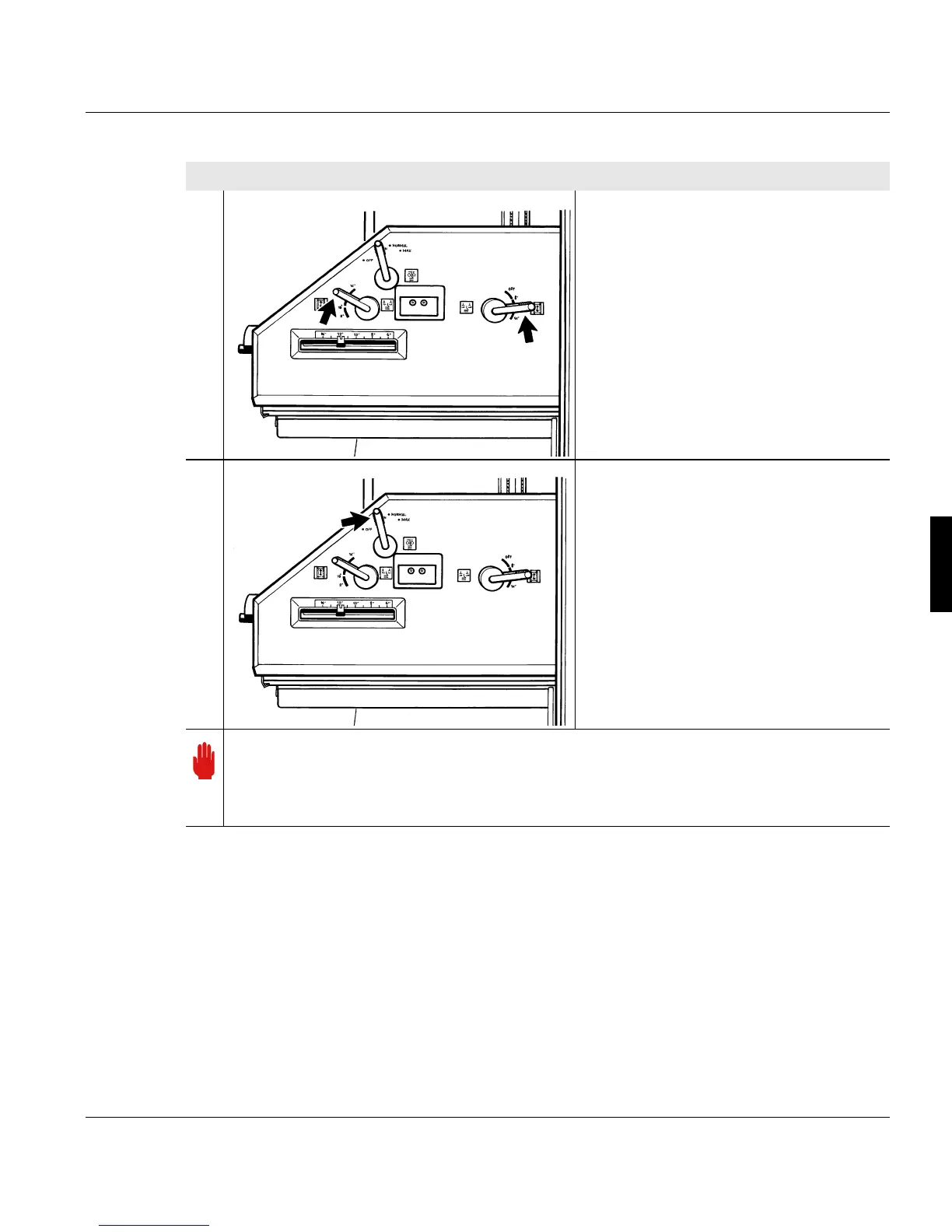

2. Position the lever for setting the air
nozzles (right=air volume,
left=direction) to the value of the
inserted paper format length (fold
length).
Depending on the paper, different
settings can provide a better stacking
result.
3. Position the lever for the distance of
the tension rollers to NORMAL.
• The MAX position can be better for
very heavy special papers, e.g. label
papers.
• The MIN position can be better for
lighter papers.
• The OFF position can be used to
remedy a paper jam.
Important
When using 19" paper in the stacker
• Set the slide for the paper width setting all the way to the left.
• Remove the paper guide on the left side.
Proceed as follows:
