Service ManualY100250-4
3-19

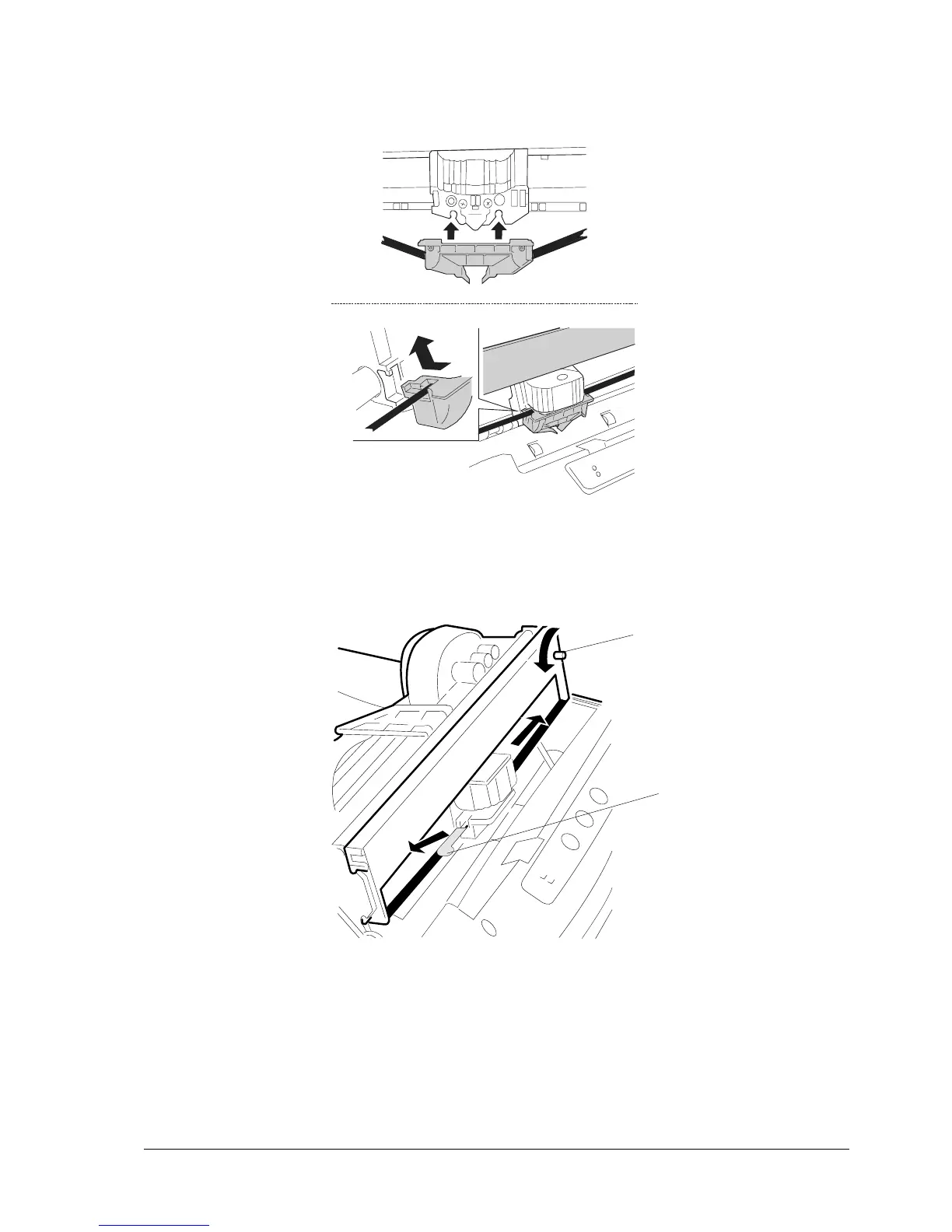

- Insert the ribbon guide frontwards and then lift it until it hooks on to the two eleastic pins on the
carriage's open slots behind behind the printhead platen (a "clack" sound is heard).
Fig. 3-19 Hooking the Ribbon Guide
- Turn the carriage knob counterclockwise (2) until the ribbon is taut and then remove tab (3).
Fig. 3-20 Removing the Tab
- Using the specific lever, completely lower the upper part of the mechanical assembly containing the
printhead and ribbon cartridge.
- Close the printer cover.
- Power on the machine.
2
3
