Absolute Encoder Interface Board Section 2-3

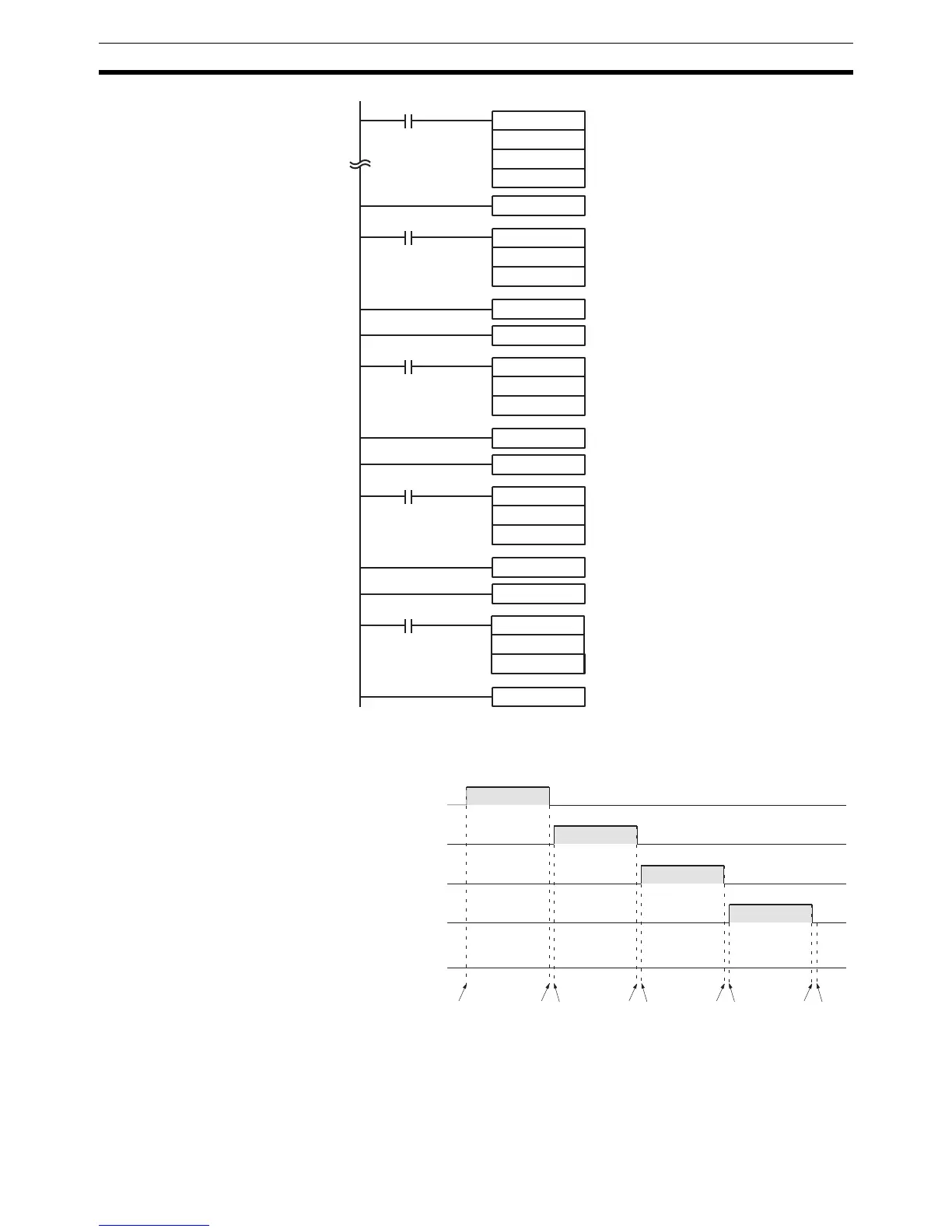

The following diagram shows the relationship between the PV of absolute
high-speed counter 1 and Range Comparison Result Flags AR 0500 to AR
0507 as the above instructions are executed.
00000
SBN(92) 100
@CTBL(63)
001
001
DM 0000
Specifies port 1, saves the comparison
table in range matching format, and be-
gins comparing.
RET(93)
SBN(92) 101
Turns ON IR 10000. Turns OFF other bits
in IR 100.
MOV(21)
#0001
100
25313 (Always ON)
RET(93)
SBN(92) 102
Turns ON IR 10001. Turns OFF other bits
in IR 100.
MOV(21)
#0002
100
25313 (Always ON)
RET(93)
SBN(92) 103
Turns ON IR 10002. Turns OFF other bits
in IR 100.
MOV(21)
#0004
100
25313 (Always ON)
RET(93)
Turns ON IR 10003. Turns OFF other bits
in IR 100.
MOV(21)
#0008
100
25313 (Always ON)
RET(93)
RET(93)
RET(93)
RET(93)
•
•
•
•
•
•
•
•
•
•
•
•
•
PV=0 85 90 175 180 265 270
AR 0500
AR 0501
AR 0502
AR 0503
355 360
AR 0504 to AR 0507
