Omron CQM1H - PROGRAM User Manual

189
Basic Ladder Diagrams Section 4-3
Again, with the method on the right, a maximum of eight blocks can be com-
bined. There is no limit to the number of blocks that can be combined with the
first method.

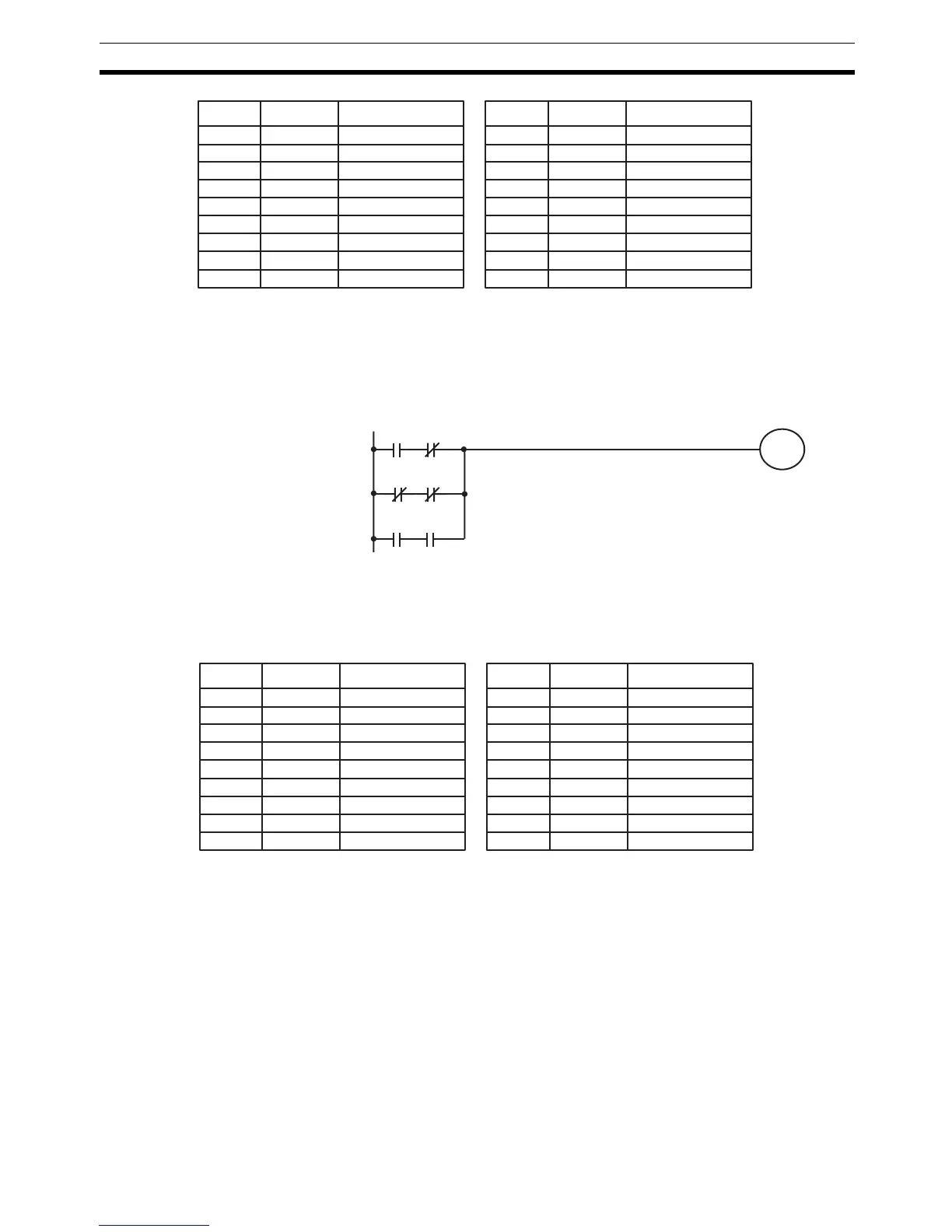

The following diagram requires OR LOAD instructions to be converted to
mnemonic code because three pairs of conditions in series lie in parallel to
each other.
The first of each pair of conditions is converted to LOAD with the assigned bit
operand and then ANDed with the other condition. The first two blocks can be
coded first, followed by OR LOAD, the last block, and another OR LOAD, or
the three blocks can be coded first followed by two OR LOADs. The mne-
monic code for both methods is shown below.
Again, with the method on the right, a maximum of eight blocks can be com-
bined. There is no limit to the number of blocks that can be combined with the
first method.
Combining AND LOAD
and OR LOAD
Both of the coding methods described above can also be used when using
AND LOAD and OR LOAD, as long as the number of blocks being combined
does not exceed eight.
Address Instruction Operands Address Instruction Operands
00000 LD
00001 OR NOT
00002 LD NOT
00003 OR
00004 AND LD
00005 LD
00006 OR
00007 AND LD
00008 OUT
00000 LD
00001 OR NOT
00002 LD NOT
00003 OR
00004 LD
00005 OR
00006 AND LD
00007 AND LD
00008 OUT
00000
00001
00002
00003

00004
00005

10000
00000
00001
00002
00003
00004
00005
10000


00000 00001
00002 00003
00004 00005
10001
00000 LD 00000
00001 AND NOT 00001
00002 LD NOT 00002
00003 AND NOT 00003
00004 OR LD 
00005 LD 00004
00006 AND 00005
00007 OR LD 
00008 OUT 10001
00001 AND NOT 00001
00002 LD NOT 00002
00003 AND NOT 00003
00004 LD 00004
00005 AND 00005
00006 OR LD 
00007 OR LD 
00008 OUT 10001
Address Instruction Operands Address Instruction Operands
00000 LD 00000

Omron CQM1H - PROGRAM Specifications

General

I/O Capacity	Up to 512 points
Power Supply	100 to 240 VAC, 50/60 Hz or 24 VDC (depending on model)
Instruction Set	Basic and advanced instructions
Operating Temperature	0 to 55°C
Program Capacity	7.2K to 15.2K steps
Communication Ports	RS-232C
Expansion Slots	Up to 3 expansion units
Type	Programmable Logic Controller (PLC)
CPU Type	RISC
Program Memory	7.2K to 15.2K steps
I/O Points	512 max
Expansion Capability	Up to 3 expansion units
Data Memory	RAM (battery backup)
