Floating-point Math Instructions Section 5-24
Description ATAN(––) calculates the arc tangent of a 32-bit floating-point number and
places the result in the specified result words. (The arc tangent function is the
inverse of the tangent function; it returns the angle that produces a given tan-
gent value.)
When the execution condition is OFF, ATAN(––) is not executed. When the
execution condition is ON, ATAN(––) computes the angle (in radians) for a
tangent value expressed as a 32-bit floating-point number in S+1 and S and
places the result in R+1 and R. (The floating point source data must be in
IEEE754 format.)
The result is output to words R+1 and R as an angle (in radians) within the
range of –
π/2 to π/2.

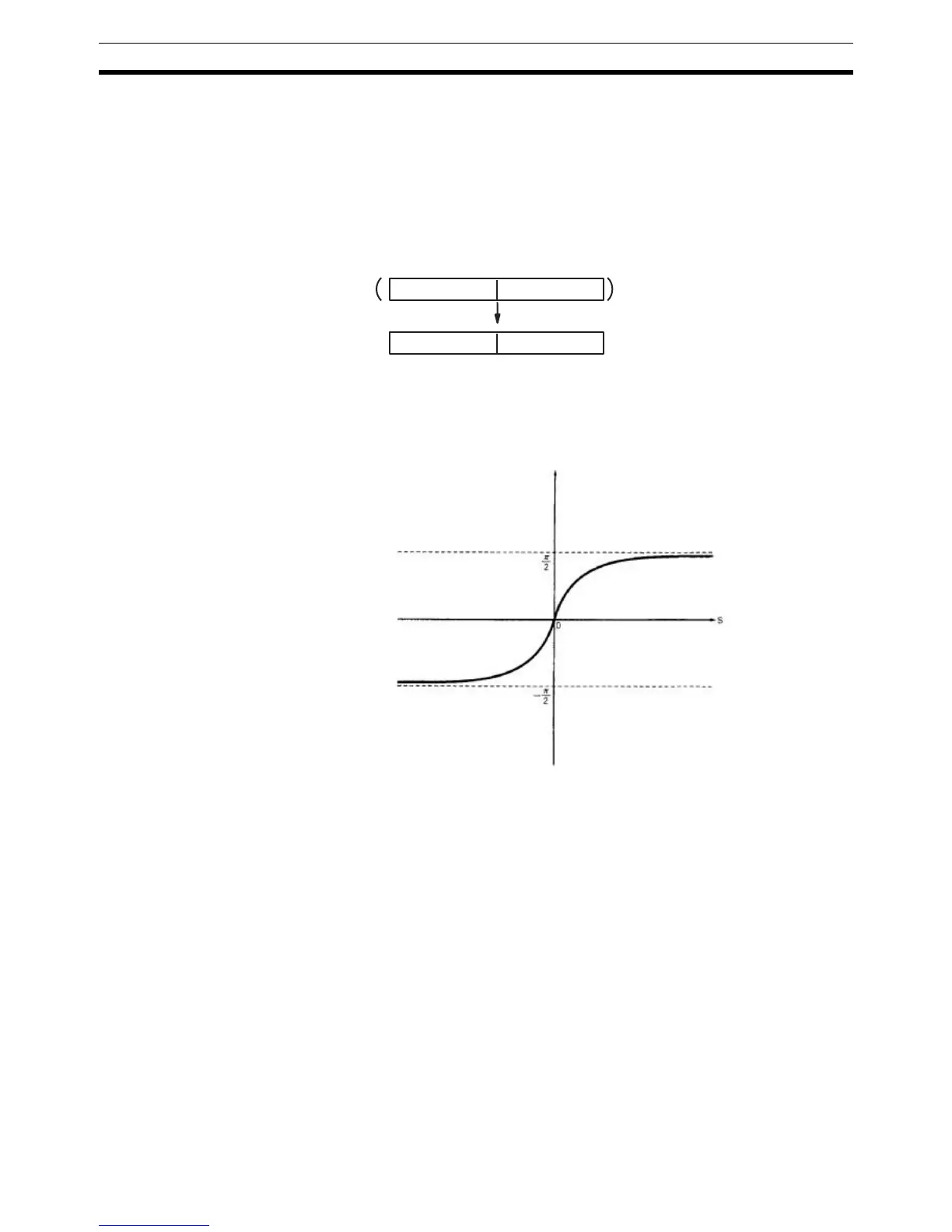

The following diagram shows the relationship between the input data and
result.
Flags ER: Indirectly addressed EM/DM word is non-existent.
(Content of *EM/*DM word is not BCD, or the EM/DM area boundary
has been exceeded.)
ON if the source data is not recognized as floating-point data.
EQ: ON if both the exponent and mantissa of the result are 0.
R+1 R
S
Source (32-bit floating-point data)
S+1
Result (32-bit floating-point data)
TA N
–1
S: Input data (tangent)
R: Result (radians)
R

Omron CQM1H - PROGRAM Specifications

General

I/O Capacity	Up to 512 points
Power Supply	100 to 240 VAC, 50/60 Hz or 24 VDC (depending on model)
Instruction Set	Basic and advanced instructions
Operating Temperature	0 to 55°C
Program Capacity	7.2K to 15.2K steps
Communication Ports	RS-232C
Expansion Slots	Up to 3 expansion units
Type	Programmable Logic Controller (PLC)
CPU Type	RISC
Program Memory	7.2K to 15.2K steps
I/O Points	512 max
Expansion Capability	Up to 3 expansion units
Data Memory	RAM (battery backup)
