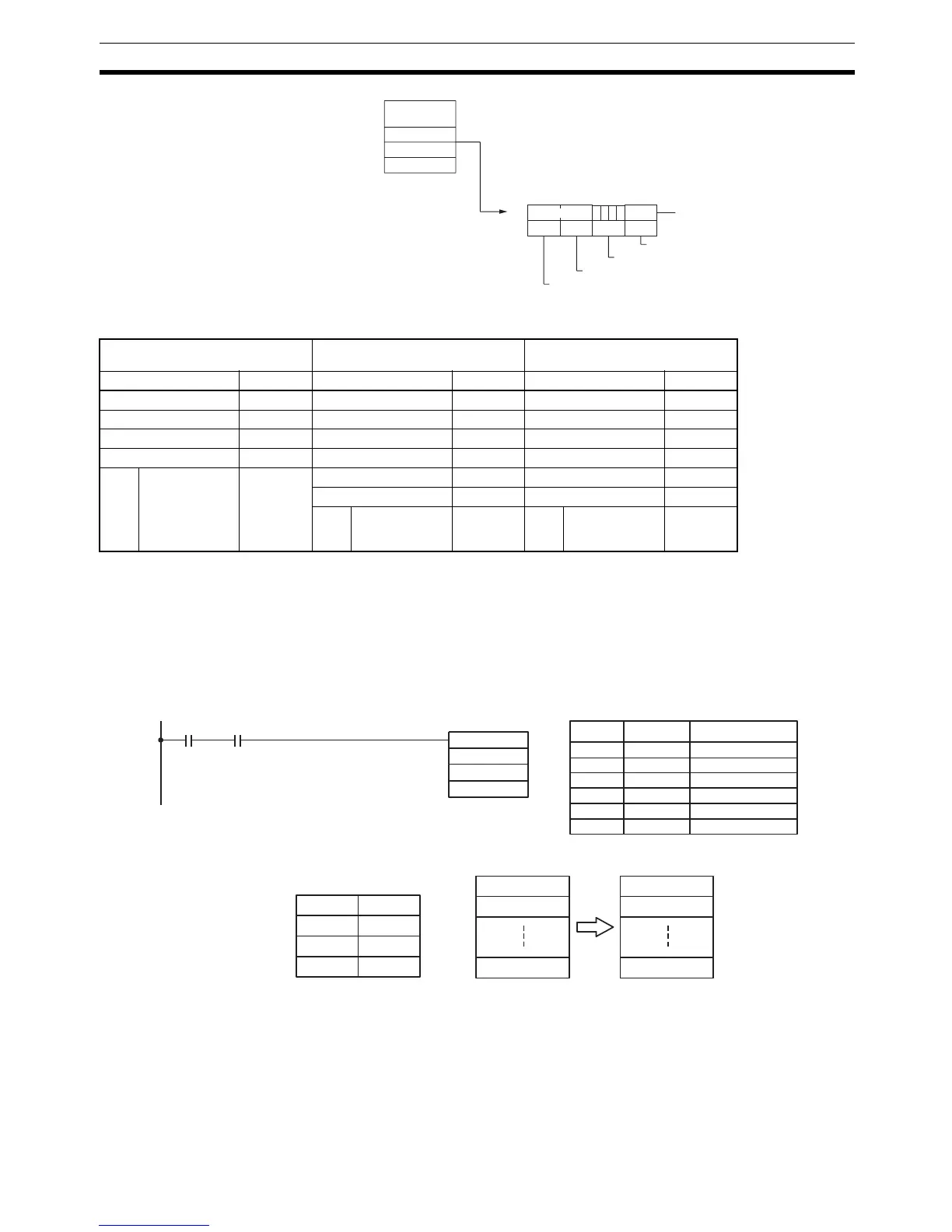

Network Instructions Section 5-29
Note Specify the area code according to the following table.
Note 1. Words 0 to 2555 in the IR Area can send and receive data.
2. Timer/counter numbers 0 to 2047 can send and receive data.
Examples When IR 00000 and AR 0209 (the Network Instruction Enabled Flag) are ON
in the following example, the ten words from DM 0100 to DM 0109 are trans-
mitted to node number 3 in the local network where they are written to the ten
words from DM 0200 to DM 0209. The data will be retransmitted up to 3 times
if a response is not received within ten seconds.
Flags ER: Indirectly addressed EM/DM word is non-existent.
(Content of *EM/*DM word is not BCD, or the EM/DM area boundary
has been exceeded.)
The number of send words exceeds 990 words for a Controller Link
Unit.
There is no Controller Link Unit installed.
The source words exceed the data area boundary.
S: Source node beginning send word
D: Destination node beginning receive word
C: Source node first control data word
@SEND(90)
S
D
C
D
D+1
0000
15 1211 8 7 6 5 4 3 2 1 0
Area code*
Word address (5th digit)
Word address (1st digit)
Word address (2nd digit)
Word address (3rd digit)
Word address (4th digit)
Destination node:
CS1-series PC
Destination node:
CQM1H, C200HX/HG/HE PC
Destination node:
CV-series PC
Area Code Area Code Area Code
CIO 00IR 00CIO 00
Timer (see note 1) 03 LR 06 CPU Bus Link 01
Counter (see note 2) 04 HR 07 Auxiliary 02
DM 05 AR 08 Timer 03
EM Banks 0 to 7
Banks 8 to 15
Current bank
10 to 17
A8 to AC
18
Timer/Counter 03 Counter 04
DM 05 DM 05
EM Banks 0 to 7
Banks 8 to 15
Current bank
10 to 17
28 to 2F
18
EM Banks 0 to 7
Current bank
10 to 17
18
C3 64
0003
DM 0100
DM 0101
DM 0109
C+2: DM 0302
15 0
@SEND(90)
DM 0100
DM 0200
DM 0300
00000
Node 3
Address Instruction Operands
00000 LD 00000
00001 AND AR 0209
00002 SEND(90)
DM 0100
DM 0200
DM 0300
AR 0209
000A
0000C+3: DM 0303
C+1: DM 0301
C: DM 0300
DM 0200
DM 0201
DM 0209
