Communication protocols
PROGRAMMING MANUAL 169
Revision 3.0

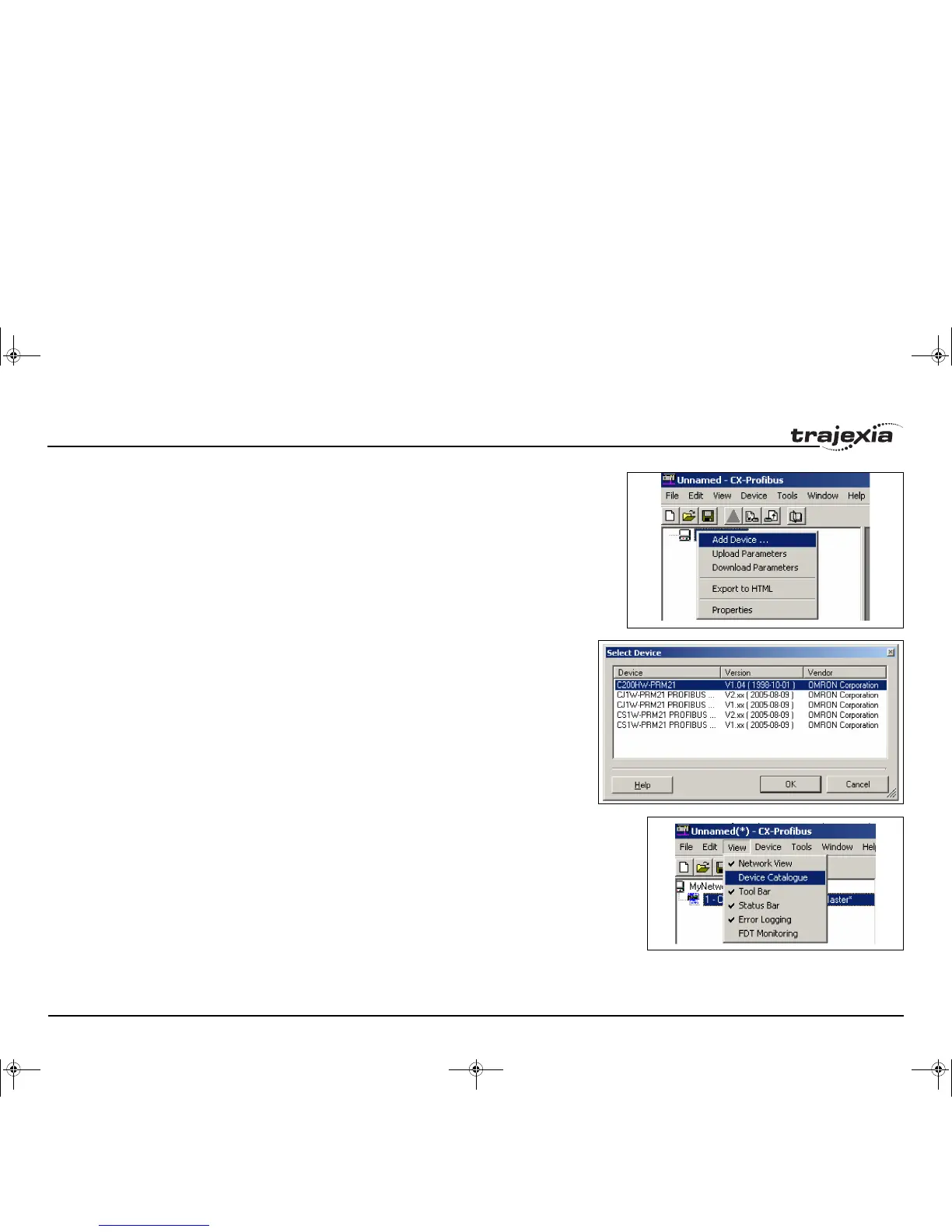

fig. 6
1. Start the CX-PROFIBUS software tool.
2. Right-click the MyNetwork tree.
3. Select Add Device....
fig. 7
4. Select the PROFIBUS master board.
5. Click OK.
fig. 8
6. Open the Device Catalogue from the View menu.
