Communication protocols
PROGRAMMING MANUAL 170
Revision 3.0

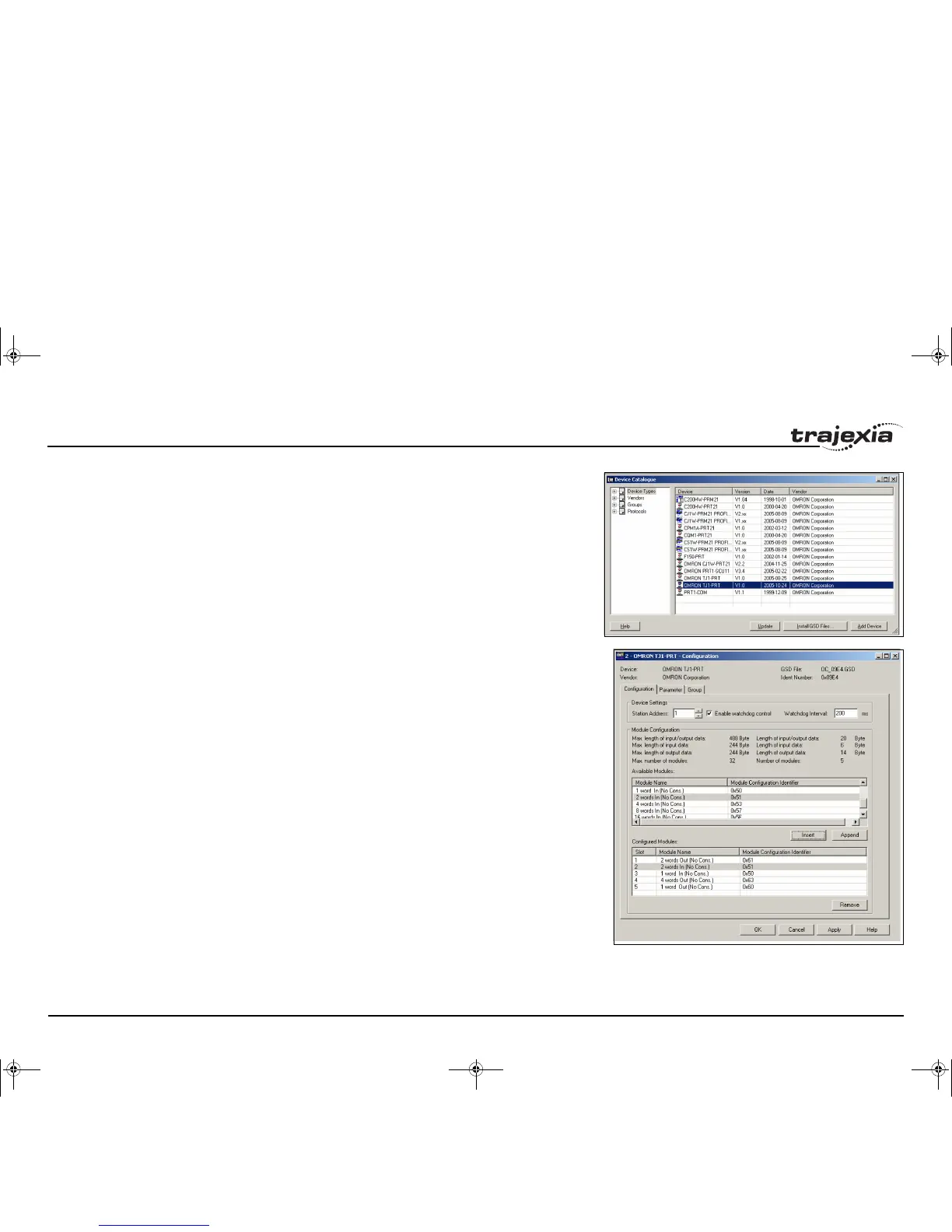

fig. 9
7. Click Install GSD Files.... The GSD file is on the Trajexia Tools
CD. It can also be found in the Download Center on the
OMRON website.
8. Click Update. The TJ1-PRT shows in the list.
9. Select the OMRON TJ1-PRT from the list and click Add
Device.
fig. 10
10. Double-click the TJ1-PRT slave module in the MyNetwork tree.
11. Set the node number in the Station Address field.
12. Add (Insert) input and output modules to the configuration list
below.
13. Make sure that the quantity of input words and output words in
the selected modules are equal to the quantity selected with the
PROFIBUS command.
14. Click OK.
To configure the CJ1W-PRM21 with the CX-PROFIBUS, do these
steps:
I52E-EN-03.book Seite 170 Freitag, 29. Juni 2007 11:55 11
