Communication protocols
PROGRAMMING MANUAL 171
Revision 3.0

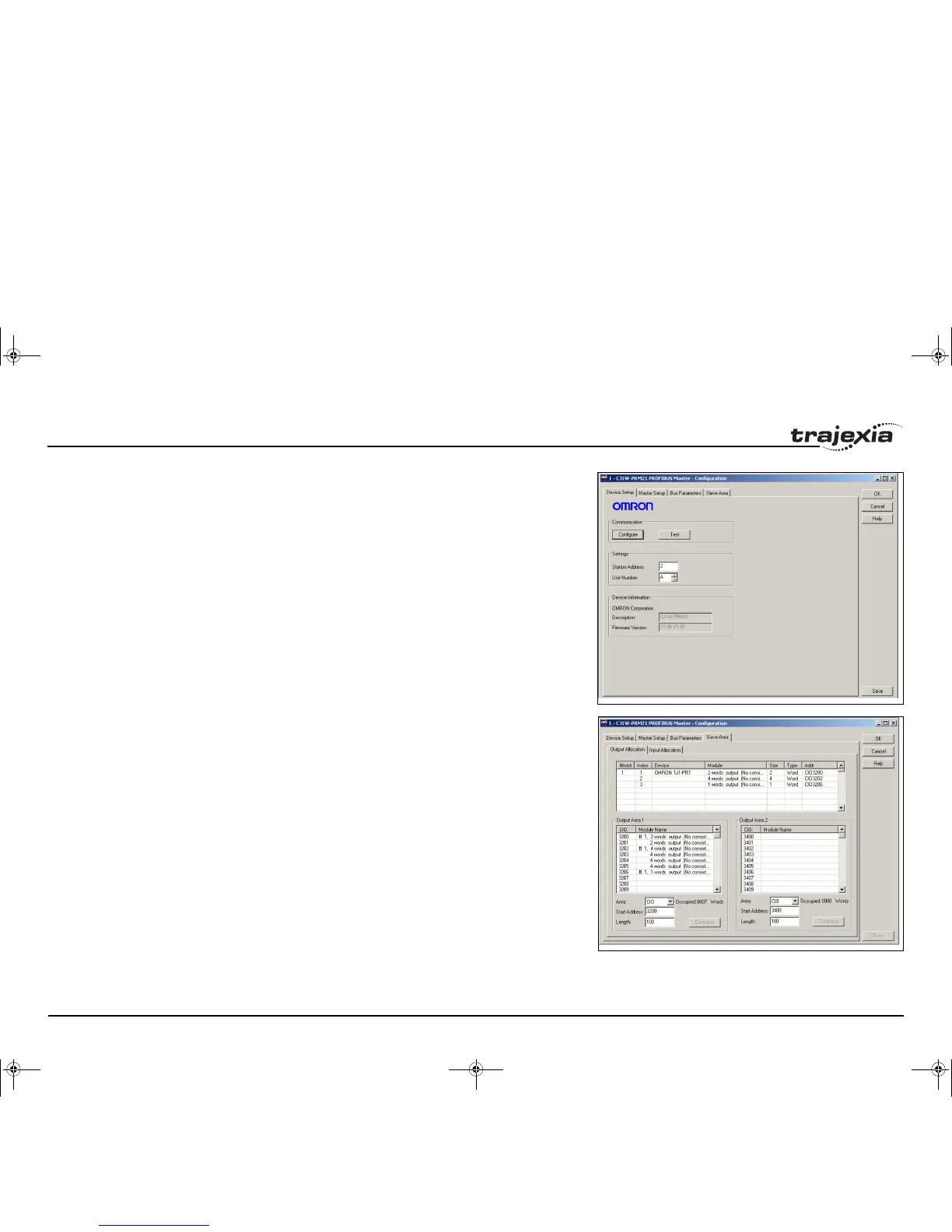

fig. 11
1. Double-click the master module in the MyNetwork tree.
2. Set the Station Address and Unit Number.
fig. 12
3. Select the Slave area tab.
4. Set the Start Address field of Output Area 1 and Input Area
1.
5. Save the project.
