Omron V430-F Series - Configurable Output 3; Trend Analysis Output 3; ISO;IEC 16022 Symbol Quality Output 3

Auto Focus Multi Code Reader V430-series User’s Manual (Z392) 7-51
I/O Parameters

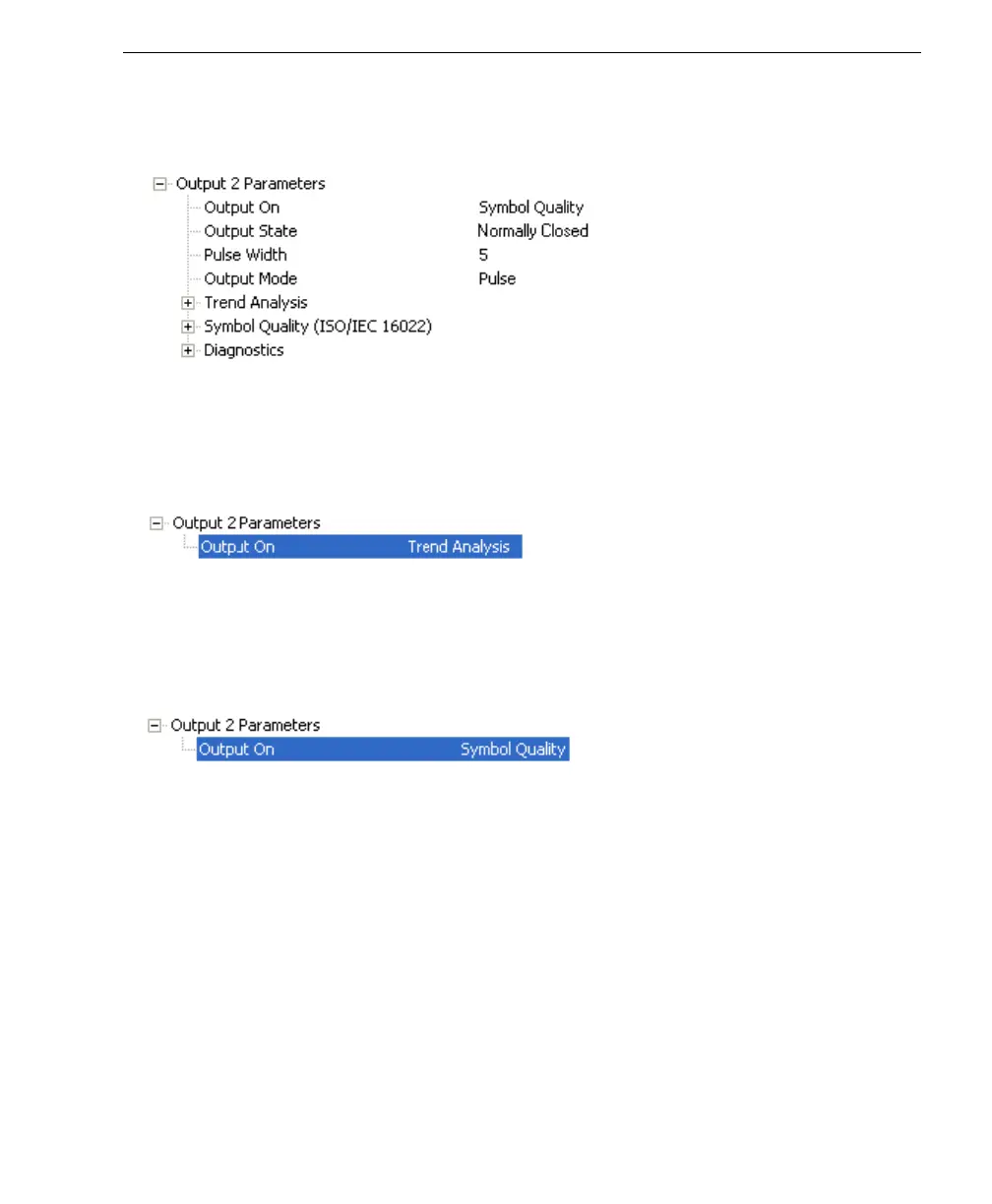

Configurable Output 2
Note: Output 2 has the same parameters and default settings as Output 1.
Trend Analysis Output 2
Note: Output On under Output 2 Parameters must be set to Trend Analysis for this output
to function.
ISO/IEC 16022 Symbol Quality Output 2
Note: Output On under Output 2 Parameters must be set to Symbol Quality for this
output to function.
Serial Cmd:
< K811, output on,output state,pulse width,output mode>
Serial Cmd: < K781, trend analysis mode,trigger evaluation period,number to output on>
Serial Cmd: < K801, output on symbol contrast,symbol contrast threshold,output on print
growth,print growth threshold,output on axial non-uniformity,axial non- uniformity
threshold,output on UEC,UEC threshold>
