Morphological Operation and Operator Size

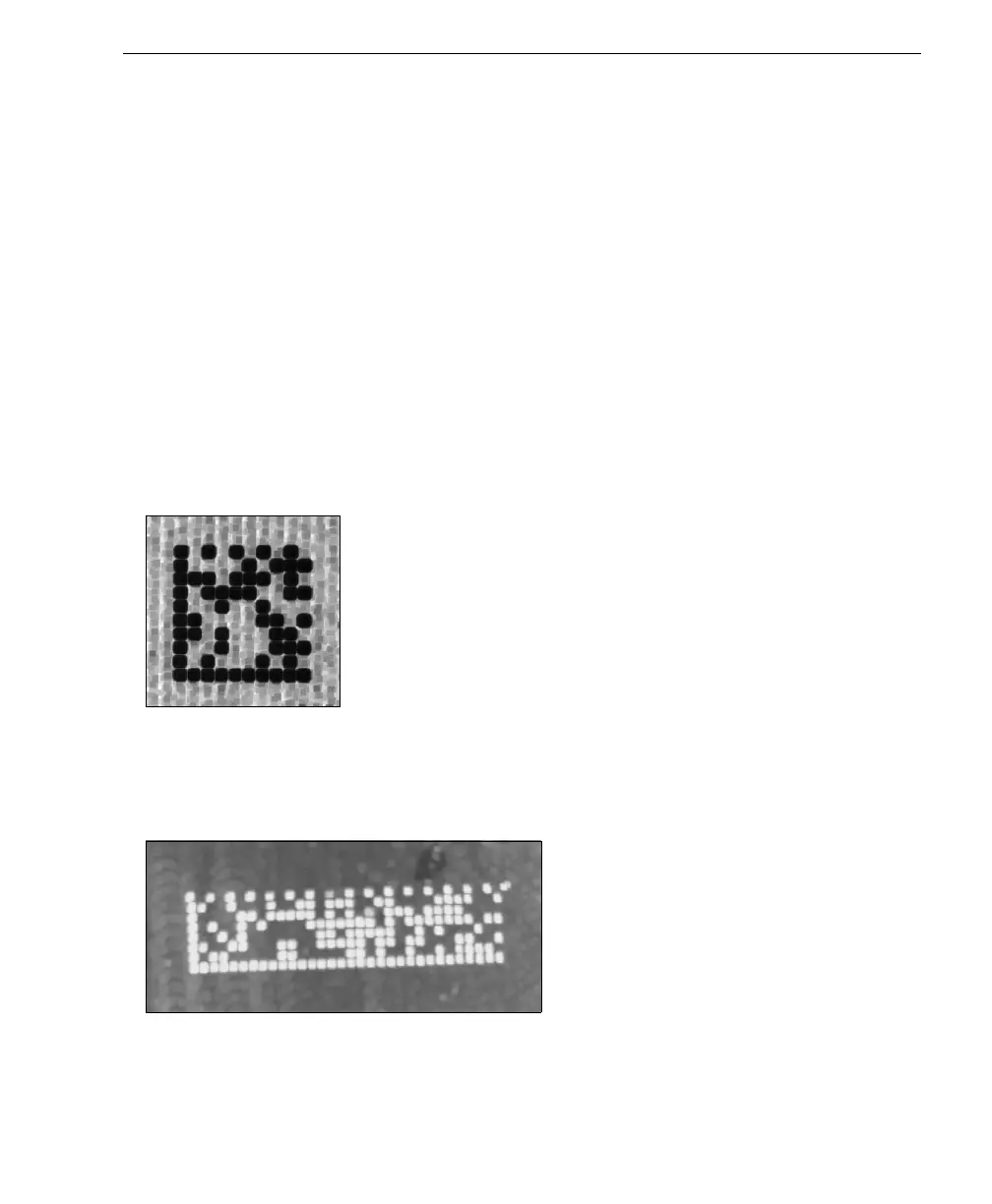

Morphological Operation
Erode (Grow Dark)
Erode increases the dark cell size of a symbol. Useful for increasing the dark cell size of a
dark-on-light Data Matrix symbol.
Dilate (Shrink Dark)
Dilate increases the light cell size of a symbol. Useful for increasing the light cell size of a
light-on-dark Data Matrix symbol.
Definition:
Morphological Operation allows the user to select the method for processing
captured images.
Serial Cmd: <K551,0,morphological operation,operator size>
Default: Grow Dark
Options: 0 = Grow Dark
1 = Shrink Dark
2 = Connect Dark
3 = Separate Dark
