1-8 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
Configure Read Cycle Settings
Step 7 — Configure Read Cycle Settings

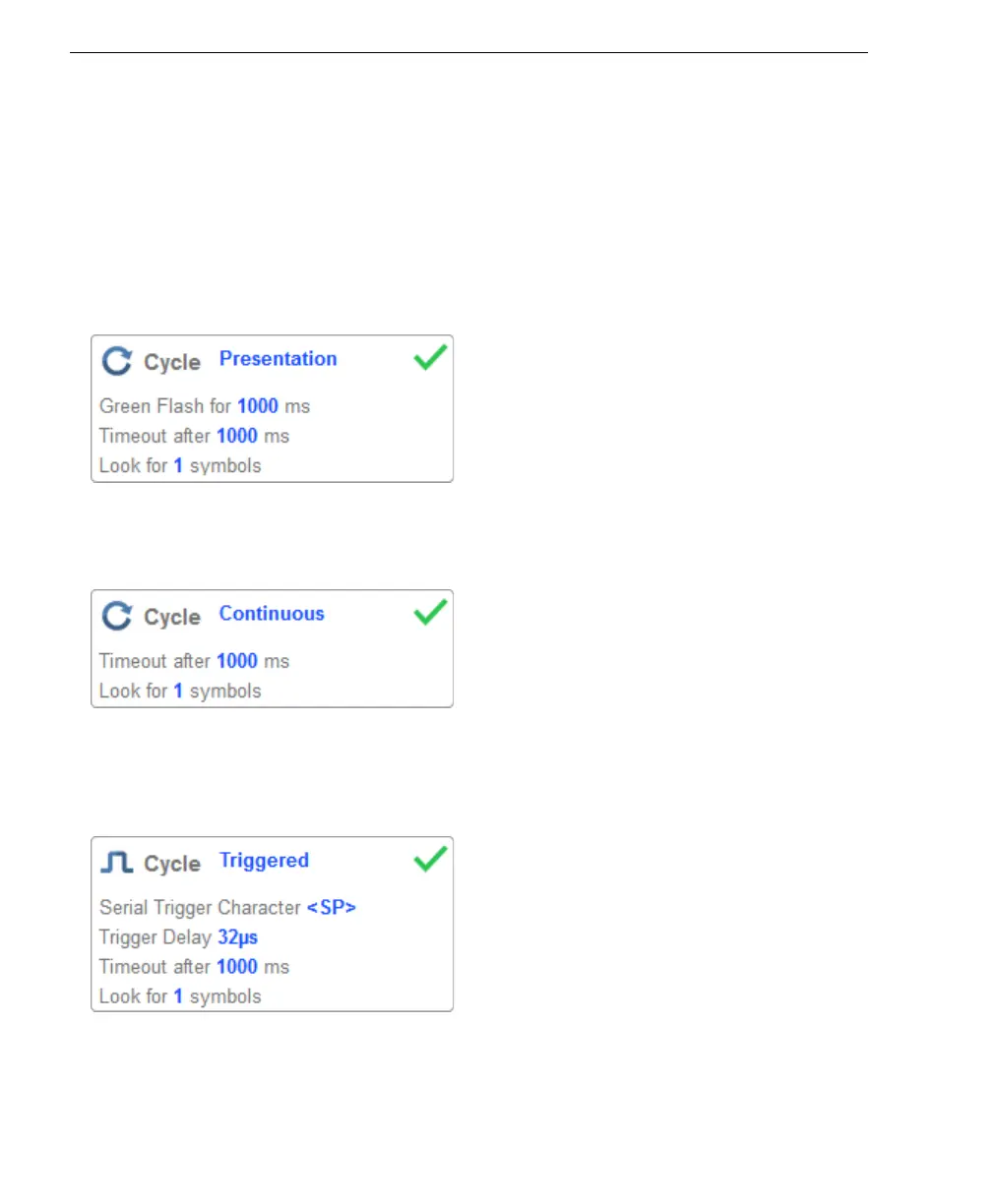

The Cycle section of the Setup view allows you to modify the trigger, determine the number
of symbols for the reader to expect, and set Read Cycle Timeout. A dropdown menu of
various Cycle types provides a variety of options, each with configurable parameters.
Presentation
This mode uses Continuous Read Auto along with Continuous Capture Mode and a
Timeout at End of Read Cycle. Green Flash Mode is set to Static Presentation and the
Green Flash Duration is set to 1 second.
Continuous
This mode allows you to set the Read Cycle Timeout and the expected Number of
Symbols from 1 to 100.
Triggered
This mode sets the read cycle to Serial Data and Edge, End of Read Cycle is set to
Timeout or New Trigger, and Capture Mode is set to Rapid Capture with 1 capture.
You can adjust the Serial Trigger, Trigger Delay, Timeout, and Number of Symbols.
