Auto Focus Multi Code Reader V430-series User’s Manual (Z392) 7-55

I/O Parameters

Diagnostics Output 3

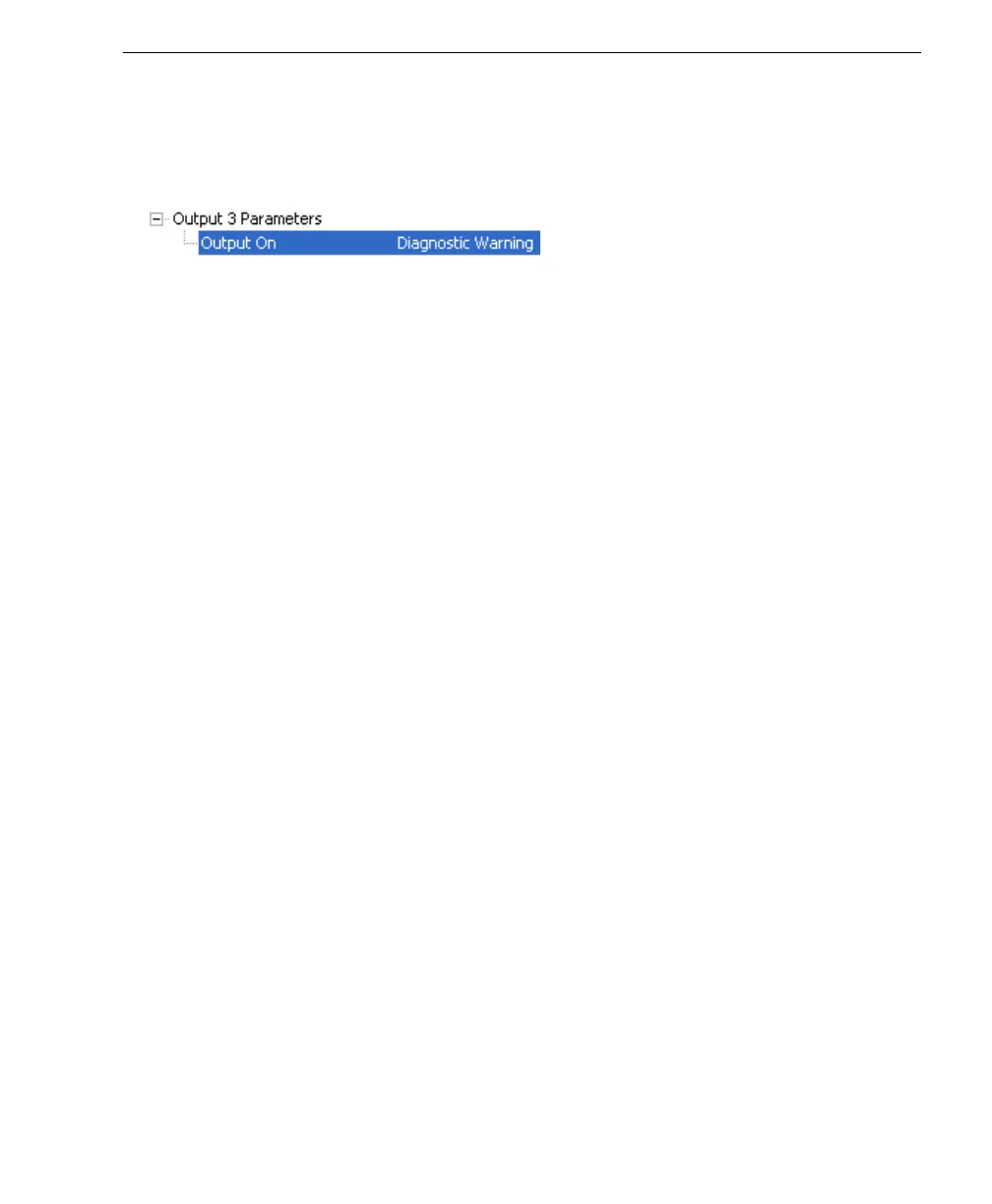

Note: Output On under Output 3 Parameters must be set to Diagnostic Warning for

this output to function.

Serial Cmd: <K792,unused 1,service unit>
