ISO/IEC 15415 Symbol Quality Output 2
ISO/IEC 15415 Symbol Quality Output 2

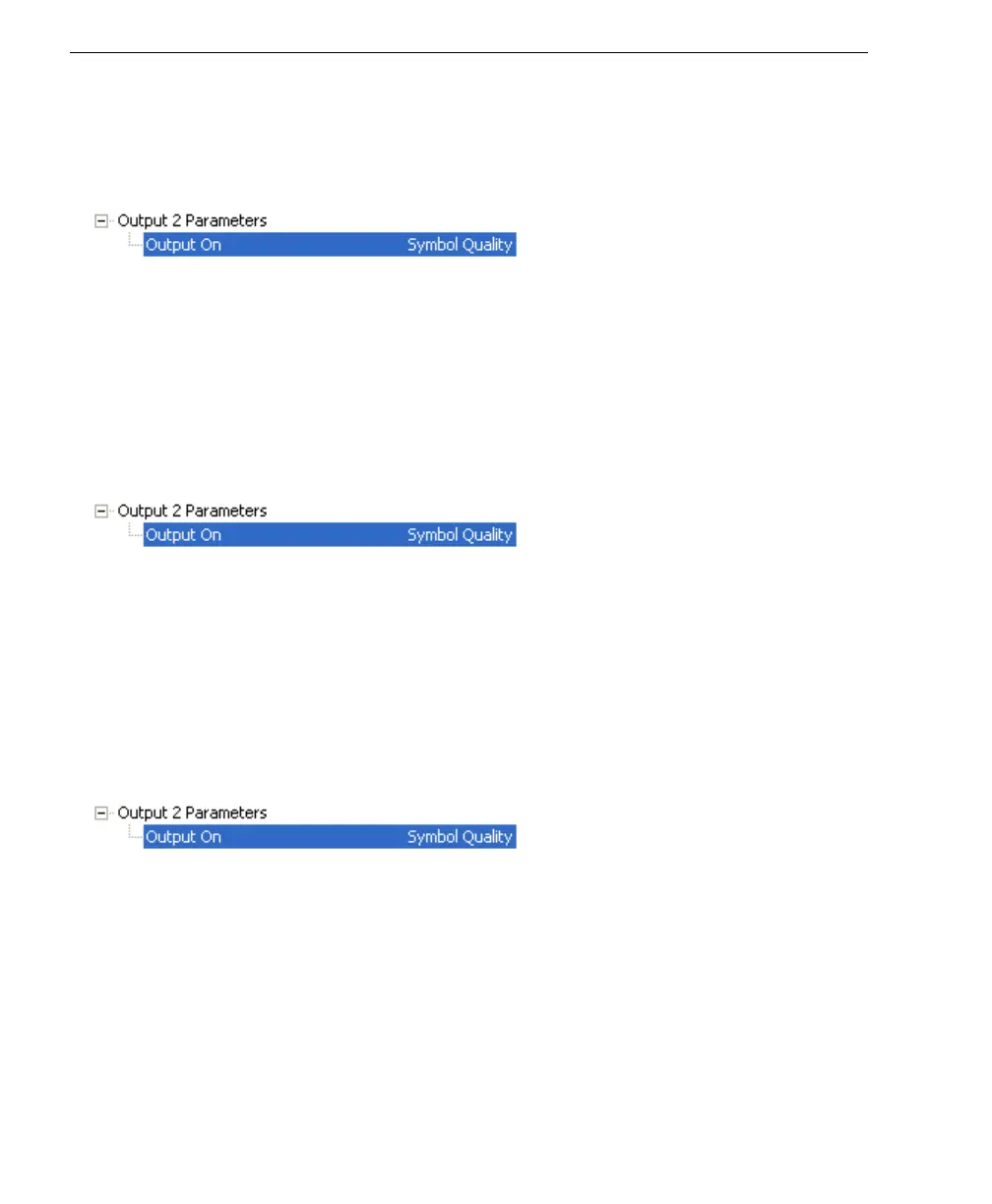

Note: Output On under Output 2 Parameters must be set to Symbol Quality for this
output to function.
ISO/IEC 15416 Symbol Quality Output 2
Note: Output On under Output 2 Parameters must be set to Symbol Quality for this
output to function.
ISO/IEC 29158 Symbol Quality Output 2
Note: Output On under Output 2 Parameters must be set to Symbol Quality for this
output to function.
Serial Cmd:
< K871 , output on overall grade, overall grade threshold, symbol contrast, sym-
bol contrast threshold, modulation, modulation threshold, reflectance margin,
reflectance margin threshold, fixed pattern damage, fixed pattern damage
threshold, axial non-uniformity, axial non-uniformity threshold, grid non-unifor-
mity, grid non-uniformity threshold, unused ECC, unused ECC threshold>
Serial Cmd: < K881 , output on overall grade, overall grade threshold, edge determination,
edge determination threshold, decode, decode threshold, contrast, contrast
threshold, min reflectance, min reflectance threshold, min edge contrast, min
edge contrast threshold, modulation, modulation threshold, defects, defects
threshold, decodability, decodability threshold, quiet Zone, quiet zone threshold >
Serial Cmd: < K891 , output on overall grade, overall grade threshold, cell contrast, cell con-
trast threshold, cell modulation, cell modulation threshold, fixed pattern damage,
fixed pattern damage threshold, axial non-uniformity, axial non-uniformity thresh-
old, grid non-uniformity, grid non-uniformity threshold, unused ECC, unused
ECC threshold>
