1-26 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
MicroHAWK ID Part Numbers
Step 9 — Configure the Reader in ESP

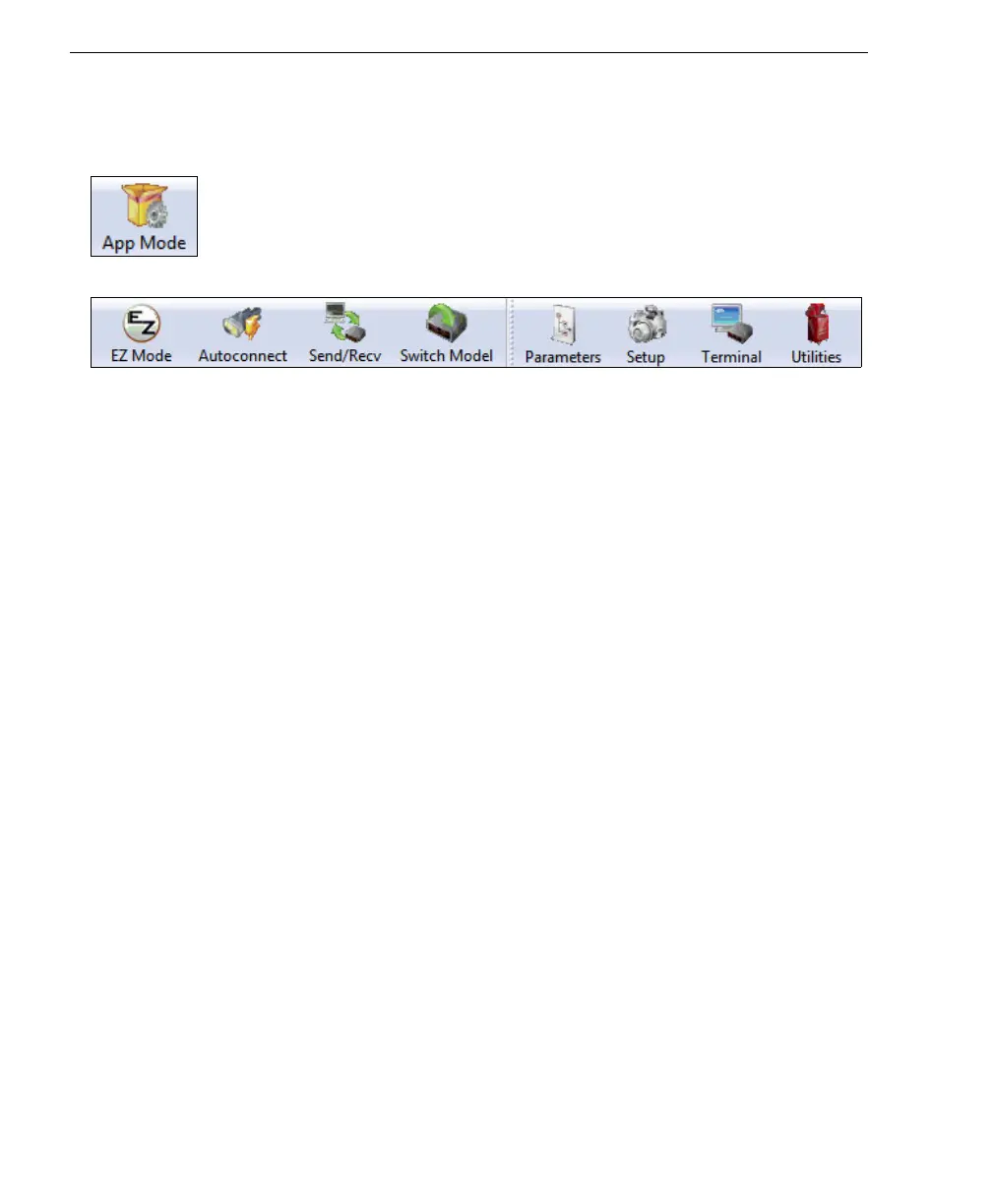

Click the App Mode button to make configuration changes to the V430-series reader.
The following modes are accessible by clicking the buttons in the first row of
App Mode
icons:
• Click EZ Mode to return to EZ Mode from App Mode.
• Click Autoconnect to establish communication (appears as Connect for the V430).
• Click Send/Recv to send or receive commands.
• Click Switch Model to open the model menu, to return to a previous reader model, or to
remove a previous reader model.
• Click Parameters to show the tabbed tree controls for Communication, Read Cycle,
Symbologies, I/O Parameters, Symbol Quality, Matchcode, and Diagnostics.
• Click Setup to access a Camera Setup tree control and the tabbed user interfaces for
Video, Evaluation, Calibration, WOI (Window of Interest), Configuration Database,
Ordered Output, Output Format, and Dynamic Setup.
• Click Terminal to display decoded symbol data and to send serial commands to the
reader using text or macros.
• Click Utilities to access the tabbed user interfaces for Read Rate, Counters, Device
Control, Differences from Default, Master Database, and Firmware.
