7-54 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)

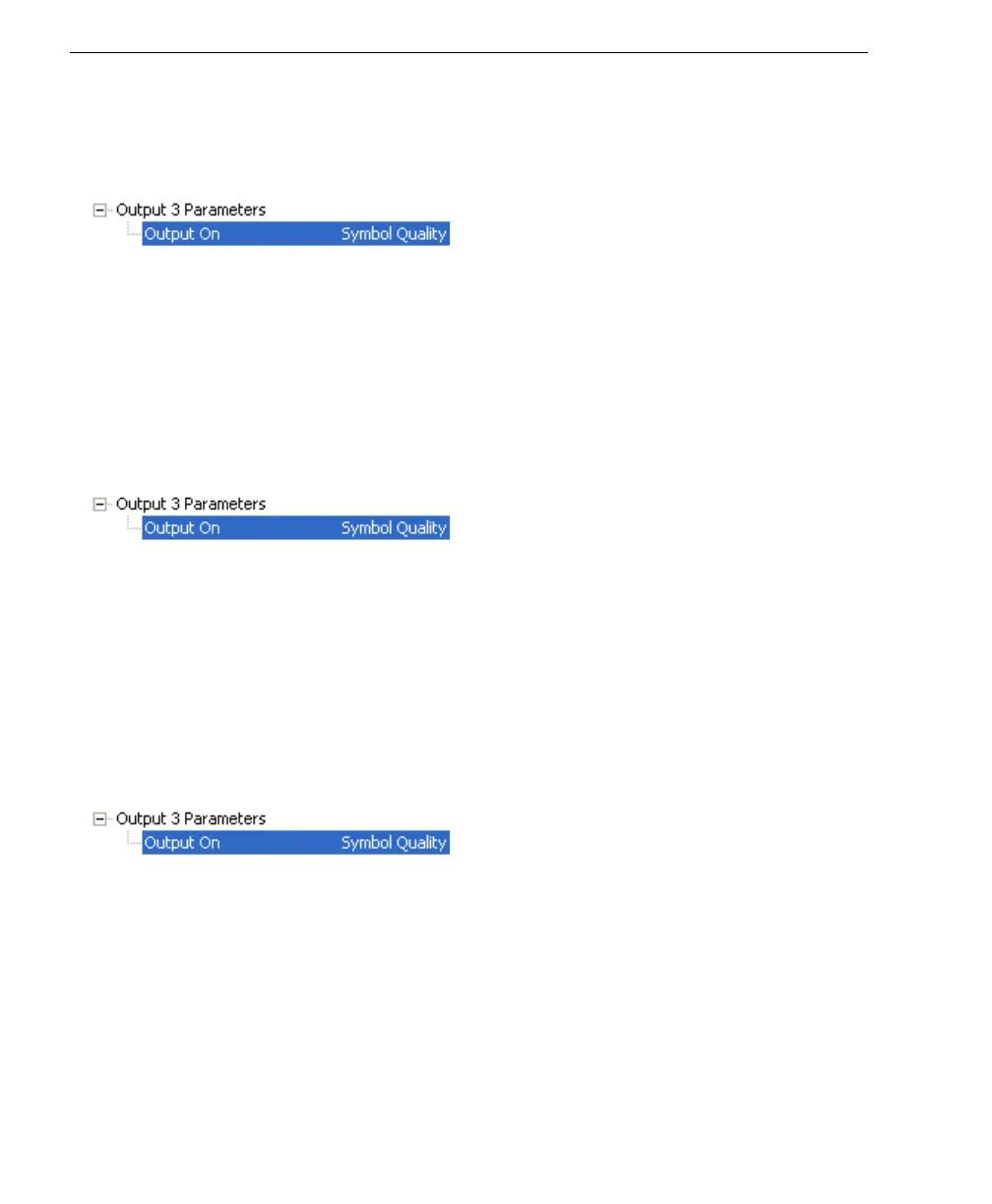

ISO/IEC 15415 Symbol Quality Output 3

Note: Output On under Output 3 Parameters must be set to Symbol Quality for this

output to function.

ISO/IEC 15416 Symbol Quality Output 3

Note: Output On under Output 3 Parameters must be set to Symbol Quality for this

output to function.

ISO/IEC 29158 Symbol Quality Output 3

Note: Output On under Output 3 Parameters must be set to Symbol Quality for this

output to function.

Serial Cmd:

K872

, output on overall grade, overall grade threshold, symbol contrast,

symbol contrast threshold, modulation, modulation threshold, reflectance mar-

gin, reflectance margin threshold, fixed pattern damage, fixed pattern damage

threshold, axial non-uniformity, axial non-uniformity threshold, grid non-unifor-

mity, grid non-uniformity threshold, unused ECC, unused ECC threshold>

Serial Cmd:

K882

, output on overall grade, overall grade threshold, edge determination,

edge determination threshold, decode, decode threshold, contrast, contrast

threshold, min reflectance, min reflectance threshold, min edge contrast, min

edge contrast threshold, modulation, modulation threshold, defects, defects

threshold, decodability, decodability threshold, quiet Zone, quiet zone thresh-

old >

Serial Cmd:

K892

, output on overall grade, overall grade threshold, cell contrast, cell con-

trast threshold, cell modulation, cell modulation threshold, fixed pattern dam-

age, fixed pattern damage threshold, axial non-uniformity, axial non-uniformity

threshold, grid non-uniformity, grid non-uniformity threshold, unused ECC,

unused ECC threshold>
