7-30 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
ISO/IEC 15415 Symbol Quality Output 1
ISO/IEC 15415 Symbol Quality Output 1

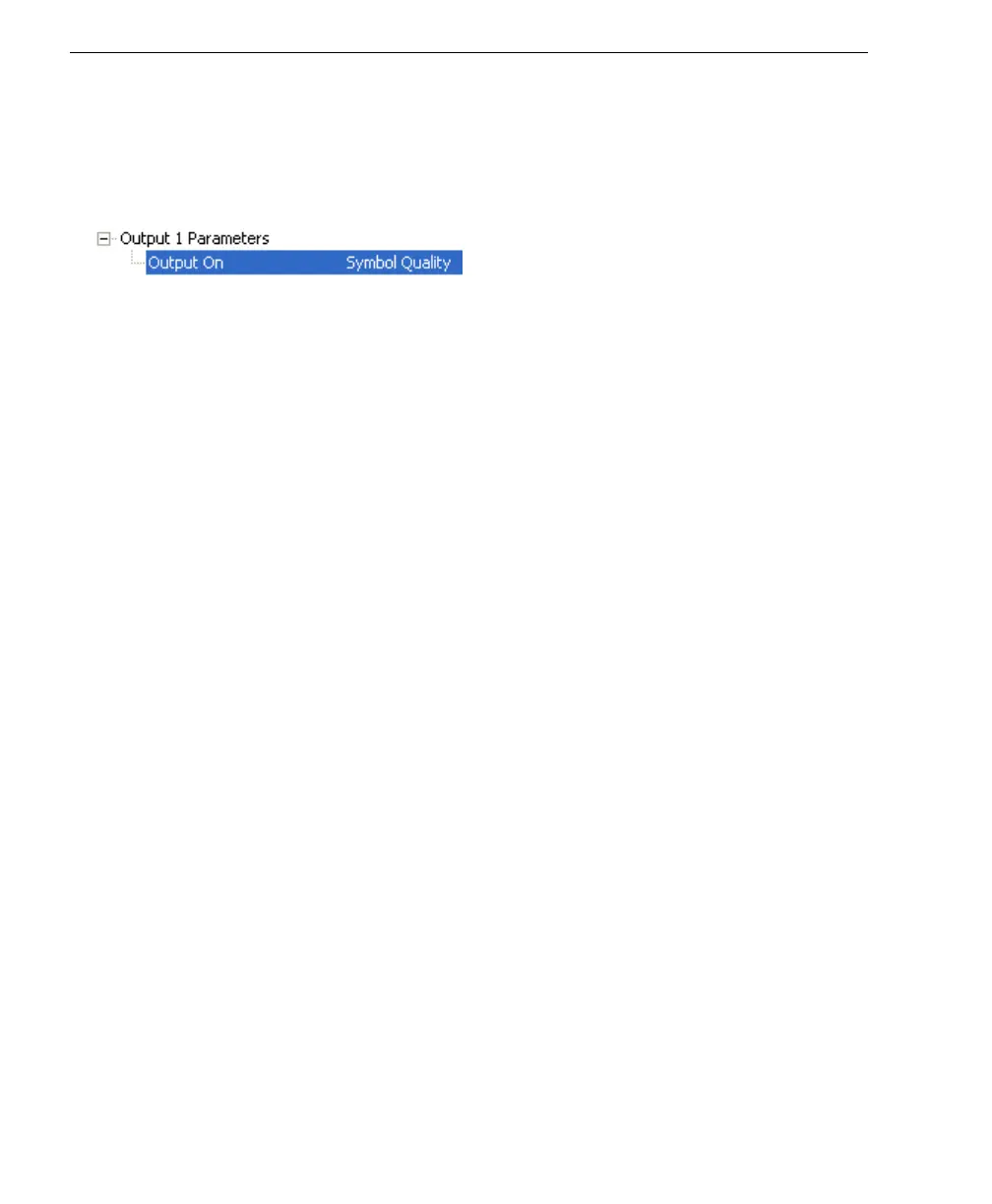

Note: Output On under Output 1 Parameters must be set to Symbol Quality for this output
to function.
Bar code symbol print quality test specification - 2D Symbols
Supported symbologies:
Minimum Resolution: 6.0 Pixels Per Element
Output on Overall Grade
Overall Grade Threshold
• DataMatrix ECC200
• QR Code
Usage: Lets the user know if symbol quality is less than acceptable.
Definition: If enabled, drives Output if grade is under Overall Grade Threshold.
Serial Cmd: <K870, output on overall grade, overall grade threshold, symbol contrast,
symbol contrast threshold, modulation, modulation threshold, reflectance
margin, reflectance margin threshold, fixed pattern damage, fixed pattern
damage threshold, axial non-uniformity, axial non-uniformity threshold, grid
non-uniformity, grid non-uniformity threshold, unused ECC, unused ECC
threshold>
Default: Disabled
Options: 0 = Disabled 1 = Enabled
Usage: Sets the threshold for driving the output.
Definition: Conforms to ISO/IEC 15415 symbol quality grading (A,B,C,D).
Serial Cmd: <K870, output on overall grade, overall grade threshold, symbol contrast,
symbol contrast threshold, modulation, modulation threshold, reflectance
margin, reflectance margin threshold, fixed pattern damage, fixed pattern
damage threshold, axial non-uniformity, axial non-uniformity threshold, grid
non-uniformity, grid non-uniformity threshold, unused ECC, unused ECC
threshold>
Default: Grade B
Options: 0 = Grade D
1 = Grade C
2 = Grade B
3 = Grade A
