Auto Focus Multi Code Reader V430-series User’s Manual (Z392) 12-5
Terminal
Macros
Macros can be stored in a macro selection bar, edited in a separate window, and executed
by clicking on the macro name.
When you click on the macro name, the macro is executed in the Terminal window.
If this is a command, it is sent to the reader at the same time that it is displayed.
Editing a Macro

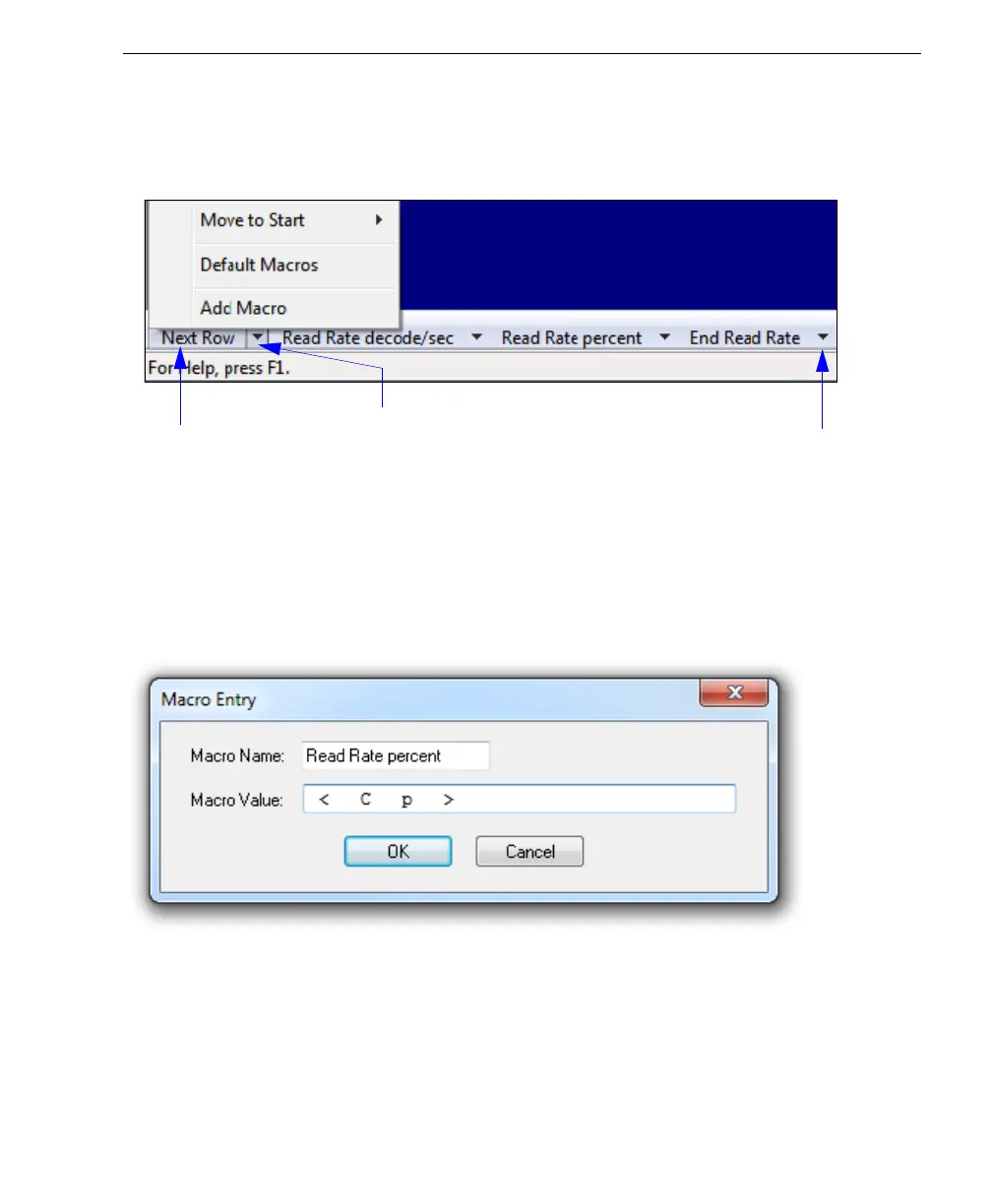

When you click the arrow next to any macro and select Edit, the following appears:
You can edit an existing macro or type in the Macro Name text field and define it in the
Macro Value text field. Click OK.
Click on Next
Row to see
the next row
of macros
Click on the first arrow here to see Add
Macro or Default Macros.
When macros are defaulted, the entire
macro set is restored to the original macro
commands.
Click on subsequent
arrows to edit macros.
To Next Page
