Omron V430-F Series - Dynamic Setup

10-14 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)

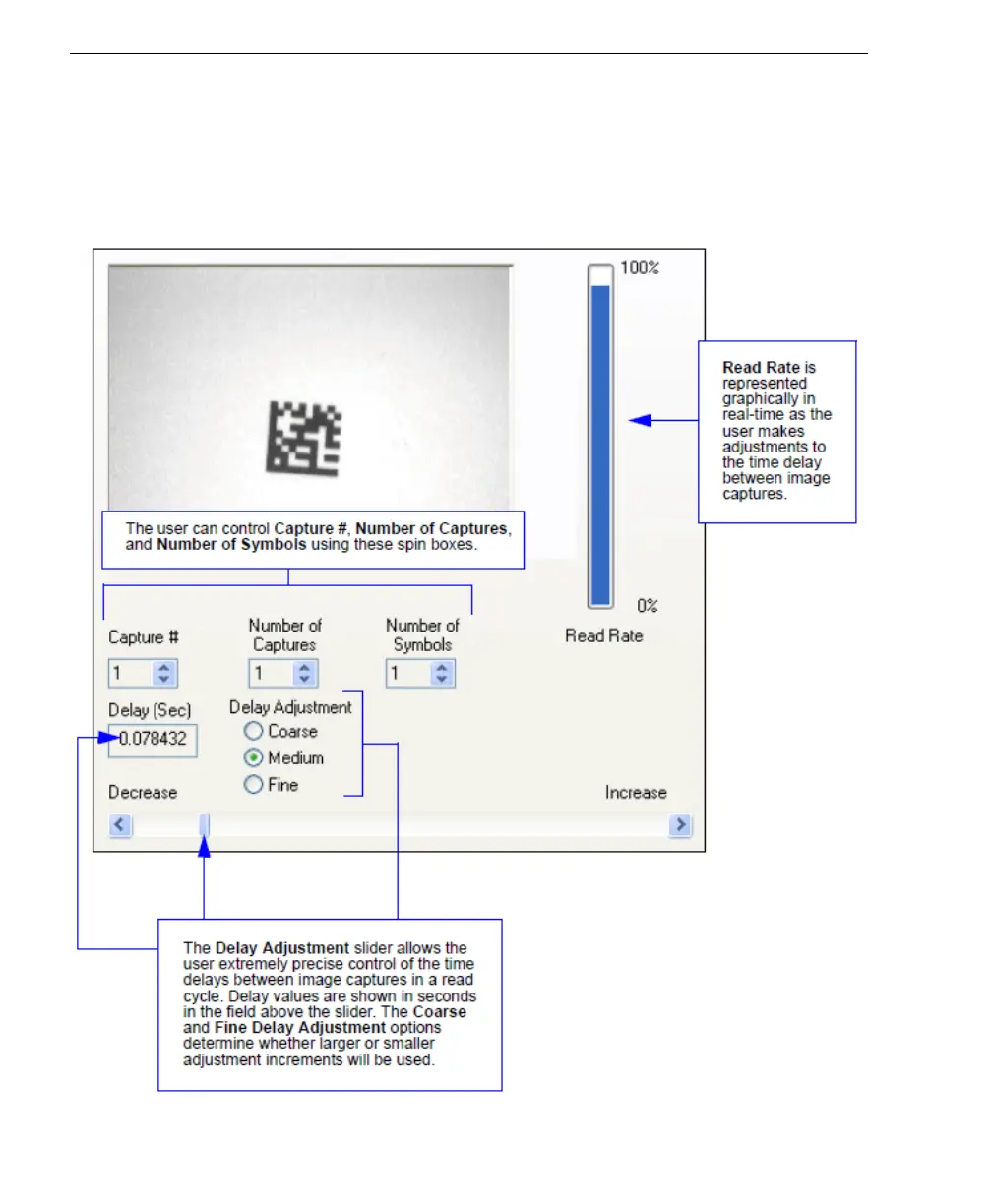

Dynamic Setup
Dynamic Setup
Dynamic Setup is used to calculate image capture timing during a read cycle. Without
proper timing, the reader will not be able to decode all symbols in a read cycle. An external
trigger is used to activate image captures so the user can make timing adjustments as
capture events occur.
